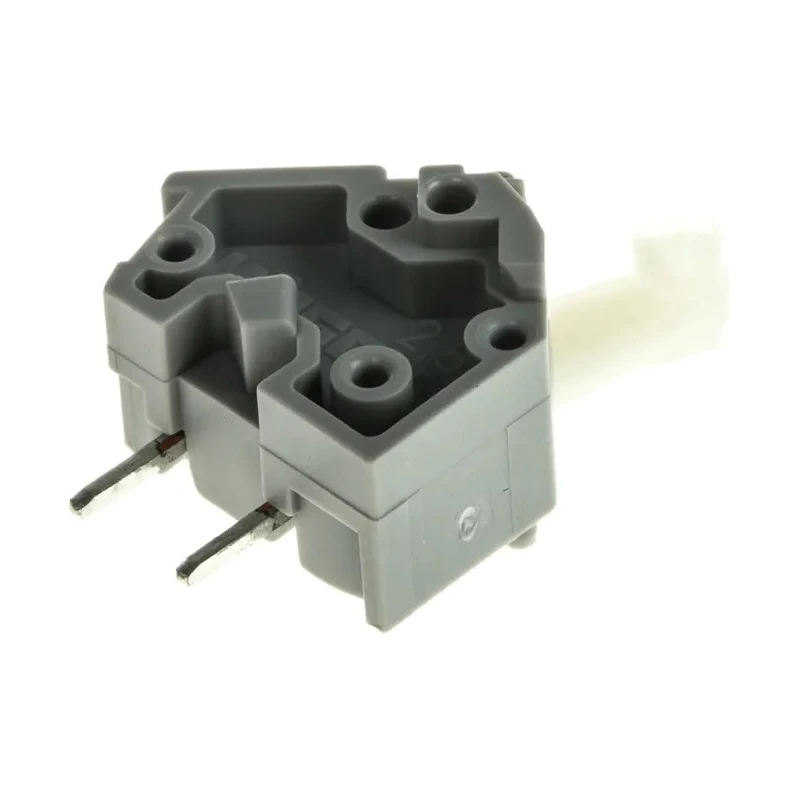

WAGO PCB Terminal Block 1-Contact, 1 Row, 320V, 24A, Polyamide Housing, Cage Clamp 256-501
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 320V |
| Brand | WAGO |
| Colour | Grey |
| Current | 24A |
| Model | 256-501 |
| Depth | 17.6mm |
| Width | 10.3mm |
| Housing Material | Polyamide |
| Series | 256-501 |
| Number of Rows | 1 |
| Number of Contacts | 1 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Cage Clamp |
| WAGO 256 Series PCB Terminal Block, 1-Contact, Through HoleBrand | WAGO |
Key Features
- Features a single contact and single row design for compact applications.
- Constructed from durable polyamide housing for excellent electrical insulation.
- Utilizes cage clamp wire connection method for secure and tool-free wire retention.
- Supports wire sizes from 0.08mm² (28 AWG) up to 2.5mm² (14 AWG).

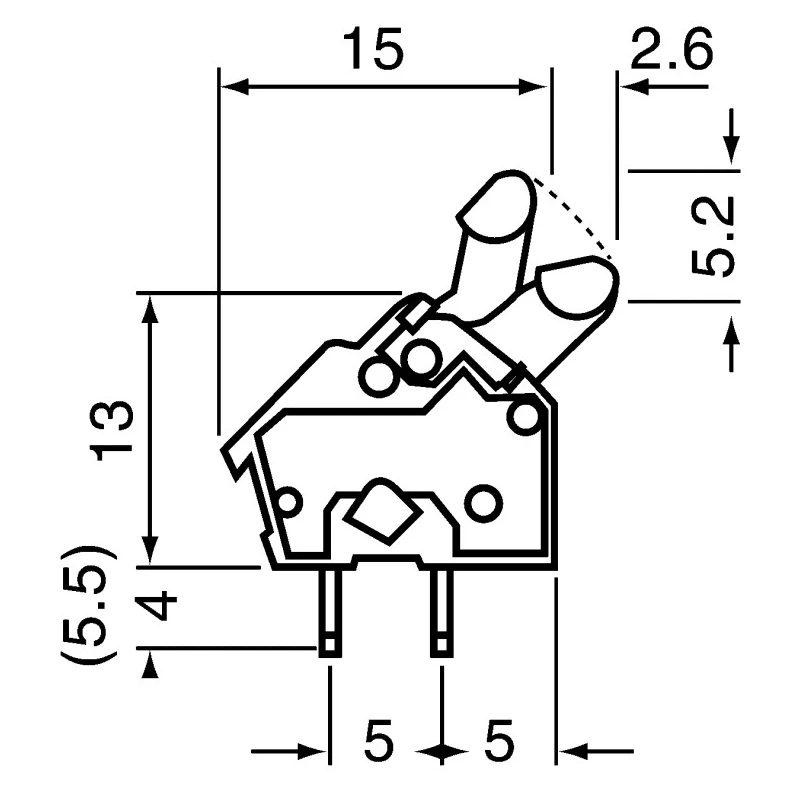

- Offers a grey color housing with a width of 10.3mm and depth of 17.6mm for easy PCB mounting.
- Designed for through-hole mounting with sturdy solder pins to ensure reliable PCB connection.
- Suitable for industrial and commercial PCB assembly and wiring applications.
- Manufactured in Switzerland ensuring high quality and durability.
Product Description
WAGO 256-501 PCB Terminal Block is a robust electrical connector designed for printed circuit board applications. The model 256-501 features a single contact and a single row configuration, rated for 320 volts and a current capacity of 24 amperes.
Manufactured with a polyamide housing, this terminal block ensures excellent electrical insulation and mechanical strength. Its grey colour offers a professional industrial appearance suitable for various electronic assemblies.
The terminal utilizes an advanced cage clamp wire connection method, providing a secure and tool-free way to retain wires ranging from minimum 0.08mm² (28 AWG) to maximum 2.5mm² (14 AWG). The modular design allows for efficient and straightforward wire-to-board connections. It is engineered for through-hole mounting with durable solder pins, guaranteeing a reliable electrical interface with the PCB.
Single contact, single row terminal block for efficient PCB wiring. Rated current of 24A and voltage of 320V for reliable performance. Polyamide housing provides excellent insulation and mechanical durability. Cage clamp technology enables tool-less wire connection and secure retention.
Accommodates a wide wire size range (0.08mm² to 2.5mm²). Gray color and compact dimensions (10.3mm width, 17.6mm depth) for versatile installation. Manufactured in Switzerland to high industrial standards.
This terminal block series is widely used in industrial automation, electronic manufacturing, and power distribution boards. Its modular and adaptable design makes it ideal for projects requiring secure and repeatable wire connections to PCBs.
Explore WAGO products in the Pluggable Terminal Blocks category on EnvMart for comprehensive solutions in electrical connection technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The WAGO PCB Terminal Block 256-501 is rated for a voltage of 320V and a current capacity of 24A.
It supports wire sizes ranging from 0.08mm² (28 AWG) to 2.5mm² (14 AWG).
The housing is constructed from polyamide, providing excellent electrical insulation and mechanical strength.
The terminal block has a width of 10.3mm and a depth of 17.6mm, making it suitable for compact applications.
It utilizes a cage clamp wire connection method, allowing for secure and tool-free wire retention.
This model features a single contact and a single row design, optimized for efficient PCB wiring.
Yes, it is designed for through-hole mounting with durable solder pins for reliable PCB connection.
It is manufactured in Switzerland, ensuring high quality and durability.
The housing of this terminal block is grey, providing a professional appearance for industrial applications.
It is suitable for industrial automation, electronic manufacturing, and power distribution boards.
The connector gender of this model is male, designed for secure connections.
This terminal block is part of the WAGO 256 series, known for its modular design and reliable connections.
