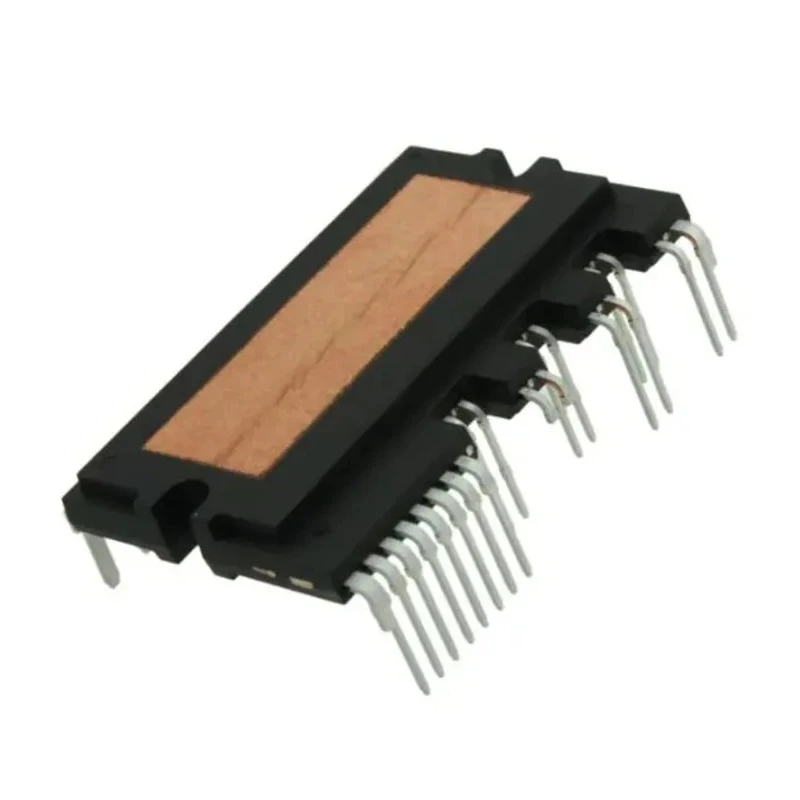

onsemi Power Factor Pre-Regulator Circuit IC Through Hole 20 kHz Switching Frequency 27-Pin SPMIC FPAB30BH60B
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 5.7mm |
| Length | 44.2mm |
| Model | FPAB30BH60B |
| Mount Type | Through Hole |
| Series | FPAB30BH |
| Maximum Operating Temperature | 150°C |
| Package Type | SPMIC |
| Sub Type | Power Factor Pre-Regulator Circuit |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 20kHz |
| Pin Count | 27 |
| Supply Current | 26mA |
| Start-up Supply Current | 60A |
| Maximum Sink Current | 5mA |
| Isolation Rating | 2500 Vrms/min |
Key Features
- The IC features a 20 kHz switching frequency optimized for power factor correction.
- It contains built-in gate drive and multiple protection features for reliable operation.
- Operating temperature range is from -40°C to 150°C, suitable for demanding environments.
- Through hole mount type ensures easy integration in industrial and consumer electronics.
- Includes a full-wave bridge rectifier and high-performance output diode for space savings.
- Isolation rating of 2500 Vrms/min enhances safety and performance in power applications.
- Low thermal resistance using Al2O3 DBC substrate improves heat dissipation efficiency.
- Ideal for consumer, medical, and industrial power management applications.
Product Description
onsemi FPAB30BH60B Power Factor Pre-Regulator Circuit IC is a high-quality, advanced PFC SPM® 3 module designed to provide a fully-featured and efficient Boost Power Factor Correction input power stage. Operating at a 20 kHz switching frequency, this 27-pin package integrates optimized gate drive for the built-in IGBT, minimizing EMI and power losses while enhancing performance.
Featuring multiple on-module protections, including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting, FPAB30BH60B offers exceptional reliability in consumer, medical, and industrial applications requiring precise power regulation. The inclusion of a full-wave rectifier and high-performance output diode within the module further reduces component count and saves PCB space.
Engineered for robust operation, it supports a wide operating temperature range from -40°C to 150°C and meets an isolation rating of 2500 Vrms per minute, ensuring safety in high-voltage environments. Its low thermal resistance Al2O3 DBC substrate construction allows effective heat dissipation, enhancing longevity and stable operation under heavy loads.
Through-hole mounting facilitates installation into standard industrial and consumer power systems. This module is highly suited for motion control and power factor correction in appliances, industrial motors, and other power management circuits.
The IC operates at a switching frequency of 20 kHz for optimized PFC performance. Includes comprehensive onboard protections for stable and safe operation. Designed with a full-wave bridge rectifier and output diode for integration efficiency.
Wide temperature range supports harsh industrial and medical usage conditions. Low thermal resistance construction ensures optimal thermal management. 27-pin SPMIC package supports through-hole mounting for easy PCB assembly.
Isolation rating guarantees secure operation in AC power environments. Applications include industrial, medical, consumer power control systems, and motor drives. Explore EnvMart's extensive range of power management ICs and components to complement your design projects and engineering requirements.
Explore more products in our Power Factor Controller IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FPAB30BH60B operates at a switching frequency of 20 kHz, optimized for power factor correction applications.
This model supports an operating temperature range from -40°C to 150°C, making it suitable for demanding environments.
The FPAB30BH60B features a 27-pin configuration, designed for through-hole mounting.
It supports through-hole mounting, facilitating easy integration into various electronic systems.
This IC includes multiple protection features such as under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting for reliable operation.
The isolation rating for this model is 2500 Vrms/min, enhancing safety in power applications.
This power factor pre-regulator circuit IC has a height of 5.7 mm.
The length of this model is 44.2 mm.
The supply current for this IC is 26 mA.
This model is suitable for consumer, medical, and industrial power management applications, particularly in motion control and power factor correction.
It uses an Al2O3 DBC substrate, which provides low thermal resistance and improves heat dissipation efficiency.
The maximum sink current for this power factor pre-regulator circuit IC is 5 mA.
