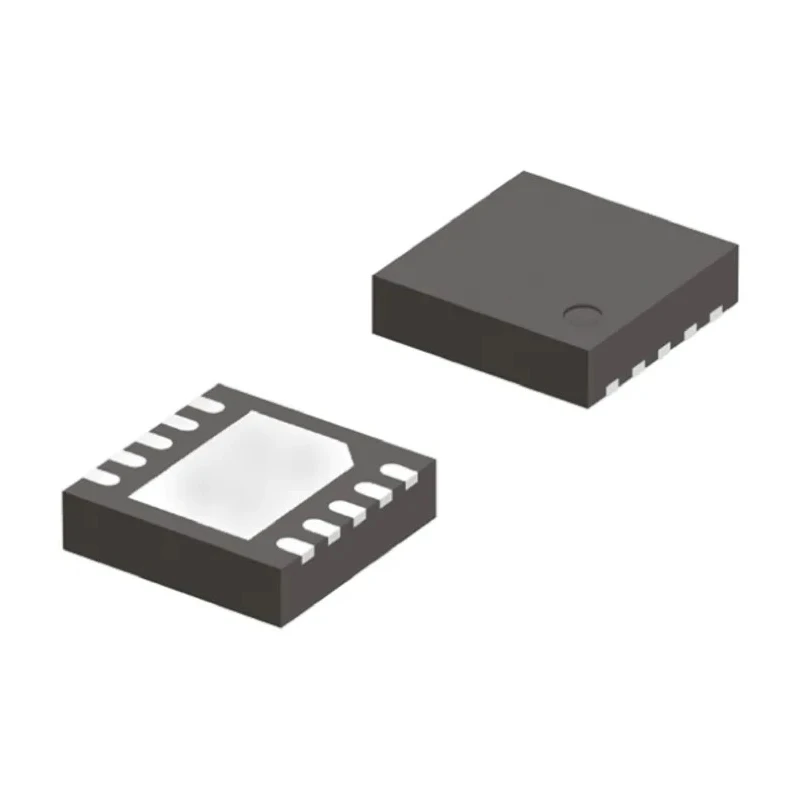

onsemi Power Factor Controller IC 1 MHz 10-Pin DFN 25V NIS5132MN2TXG

onsemi NIS5132MN2TXG Power Factor Controller IC is a surface-mount device designed for efficient power factor correction applications in electronics and electrical systems.

This IC operates at a switching frequency of 1 MHz and is housed in a compact 10-pin DFN package measuring 3 mm in length and 950 μm in height, making it ideal for space-constrained designs.

Its maximum supply voltage rating is 25V, and it supports a supply current of 3.6A, ensuring robust performance in demanding environments. The device works reliably over a broad temperature range from -40°C to 150°C, making it suitable for industrial, automotive (non-automotive certified), and commercial applications.

The NIS5132MN2TXG features an internal charge pump, eliminating the need for an external current shunt, simplifying circuit design. It includes programmable elements such as a resistor to set current limit levels and a capacitor to control the slew rate of the output during turn on, supporting custom performance tuning.

With a maximum sink current of -25μA and a minimum supply voltage of -0.6V, this IC guarantees precise voltage and current management, enhancing power efficiency and contributing to energy savings.

Typical applications include power management in consumer electronics, industrial equipment, and power supplies where power factor correction is essential for compliance and efficiency.

Operates at 1 MHz switching frequency for fast power correction. Compact 10-pin DFN surface mount package for space-saving PCB design. Wide temperature tolerance from -40°C to 150°C for reliable operation. Integrated charge pump and configurable current limit and slew rate.

Robust voltage and current management supporting up to 25V supply. Suitable for industrial, commercial, and some automotive electronic applications. Explore more solutions in power factor correction and power management ICs at EnvMart.
