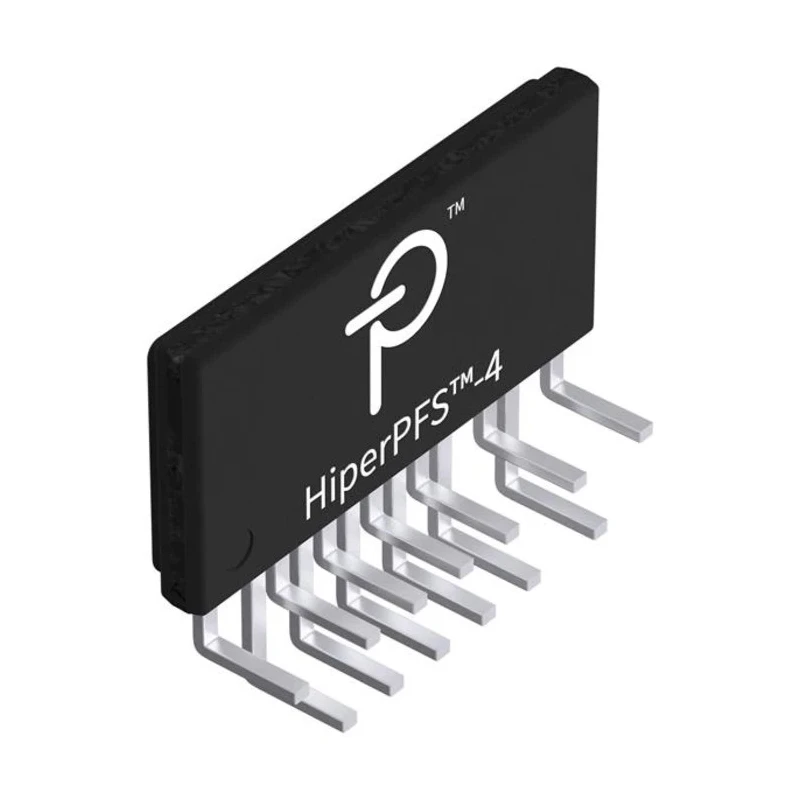

Power Integrations PFC Controller 60 kHz 16-Pin Plastic eSIP 12V PFS7725H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Height | 1.96mm |
| Length | 16mm |
| Model | PFS7725H |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | Plastic eSIP |
| Sub Type | Power Factor Controller |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 60kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 5V |
| Supply Current | 23A |
| Protection features include | UVLO, UV, OV, OTP, brown-in/out, cycleby-cycle current limit and power limiting for overload protection |
Key Features
- Operates with a supply current of 23A ensuring robust performance.
- Supports a supply voltage range from 5V minimum to 12V maximum.
- Designed for surface mount with a low profile 16 mm length and 1.96 mm height package.
- Operates reliably within a temperature range from -40°C to 150°C.
- Includes advanced protection features such as UVLO, UV, OV, OTP, brown-in/out, cycle-by-cycle current limit, and power limiting for overload protection.
- Compatible with high voltage inputs up to 305 VAC steady-state and 410 VAC abnormal input.
- Eliminates need for external current sense resistors, reducing power loss.
- Features digital line peak detection and spread spectrum to simplify EMI filtering.
Product Description
Power Integrations PFS7725H is a PFC Controller featuring a 60 kHz switching frequency and comes in a 16-pin Plastic eSIP package designed for surface mounting. It operates with a supply current of 23A and supports a supply voltage range from 5V to 12V. This controller is optimized for achieving high power factor and efficiency across varying load ranges, making it ideal for power management IC applications in electronics industries.
The device integrates advanced features such as digital line peak detection for robust performance in environments with distorted input voltage sources like UPS or generators. It further includes a digital power factor enhancer that compensates for EMI filter and bridge distortion. Additionally, its spread-spectrum function over a 60 kHz window facilitates simplified EMI filtering.
Protection mechanisms incorporated in the PFS7725H include undervoltage lockout (UVLO), undervoltage and overvoltage protection (UV, OV), over-temperature protection (OTP), brown-in and brown-out detection, cycle-by-cycle current limiting, and power limiting to prevent overload conditions. These features enhance device durability and operational safety.
The controller withstands steady-state inputs up to 305 VAC and abnormal inputs of up to 410 VAC. Its design eliminates the need for an insulating pad or heat-spreader, allowing more compact assembly.
Operates at 60 kHz switching frequency with a 16-pin Plastic eSIP package. Robust supply current of 23A for consistent operation. Wide supply voltage range of 5V to 12V supports varied applications. Functional temperature range from -40°C to 150°C.
Comprehensive protection features safeguard against electrical and thermal faults. Designed to eliminate external components that contribute to power loss. Incorporates digital features enhancing power factor and EMI performance.
Suitable for industrial power factor correction in electronic power management.
This Power Integrations PFS7725H PFC Controller is ideal for industrial, manufacturing, HVAC, and commercial electronic power management use cases demanding efficient power factor correction and reliable control capabilities.
Explore more power factor controllers and power management solutions on EnvMart for your industrial and electronic component needs.
Explore more products in our Power Factor Controller IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PFS7725H operates at a switching frequency of 60 kHz.
It supports a supply voltage range from 5V to 12V.
The maximum supply current is 23A.
The PFS7725H includes protection features such as undervoltage lockout (UVLO), undervoltage (UV), overvoltage (OV), over-temperature protection (OTP), brown-in/out detection, cycle-by-cycle current limiting, and power limiting for overload protection.
It operates reliably within a temperature range from -40°C to 150°C.
This model comes in a 16-pin Plastic eSIP package designed for surface mounting.
The maximum operating voltage is 12V.
The height of this model is 1.96 mm.
The length of this power factor controller is 16 mm.
It is suitable for industrial power factor correction in electronic power management applications.
No, it eliminates the need for external current sense resistors, which reduces power loss.
The PFS7725H is manufactured in India.
