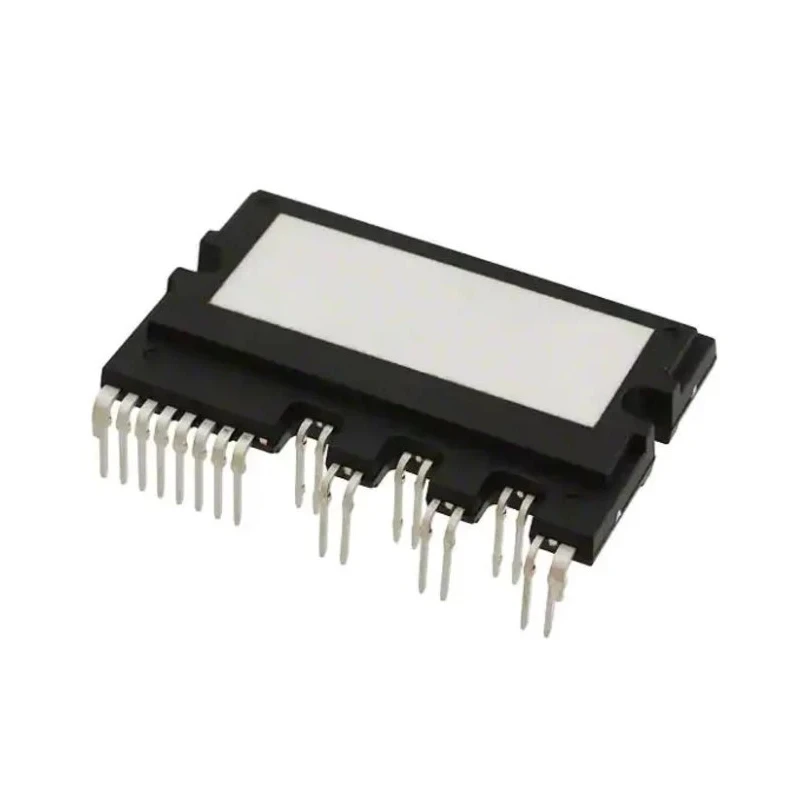

onsemi Power Factor Pre-Regulator Circuit IC Boost PFC 20 kHz 27-Pin 253Vrms FPAB20BH60B
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 5.7mm |
| Length | 44.2mm |
| Model | FPAB20BH60B |
| Mount Type | Through Hole |
| Series | SPM 3 |
| Maximum Operating Temperature | 150°C |
| Package Type | SPMIC |
| Sub Type | Boost PFC |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 20kHz |
| Standards/Approvals | UL No. E209204 (UL1557) |
| Pin Count | 27 |
| Supply Current | 26mA |
| Maximum Sink Current | 5mA |
| Isolation Rating | 2500 Vrms/min |
Key Features
- The IC features a fully integrated Boost PFC input power stage optimized for consumer, medical, and industrial uses.
- It includes an integral gate driver and multiple on-module protections like under-voltage lockout and thermal monitoring.
- Supports low EMI and loss minimization through optimized gate drive of built-in IGBT.
- Features a full-wave bridge rectifier and high-performance output diode for space efficiency.
- Designed for 20 kHz switching frequency with a maximum supply voltage of 253 Vrms.
- Built with a durable Al2O3 DBC substrate offering very low thermal resistance.
- Can operate in environments from -40°C to 150°C for reliability in harsh conditions.
- Mounting is through-hole with a SPMIC package type and 27 pins.
Product Description
onsemi FPAB20BH60B is a Power Factor Pre-Regulator Circuit IC featuring advanced Boost PFC technology with a 20 kHz switching frequency and a robust 27-pin configuration. It operates efficiently with a supply range up to 253 Vrms, making it suitable for various industrial, consumer, and medical power management applications.
This module incorporates a fully integrated gate driver for the built-in IGBT which reduces electromagnetic interference and power losses. Protection features within the IC include under-voltage lockout, over-current shutdown, thermal monitoring via a built-in NTC thermistor, and fault reporting functionalities ensuring safe and reliable performance.
Designed with an Al2O3 DBC substrate, the IC boasts very low thermal resistance that enhances heat dissipation during operation. The inclusion of a full-wave bridge rectifier and a high-performance output diode contributes to space savings and easier mounting, optimizing the overall power management system design.
The FPAB20BH60B supports operation in extreme temperatures from -40°C to 150°C, suitable for harsh industrial environments. With an isolation rating of 2500 Vrms per minute and compliance with UL No. E209204 (UL1557) standards, it assures safety and reliability for critical applications.
Its through-hole mount style and compact 44.2mm by 5.7mm dimensions make it convenient for integration into existing power electronics assemblies. The module is designed for a maximum sink current of 5mA and typical supply current of 26mA at the stipulated switching frequency.
This product serves industries such as industrial motor control, HVAC systems, power supplies, manufacturing equipment, and medical devices requiring precise power factor correction to improve efficiency and reduce harmonic distortion.
The IC offers highly efficient Boost PFC operation for power factor correction. Multiple built-in protection features enhance device safety and longevity. Low thermal resistance substrate supports effective heat management.
Full-wave rectifier and output diode reduce component count and space. Wide operating temperature range covers demanding industrial conditions. Compliance with UL standards guarantees certified safety. Isolation rating supports secure high-voltage applications.
Explore onsemi products and other power management ICs at EnvMart to optimize your electronic designs with reliable, high-performance components.
Explore more products in our Power Factor Controller IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the FPAB20BH60B is 253 Vrms.
This model operates at a switching frequency of 20 kHz.
It can operate in environments ranging from -40°C to 150°C.
This IC uses through-hole mounting.
The dimensions of the FPAB20BH60B are 44.2mm in length and 5.7mm in height.
It includes under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting functionalities.
The isolation rating is 2500 Vrms per minute.
The FPAB20BH60B has a pin count of 27.
The maximum sink current for this model is 5mA.
It complies with UL No. E209204 (UL1557) standards.
This IC is suitable for industrial motor control, HVAC systems, power supplies, manufacturing equipment, and medical devices.
