Fluke Networks Single Mode Fibre Optic Test Kit 1550nm Wavelength USB Interface FTK2000

Free Delivery in India | Lowest Global Shipping Charges

Fluke Networks Single Mode Fibre Optic Test Kit 1550nm Wavelength USB Interface FTK2000

Name: Fluke Networks Single Mode Fibre Optic Test Kit 1550nm Wavelength USB Interface FTK2000
Brand: FLUKE NETWORKS
SKU: 203079
Price: 7083.56 USD
Availability: InStock



Category Fibre Optic Test Equipment Brand FLUKE NETWORKS Condition New

Specifications

Country of Origin	United States
Resolution	0.01 dB
Brand	Fluke Networks
Battery Life	50h
Battery type	2 Alkaline AA cells
Height	165mm
Length	80mm
Wavelength	1550nm
Model	FTK2000
Connector Type	Fixed SC
Gross Weight	325g
Width	39mm
Includes	Power Meter
Maximum Operating Temperature	50°C
Equipment Type	Fibre Optic Test Kit
Cable Type	Single Mode
Minimum Operating Temperature	-10°C
Interfaces	USB Interface to download up to 1000 stored results
Interface Type	USB
Standards/Approvals	IEC

Key Features

Measures absolute optical power and loss with 0.01 dB resolution.
Calibrated for six wavelengths including 1550nm for accurate readings.
Supports power measurements up to 10 dBm for strong signal detection.
Operates on 2 AA alkaline batteries providing over 50 hours of field use.
Equipped with fixed SC connector ideal for singlemode fibre connections.
Stores up to 1000 measurements for later USB data download.
Robust design meets IEC standards and operates between -10°C and 50°C.
Compact and portable with dimensions 165mm×80mm×39mm and weight of 325g.

Product Description

Fluke Networks FTK2000 Single Mode Fibre Optic Test Kit is a compact, battery-powered optical power meter optimized for field technicians working on singlemode fibre optic networks. It operates at a 1550nm wavelength with a power range up to 10 dBm, enabling precise absolute power and loss measurements across industry-standard wavelengths.

This test kit features a fixed SC connector facilitating straightforward singlemode fibre connections. It is powered by 2 AA alkaline batteries, offering an extended battery life exceeding 50 hours for continuous field operations. The device's resolution of 0.01 dB allows exact power comparisons, calibrated at six wavelengths including 1550nm for enhanced measurement accuracy.

Equipped with USB connectivity, the FTK2000 permits storage and export of up to 1000 loss or power measurements, simplifying data management and reporting. It is designed to withstand industrial environments, conforming to IEC standards and functioning reliably within the temperature range of -10°C to 50°C.

Its lightweight design at 325 grams and dimensions of 165mm height, 80mm length, and 39mm width make it highly portable for field use. The unit utilizes an InGaAs detector technology optimized for calibration wavelengths, ensuring reliable and sensitive measurements.

Applications include commissioning and verifying singlemode fibre links in telecommunications, automation systems, and industrial settings. It is suitable for pre-testing fibre runs, maintenance checks, and onsite documentation of fibre loss levels for quality assurance and reporting.

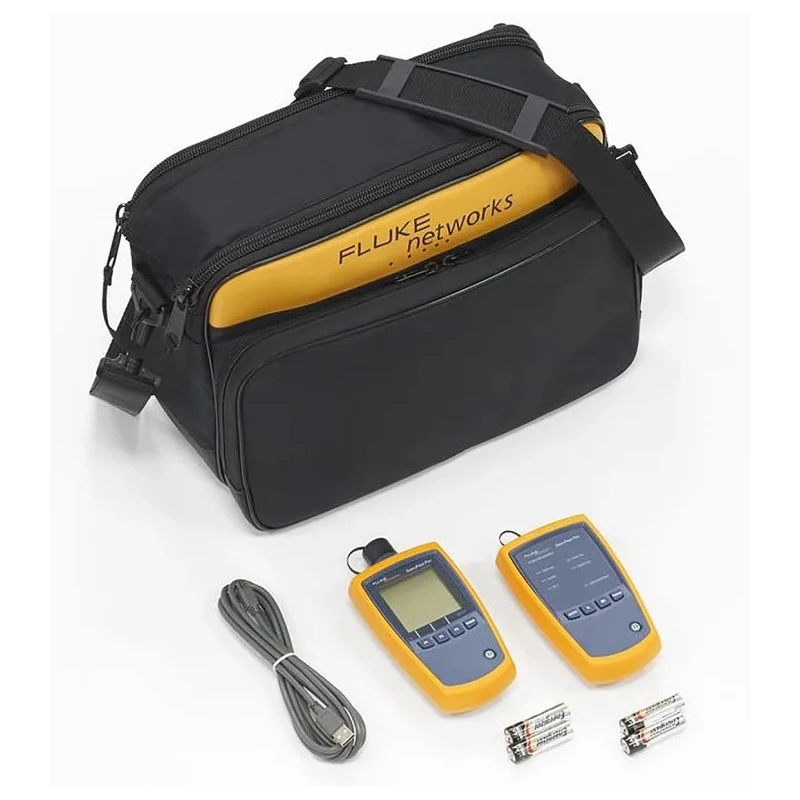

Package includes the FTK2000 Fibre Optic Test Meter with built-in fixed SC connector. Optional adapters for LC or ST connectors are available separately to increase versatility. Measures absolute power and loss with high resolution.

Battery powered with long operational life. USB enabled for data transfer and storage. Compact, lightweight, and rugged design. Calibrated for multiple wavelengths including 1550nm. Suitable for installation, maintenance, and testing of fibre optic networks.
