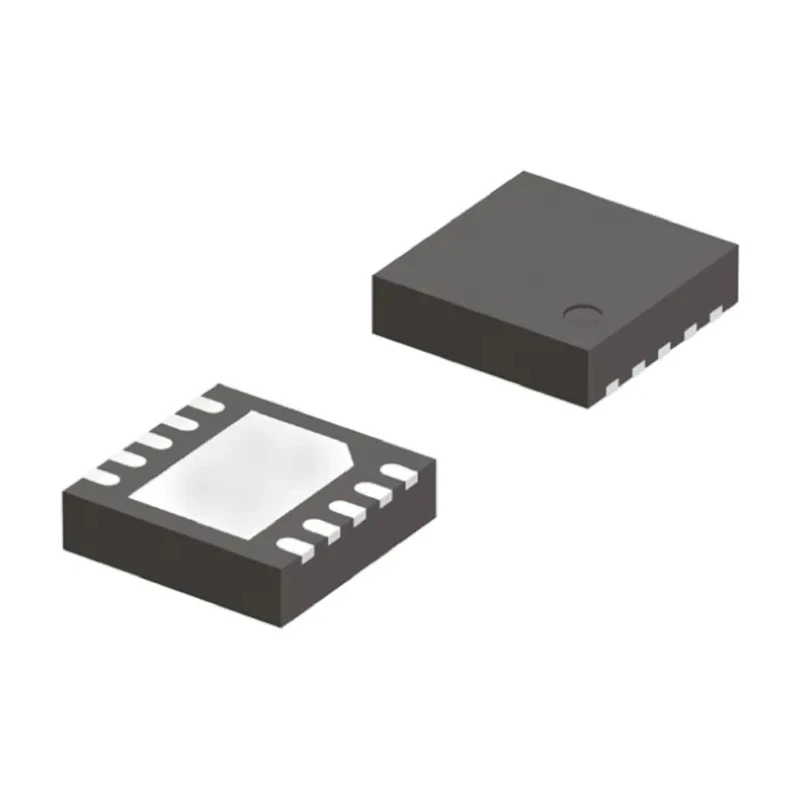

onsemi Power Factor Controller IC 1 MHz 10-Pin Surface Mount DFN Package 25V NIS5132MN2TXG

The onsemi NIS5132MN2TXG is a high-performance Power Factor Controller IC designed for power management and power factor correction applications in industrial and electronic systems. Featuring a 1 MHz switching frequency and a low supply current of 3.6A, this component enables efficient energy use while supporting circuit reliability.

Its surface mount DFN package with a compact 3mm length and 950μm height allows for flexible and compact PCB designs, making it suitable for space-constrained applications. The IC supports a wide operating voltage range up to 25V and functions reliably across a broad temperature range from -40°C to 150°C, ensuring performance stability under harsh environmental conditions.

The device integrates an internal charge pump and requires no external current shunt, which simplifies design complexity and overall system footprint. It can sink a maximum current of -25μA, supporting precise power factor correction functionalities.

Common industrial applications include power factor correction circuits, voltage and current management in power supplies, and other energy-efficient electronic components in manufacturing and automation sectors. Its robust design and thermal performance optimize usage in demanding electronic and power control systems.

Operates at 1 MHz switching frequency with low power consumption. Supports 10-pin DFN package for surface mount technology assemblies. Wide operating temperature range supports industrial applications. Compact physical dimensions aid in efficient PCB layouts.

Internal charge pump improves performance and reduces component count. Designed for power factor correction in electronic power management circuits. Discover more Power Factor Controller ICs and power management solutions on EnvMart for enhanced industrial and commercial electronics designs.
