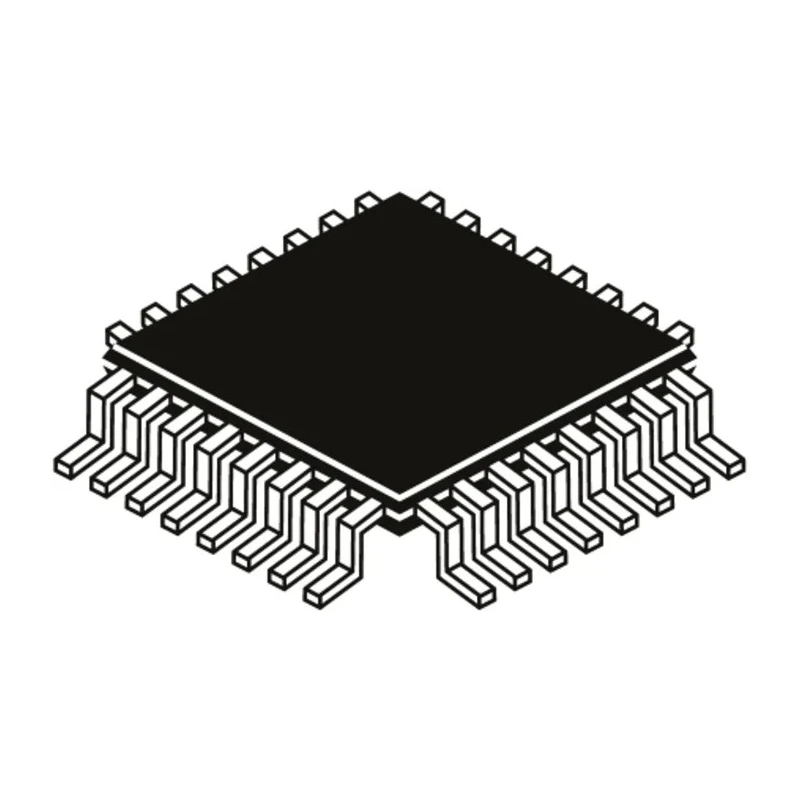

onsemi Power Factor Controller 40 kHz 32-Pin LQFP 30V FAN9673Q
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.45mm |
| Length | 9mm |
| Model | FAN9673Q |
| Mount Type | Surface |
| Series | FAN9673C |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Sub Type | Power Factor Controller |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 40kHz |
| Pin Count | 32 |
| Maximum Supply Voltage | 30V |
| Supply Current | 7mA |
| Start-up Supply Current | 80μA |
| Maximum Source Current | 50μA |
| Maximum Sink Current | -35μA |
Key Features
- The controller supports a maximum supply voltage of 30V.
- Operating temperature range from -40°C to 105°C ensures performance under varying environmental conditions.
- Includes integrated protections such as soft start, over-voltage, open-feedback, over-current, and under-voltage lockout.
- Compact package with 1.45 mm height and 9 mm length facilitates surface mounting.
- Utilizes Continuous Conduction Mode (CCM) and other PFC control methods for efficient power management.
- Low start-up supply current of 80 µA and supply current of 7 mA provide energy-efficient operation.
- Designed and manufactured as a new product for industrial and electronic component applications.
- Compatible with various power management systems requiring precise power factor control.
Product Description
onsemi FAN9673Q is a high-performance Power Factor Controller IC engineered for power management in electronic applications. Operating at a switching frequency of 40 kHz, this 32-pin LQFP package device supports a maximum supply voltage of 30V, ensuring robust functionality in diverse operating environments.
The wide operating temperature range from -40°C to 105°C offers reliability across extreme thermal conditions, suitable for industrial and electronic equipment requiring precise power factor correction. The FAN9673Q controller integrates multiple protection features including soft start, over-voltage protection, open-feedback protection, over-current protection, input-voltage-absent protection, and under-voltage lockout to safeguard circuitry integrity.
This device adopts Continuous Conduction Mode (CCM), Critical/Boundary Conduction Mode (CrCM/BCM), and interleaved PFC control strategies, enhancing power efficiency and minimizing harmonic distortion in power supplies. Its compact dimensions with a height of 1.45 mm and length of 9 mm facilitate easy surface mount installation on printed circuit boards.
With a low start-up supply current of 80 μA and typical supply current of 7 mA, the FAN9673Q provides energy-efficient operation suitable for power-sensitive applications. Designed for new product use, it caters to industrial, electronics manufacturing, and power supply design sectors.
The controller maintains stable operation with a maximum source current of 50 μA and a sink current of -35 μA. Series FAN9673C ensures high-quality and consistent performance standards. Non-automotive standard device focused on general industrial power factor correction solutions.
For professional electronics design and industrial applications seeking reliable power factor correction, the onsemi FAN9673Q is an optimal choice. Explore related products and detailed technical documentation via EnvMart for comprehensive component selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30V.
It operates within a temperature range from -40°C to 105°C.
The switching frequency is 40 kHz.
This unit has a height of 1.45 mm and a length of 9 mm.
It comes in a 32-pin LQFP (Low-Profile Quad Flat Package).
It includes soft start, over-voltage protection, open-feedback protection, over-current protection, and under-voltage lockout.
The typical supply current is 7 mA.
The start-up supply current is 80 μA.
The maximum source current is 50 μA.
The maximum sink current is -35 μA.
This model is designed for surface mounting.
It is designed for industrial and electronic component applications requiring precise power factor control.
