Vishay Silicon Diode, Single, 300 mA, 75 V, 3-Pin SOT-23 BAS16-HE3-08

Free Delivery in India | Lowest Global Shipping Charges

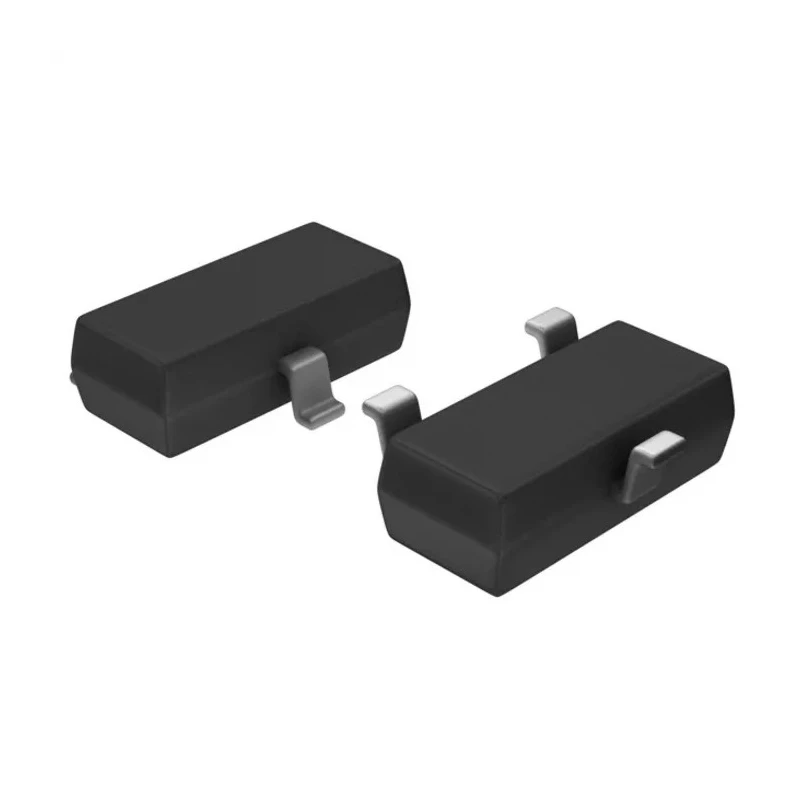

Vishay Silicon Diode, Single, 300 mA, 75 V, 3-Pin SOT-23 BAS16-HE3-08

Name: Vishay Silicon Diode, Single, 300 mA, 75 V, 3-Pin SOT-23 BAS16-HE3-08
Brand: Vishay
SKU: 155039
Price: 0.04 USD
Availability: InStock



Category Switching Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.15mm
Length	3.1mm
Model	BAS16-HE3-08
Width	2.6mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-23
Sub Type	Silicon Diode
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	6ns
Maximum Forward Current If	300mA
Maximum Peak Reverse Repetitive Voltage Vrrm	75V

Key Features

High-speed silicon epitaxial planar diode suitable for switching applications.
Maximum forward current rating of 300 mA ensures reliable low current handling.
Peak reverse repetitive voltage of 75 V allows wide voltage operating range.
Surface mount design with 3-pin SOT-23 package supports automated PCB assembly.
Ultra-fast switching speed with peak reverse recovery time of 6 ns.
Low maximum forward voltage of 1 V contributes to efficient operation.
Wide operating temperature range from -65°C to 150°C for harsh environments.
Maximum power dissipation rating of 500 mW suitable for thermal management.

Product Description

Vishay BAS16-HE3-08 is a single silicon switching diode designed for high-speed switching and low current applications. It features a 3-pin SOT-23 surface mount package that facilitates automatic insertion and assembly in modern electronic manufacturing.

The diode supports a maximum forward current of 300 mA and can withstand peak reverse repetitive voltages up to 75 V, making it suitable for various low-power switching circuits. Its ultra-fast switching capability, with a peak reverse recovery time of just 6 nanoseconds, enables efficient performance in high-frequency applications.

The maximum forward voltage drop is rated at 1 V, which ensures minimal power loss during conduction. Its operational temperature range spans from -65°C to 150°C, allowing reliable use in demanding industrial and automotive electronics environments. Rated for a maximum power dissipation of 500 mW, it effectively manages thermal requirements.

This diode is built with silicon epitaxial planar technology, providing consistency and durability. It complies with RoHS standards and meets the AEC-Q101 qualification, confirming its suitability for automotive and commercial grade applications.

The compact size with precise dimensions (3.1 mm length, 2.6 mm width, and 1.15 mm height) enables space-saving designs in dense circuit boards. It is ideal for applications in consumer electronics, industrial controls, telecommunications, and automotive electronics where fast Switching Diodes are required.

High-speed switching performance for efficient signal control. Compact SOT-23 package for surface mount assembly. Wide temperature tolerance suitable for harsh operating conditions. Compliant with environmental and automotive standards.

Reliable performance in low to moderate power electronic circuits. Explore Vishay Semiconductor components and allied electronic parts from EnvMart for industrial and commercial projects.
