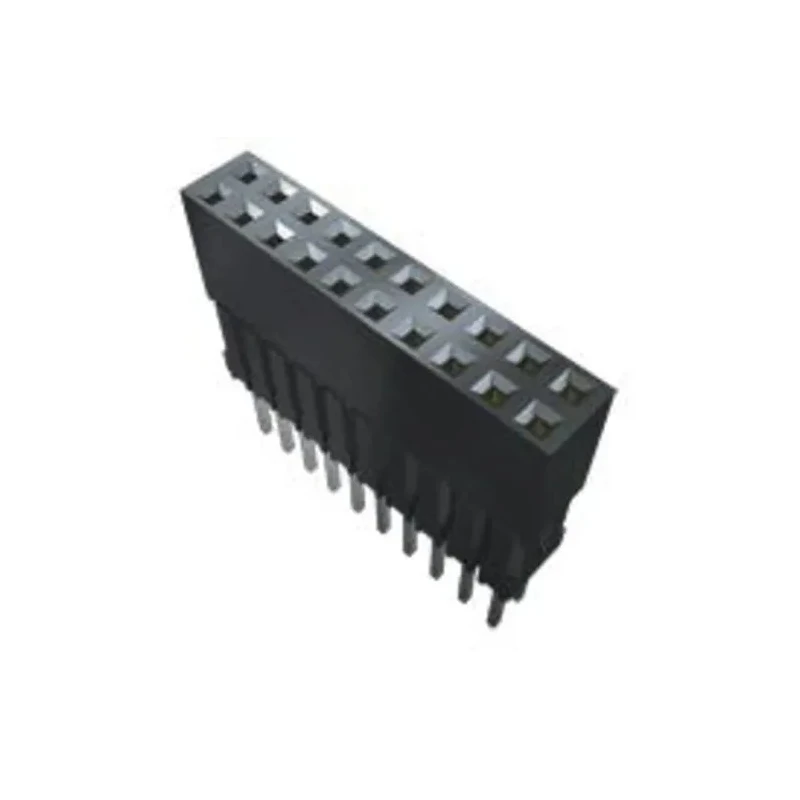

Samtec ESQ Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch 225V Solder Termination ESQ-120-24-G-D

Samtec ESQ-120-24-G-D is a high-quality straight through hole PCB socket from the ESQ series designed for electronics components requiring reliable, high-density board-to-board connections. This 40-contact socket is arranged in 2 rows with a standard 2.54 mm pitch, making it compatible with many PCB layouts and connector designs.

Constructed with a rugged black glass filled polyester housing, it provides excellent mechanical stability and resistance to environmental factors. The socket's contacts are made of bronze with gold plating, ensuring outstanding conductivity and corrosion resistance for long-term performance.

The termination method is solder through-hole, simplifying robust and durable mounting to printed circuit boards. This socket supports a voltage rating of 225 V and can handle currents up to 23 A, making it suitable for a range of electrical applications in industrial, manufacturing, and electronic device assembly sectors.

Its temperature operating range spans from -55°C to 125°C, enabling functionality in demanding thermal environments. Special features include standard and low insertion force contacts with .025 inch (0.635 mm) square tails tailored for PC/104 applications, enhancing system modularity and ease of installation.

The vertical, straight orientation fits board stacking requirements, serving effectively in single, double, and triple row configurations with pin counts up to 108, thus supporting various engineering configurations. The contact system uses Samtec's Tiger Buy™ technology for consistent and reliable contact performance.

This PCB socket is integral to electronic assembly lines, industrial equipment manufacture, aerospace electronics, and other applications requiring durable board-to-board connection solutions. It offers ease of installation with through-hole mounting and solder termination for dependable electrical and mechanical connections.

The socket utilizes black glass filled polyester housing for durability. Gold-plated bronze contacts ensure reliable electrical performance. Designed for through-hole mounting with solder termination type. Operating temperature range from -55°C up to 125°C supports various environments.

Standard and low insertion force contacts with .025" square tails for PC/104 applications enhance flexibility. Ideal for single, double, and triple row configurations up to 108 pins. Offers a vertical orientation suitable for board stacking.

Connector system designed as board-to-board for precise connections. Explore more PCB Sockets and related electronic connectors in the Electronics Components category for comprehensive solutions at EnvMart.
