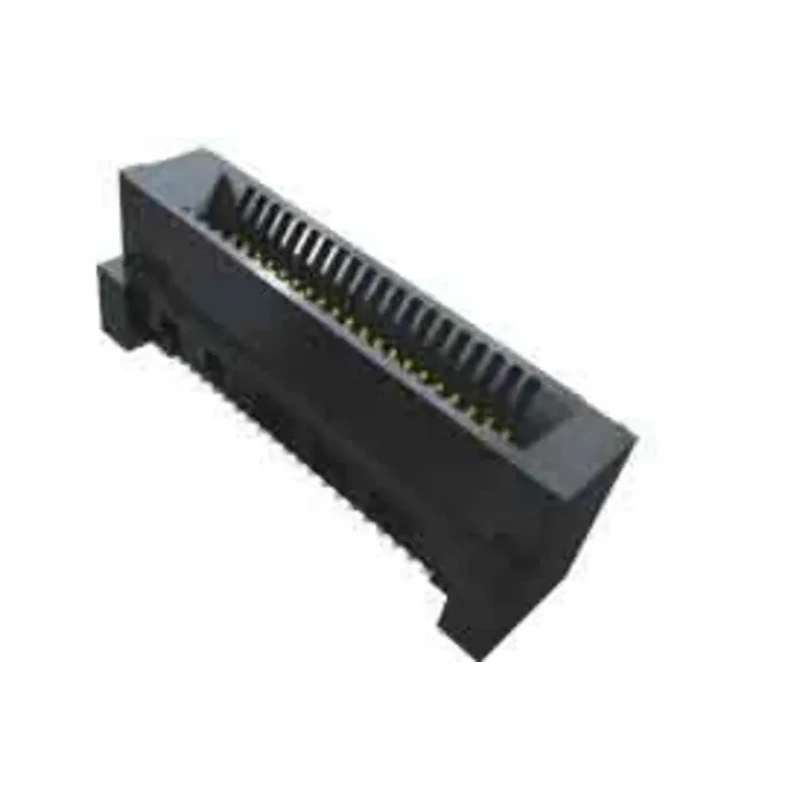

Samtec Vertical Edge Connector Female Surface Mount 20 Contacts 0.8 mm Pitch 2 Row Solder HSEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.8A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Card Slot | .062" (1.60 mm) |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Designed for vertical orientation on PCBs.
- Features 20 gold-plated contacts made from beryllium copper alloy.
- Suitable for current rating up to 2.8 A and voltage rating of 240 V.
- Card thickness compatibility of 1.6 mm with edge card slot size of 0.062 inches (1.60 mm).
- Operates reliably between -55°C to 125°C temperature range.
- Termination type is solder for PCB mounting.
- Housing constructed from liquid crystal polymer for durability.
- Includes rugged Edge Rate® contact for high-speed data performance.
Product Description
Samtec HSEC8-DV series vertical edge connector female is a high-performance electronic component designed for surface mounting on printed circuit boards. This connector features 20 gold-plated contacts with a pitch of 0.8 mm arranged in 2 rows, providing robust and precise connection for edge cards with a thickness of 1.6 mm. The connector supports a current rating of 2.8 A and voltage up to 240 V, suitable for demanding electrical applications.
The housing is made of liquid crystal polymer, which ensures mechanical stability and resistance to environmental stress. It operates within a wide temperature range from -55°C to 125°C, making it suitable for industrial, telecommunications, and computing environments. The solder termination type ensures secure attachment to PCB surfaces.
Additional design features include the rugged Edge Rate® contact for high-speed data transmission capabilities compatible with Samtec’s 28+ Gbps solutions. Optional board locks and cable latching provide enhanced mechanical retention, while a weld tab option increases mechanical strength for demanding assembly processes.
This edge connector is ideal for applications in electronics manufacturing, telecommunications equipment, data networking devices, and other industries requiring reliable surface-mount Edge Connectors. The HSEC8-DV series delivers performance, durability, and precision connection in a compact form factor.
Designed for vertical PCB orientation applications with a solder termination type. 20 contacts gold plated for optimum conductivity and durability. Supports 2-row contact configuration with 0.8 mm pitch. Operating temperature range from -55°C to 125°C for versatile conditions.
Made with robust liquid crystal polymer housing material. Compatible with 1.6 mm thick cards and includes rugged Edge Rate® contacts. Available optional features such as board locks, cable latches, and weld tab. Meets high-speed data transfer requirements up to 28+ Gbps.
Explore more electronic connectors and components from Samtec at EnvMart for efficient and high-quality PCB assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.8 A and a voltage rating of 240 V, making it suitable for various electrical applications.
The connector features a pitch of 0.8 mm and includes 20 gold-plated contacts arranged in 2 rows.
It operates reliably within a temperature range of -55°C to 125°C, suitable for diverse environmental conditions.
The HSEC8-DV utilizes a solder termination type for secure attachment to printed circuit boards.
The housing is made from liquid crystal polymer, and the contacts are constructed from beryllium copper alloy, providing mechanical stability and conductivity.
Yes, it is compatible with edge cards that have a thickness of 1.6 mm and an edge card slot size of 0.062 inches.
Optional features include board locks and cable latching for enhanced mechanical retention, as well as a weld tab option for increased mechanical strength.
This model is designed for vertical orientation on printed circuit boards (PCBs).
The connector has a female contact gender, suitable for edge card applications.
It is ideal for use in electronics manufacturing, telecommunications equipment, and data networking devices, among other industries.
The connector features a 0.8 mm pitch with 20 contacts in a 2-row configuration, designed to fit edge cards with a thickness of 1.6 mm.
The HSEC8-DV connector is manufactured in India.
