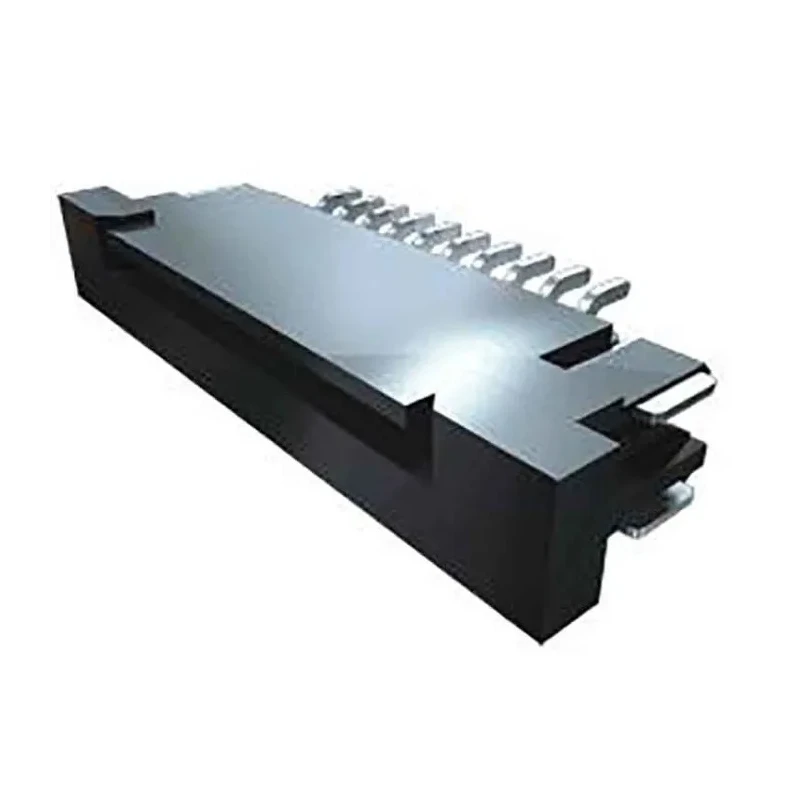

Samtec FPC Connector 1 mm Pitch 10 Way Horizontal Female Solder ZF1-10-01-T-WT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 2.9A |
| Model | ZF1-10-01-T-WT-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ZF1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features 10 contacts made of phosphor bronze ensuring reliable conductivity.
- Supports a maximum current of 2.9 A and voltage up to 200 V.
- Has bottom contact position with zero insertion force (ZIF) for easy mating.
- Operates within a temperature range of -55°C to 105°C.
- Constructed with liquid crystal polymer housing and gold over nickel contact plating for durability.
- Single row configuration with horizontal orientation suitable for FFC connections.
- Complies with industry standards without specific approvals.
- Ideal for electronics, power connectors, and PCB applications requiring compact and reliable FPC connectors.
Product Description
Samtec ZF1-10-01-T-WT-TR is a high-quality 10 way horizontal female FPC connector designed with a 1 mm pitch and solder termination, optimized for surface mount applications. It features phosphor bronze contact material plated with gold over nickel, delivering excellent conductivity and corrosion resistance.
The connector supports a current rating of 2.9 A and can safely operate at voltages up to 200 V, making it suitable for a wide range of electronic and electrical applications. It operates reliably in extreme temperature conditions from -55°C to 105°C, catering to demanding industrial environments.
Designed with a zero insertion force (ZIF) mechanism, the connector ensures ease of mating and longevity of contacts. The housing is constructed from liquid crystal polymer providing mechanical strength and dimensional stability.
This single row, horizontally oriented FPC connector is ideal for flexible flat cable interconnections in electronics, power systems, and PCB assemblies, facilitating compact and efficient designs.
Features 10 contacts made of phosphor bronze ensuring reliable conductivity. Supports a maximum current of 2.9 A and voltage up to 200 V. Has bottom contact position with zero insertion force (ZIF) for easy mating. Operates within a temperature range of -55°C to 105°C.
Constructed with liquid crystal polymer housing and gold over nickel contact plating for durability. Single row configuration with horizontal orientation suitable for FFC connections. Complies with industry standards without specific approvals.
Ideal for electronics, power connectors, and PCB applications requiring compact and reliable FPC connectors.
This product is essential for applications in industrial electronics, manufacturing, laboratory instruments, and power distribution systems where reliable and compact connections are critical.
Explore more Samtec connectors and other FPC Connector solutions on EnvMart for enhanced electronic system integration and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current rating of 2.9 A.
It can operate at voltages up to 200 V.
This model operates reliably within a temperature range of -55°C to 105°C.
The housing is made from liquid crystal polymer, and the contacts are made of phosphor bronze with gold over nickel plating.
It features 10 contacts.
This model uses solder termination.
It has a horizontal orientation.
It features a zero insertion force (ZIF) mechanism for easy mating.
The pitch size of this model is 1 mm.
It is ideal for electronics, power connectors, and PCB applications requiring compact and reliable FPC connections.
This connector has a single row configuration.
The country of origin for this connector is India.
