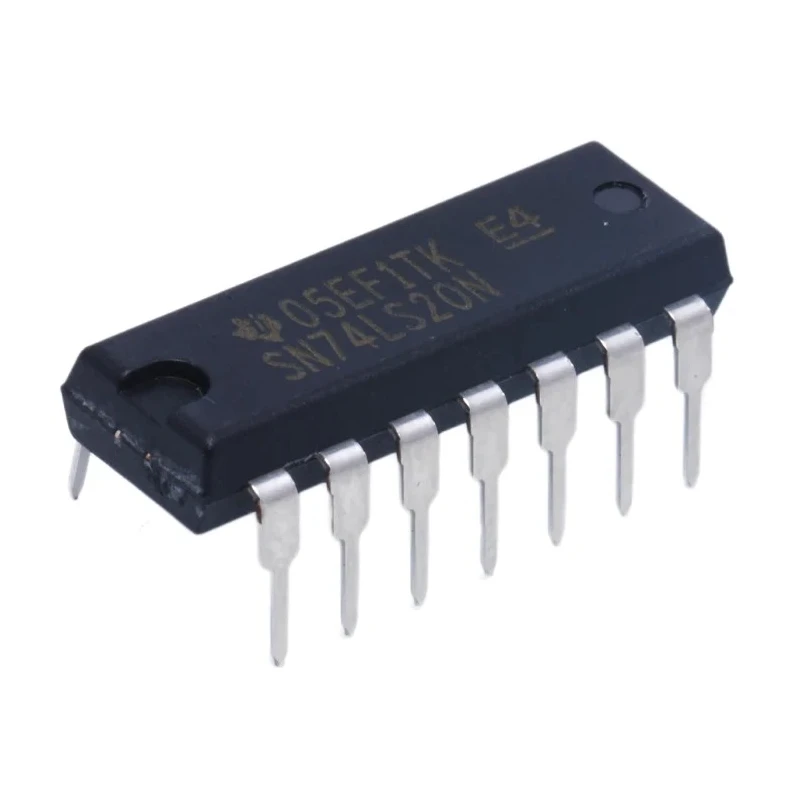

Texas Instruments 2 4-Input NAND Logic Gate 14-Pin PDIP SN74LS20N

Texas Instruments SN74LS20N is a 2 4-Input NAND Logic Gate IC, supplied in a 14-pin PDIP package. It is part of the 74LS Family of logic gates, which use low power Schottky bipolar junction transistor technology. Operating at a supply voltage range of 4.75 V to 5.25 V, this chip features two independent NAND gates each with 4 inputs.

The device offers a maximum propagation delay of 5 nanoseconds, enabling high-speed digital logic function execution. It is designed for through hole mounting, making PCB assembly straightforward for electronic circuit designers and engineers.

With operating temperature range from 0°C to 70°C, the SN74LS20N is suitable for standard industrial and commercial applications. It provides maximum low-level output current of 8 mA and maximum high-level output current of -0.4 mA, ensuring robust logic signaling capabilities.

The 14-pin PDIP form factor measures 19.3 mm in length and 4.57 mm in height, facilitating easy integration into existing electronic systems. This logic gate IC is commonly used in industrial control systems, laboratory instrumentation circuits, semiconductor designs, and other electronic device manufacturing requiring reliable NAND gate logic operations.

Environmentally compliant, the SN74LS20N does not have any motor or moving parts and is RoHS certificate of compliance ready. This model contains two 4-input NAND gates. Low power consumption with high switching speeds due to bipolar junction and Schottky diode technology.

Through hole mount for durable PCB connection. Wide temperature operation range from 0 to 70 degrees Celsius. Compact PDIP 14-pin package dimensions with 19.3 mm length and 4.57 mm height. Logic family: LS (Low power Schottky).

Maximum propagation delay time of 5 ns at typical capacitive load. Maximum supply voltage of 5.25 V and minimum of 4.75 V. Supports industrial, electronic component, and semiconductor applications. Explore more Texas Instruments Logic Gate ICs and electronic components in EnvMart’s semiconductor category for advanced circuit designs and industrial utilities.
