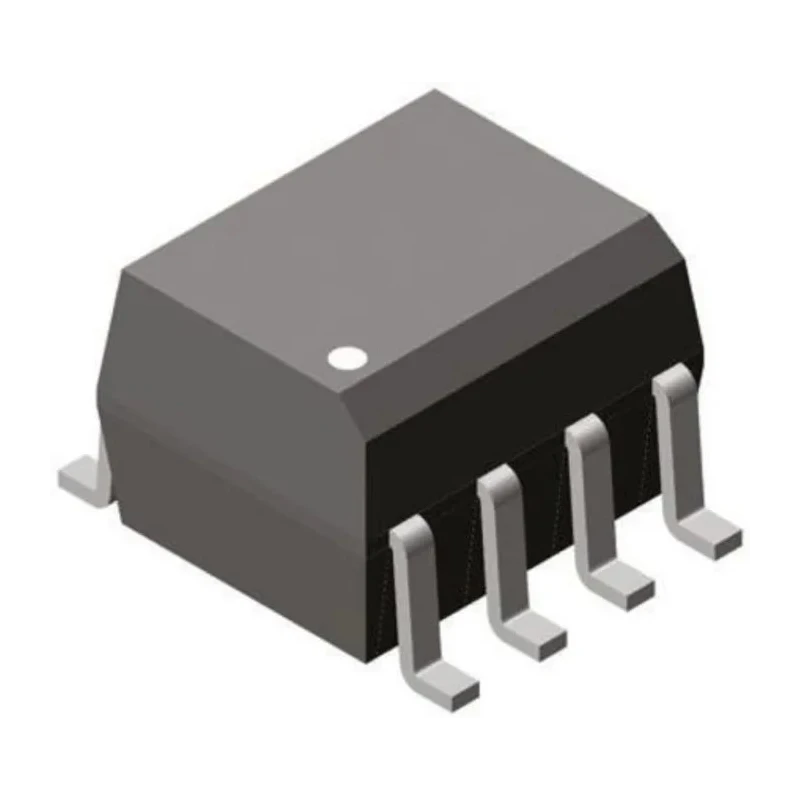

Vishay DC Input 2-Channel Optocoupler, Surface Mount 8-Pin SOIC ILD206T

Vishay ILD206T is a high-performance DC input optocoupler with 2 independent channels, designed for surface mount applications. Housed in an 8-pin SOIC package, this device provides electrical isolation between input and output, ensuring signal integrity and protection in electronic circuits.

The device is rated for a maximum forward voltage of 1.55 V and supports a maximum input current of 30 mA. The typical signal rise time of 3 μs and fall time of 4.7 μs enable swift response times suitable for various industrial control and signal isolation requirements.

With a wide operating temperature range from -55°C up to 100°C, the ILD206T is well-suited for harsh environmental conditions encountered in manufacturing, industrial automation, and power electronics.

This optocoupler offers high isolation voltage of 4 kVrms providing secure separation between control and power circuits, complying with major safety approvals including UL1577, cUL, and CSA bulletin 5A. It is part of Vishay's ILD2 series, which emphasizes stable and reliable performance in demanding applications.

Supplied in tape and reel packaging, this product supports automated pick-and-place assembly lines for seamless manufacturing integration. Includes 2 independent channels with transistor output for effective signal isolation.

Maximum forward voltage of 1.55 V ensures low voltage drop during operation. Typical rise time of 3 μs and fall time of 4.7 μs allow fast switching capabilities. Operating temperature range of -55°C to 100°C suits industrial and commercial applications.

Isolation voltage of 4 kVrms provides high electrical safety standards compliance. Meets UL1577, cUL, and CSA bulletin 5A certifications for assured quality. Tape & reel packaging supports efficient surface mount assembly processes.

Part of Vishay's ILD2 series optocouplers, tailored for precision and endurance.

This optocoupler is ideally used in electronic circuits requiring isolation between high-voltage and low-voltage sections such as power supplies, signal conversion, and industrial control systems. Its robustness and certified compliance make it a preferred choice for industrial manufacturing, laboratory equipment, and electronic instrumentation.
