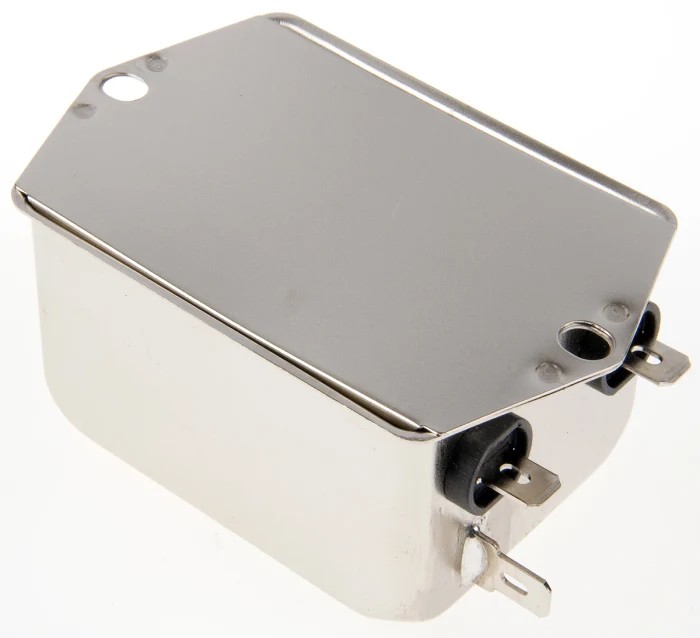

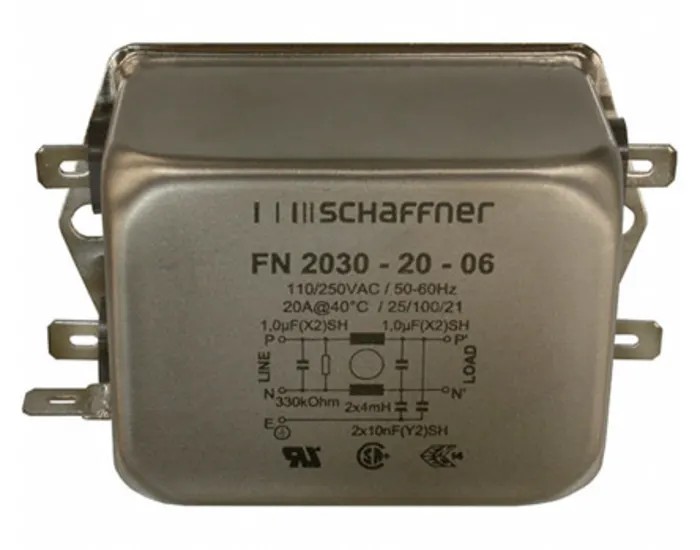

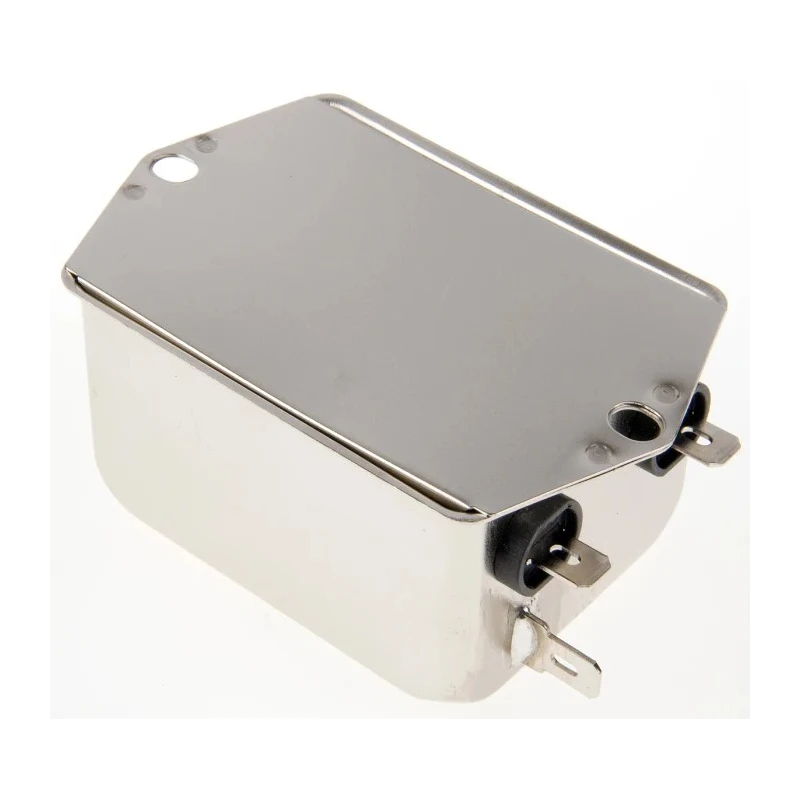

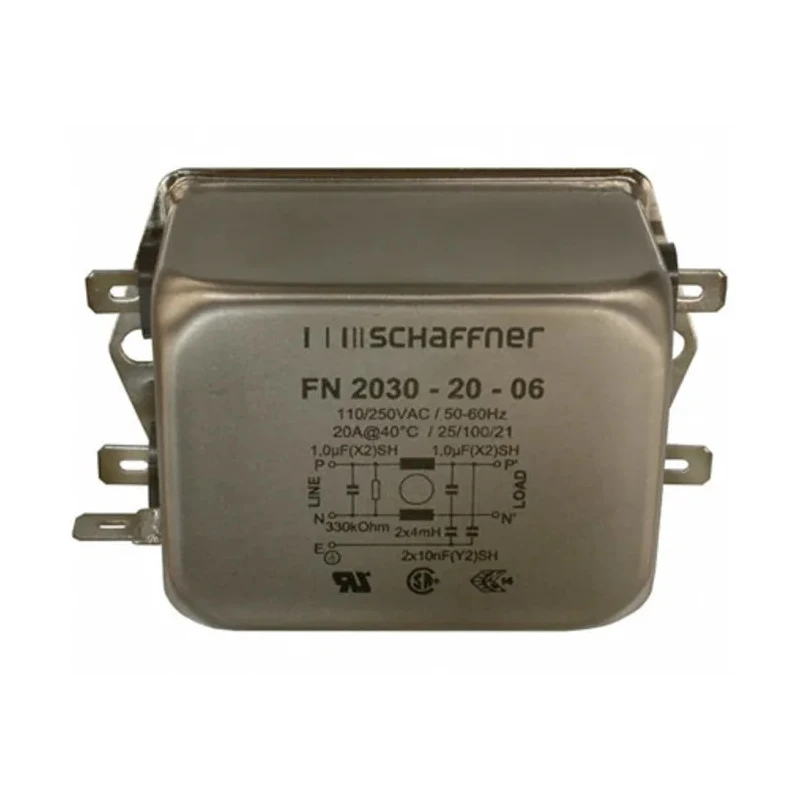

Schaffner Chassis Mount EMI Filter 20 A 250V ac/dc 400Hz Fast-On 1 Phase FN2030

Schaffner FN2030 chassis mount EMI filter FN2030 model is engineered for reliable high-frequency noise suppression in electrical systems operating at 250V ac/dc and 400Hz frequency, with a maximum current handling of 20 A. Featuring a fast-on termination style and single-phase chassis mount configuration, it offers easy installation for various industrial and consumer electronic applications.

This filter is part of Schaffner's premium FN2030 series known for its exceptional conducted attenuation performance derived from chokes built with high permeability core materials, ensuring excellent thermal behavior and reliable operation in demanding environments. It supports operation from -25°C up to 100°C, making it suitable for temperature-sensitive applications.

Technical characteristics include a capacitance of 10nF, inductance of 4mH, and leakage current rating of 870μA, while power loss is minimized to 4.6W to promote energy efficiency. The resistance is rated at 330kΩ. Mechanical dimensions measure 85mm length, 54mm depth, and 40.3mm height, allowing integration in space-constrained electrical assemblies.

This EMI filter is optimal for reducing electromagnetic interference in medical equipment, consumer electronics, household devices, electronic data processing systems, and other noisy environments requiring top-notch EMI attenuation. The single-stage design aligns with moderate noise suppression needs, while optional surge pulse protection can be included.

Manufactured in Thailand, this component adheres to high-quality standards despite the absence of formal certifications listed. It can be utilized in various industrial, commercial, laboratory, HVAC, and electrical applications to ensure compliance with electromagnetic compatibility requirements.

Provides high performance conducted attenuation through premium chokes with high-permeability core material. Designed for efficient chassis mounting with fast and easy installation. Supports operating temperatures ranging from -25°C to 100°C for versatile use.

Includes a capacitance of 10nF and inductance of 4mH to optimize filtering efficiency. Suitable for electrical and electronic equipment, consumer goods, medical, and data processing devices. Single-stage filter design enables effective EMI suppression.

Features a resistance rating of 330kΩ and a power loss of 4.6W. Compact dimensions of 85mm length, 54mm depth, and 40.3mm height fit diverse applications. Constructed with quality materials ensuring durability and thermal stability.

Manufactured in Thailand maintaining high standards of quality. Explore similar Schaffner EMI Filters and related power line filters in EnvMart to find components tailored for your industrial, laboratory, construction, or manufacturing needs.
