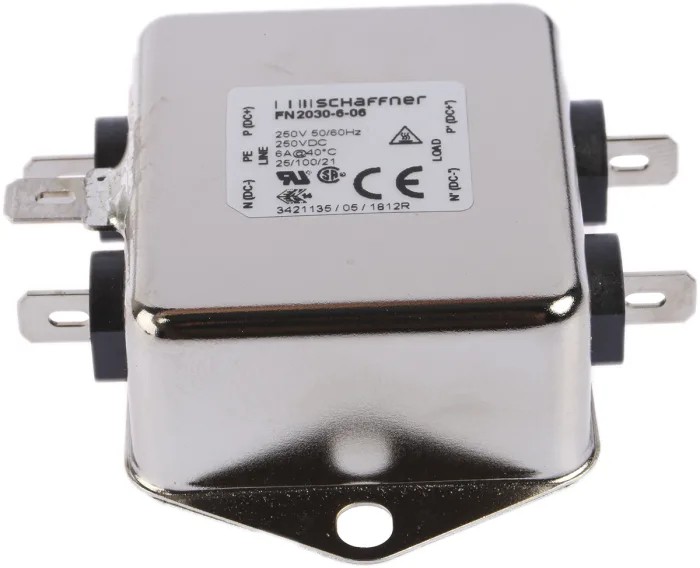

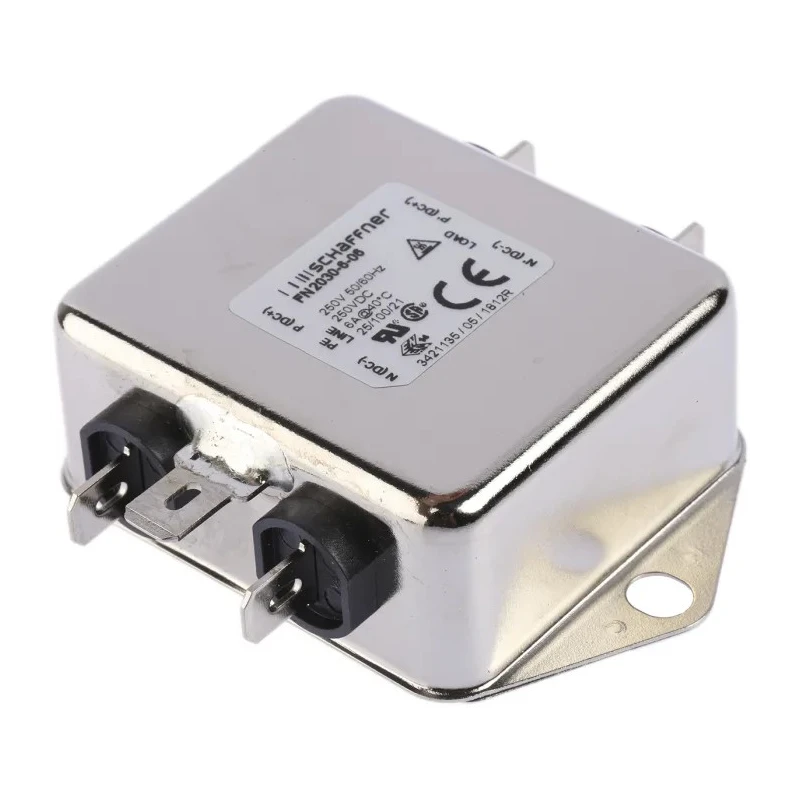

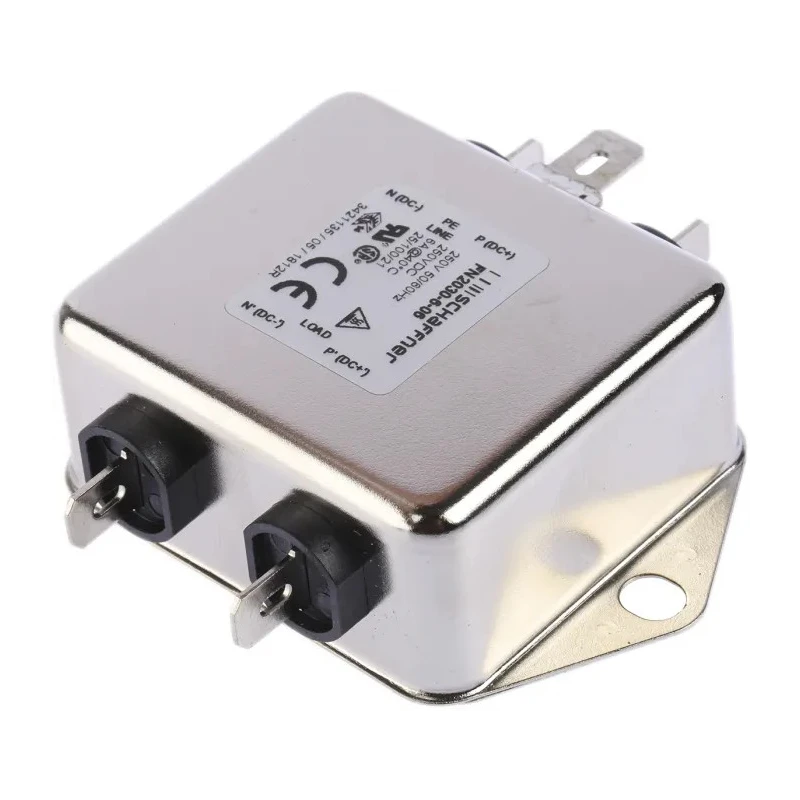

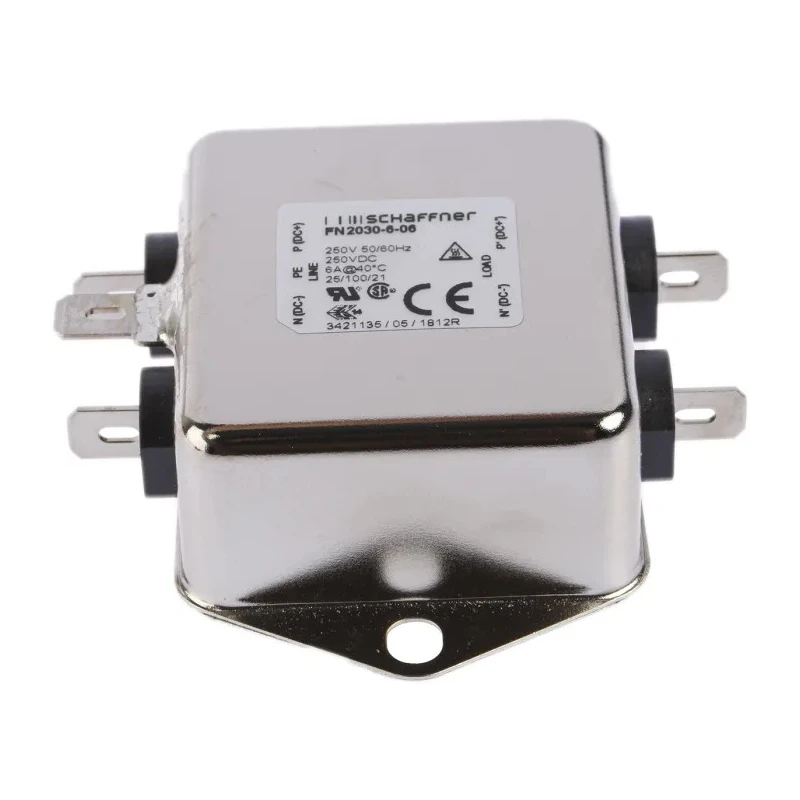

Schaffner Chassis Mount EMI Filter 6 A 250V ac/dc 400Hz Fast-On 1 Phase FN2030

Schaffner FN2030 is a premium chassis mount EMI filter designed to handle maximum current of 6 A at 250V ac/dc voltage. It operates at a frequency of 400Hz and is equipped with fast-on termination for quick and secure connections in one-phase electrical applications.

This two-stage filter series features a capacitance of 470nF and inductance of 8mH, utilizing chokes with high permeable core material to ensure excellent conducted attenuation and thermal behavior. The device performs reliably over a broad temperature range, from -25°C minimum to 100°C maximum operational conditions.

Its compact size, measuring 71 mm in length, 46.6 mm in depth, and 22.3 mm in height, allows installation in constrained spaces. With a resistance of 680kΩ and a low leakage current of 730μA, the FN2030 minimizes power losses (3.2W), enabling energy-efficient operation.

This filter is suited for diverse industrial, electronic, and household medical equipment requiring high performance electromagnetic interference suppression. Applications include electrical and electronic devices, data processing systems, and other noisy equipment environments.

Schaffner FN2030 filters provide high differential mode attenuation, and optional variants include safety and medical certifications along with surge pulse protection options. These features make the FN2030 series ideal for demanding and noise-sensitive applications.

The product carries no additional certifications but meets high standards for EMI filtering within the electronics components category. This robust component is key in improving electromagnetic compatibility in commercial, industrial, and laboratory settings.

Designed for chassis mounting providing easy installation. Operates efficiently at a maximum frequency of 400Hz. Features a capacitance of 470nF and inductance of 8mH for noise suppression. Works within temperature ranges from -25°C to 100°C.

Leakage current is low at 730μA ensuring minimal loss. Compact dimensions (71 mm length, 46.6 mm depth, 22.3 mm height) fit various installations. Power loss is minimal at 3.2W promoting energy efficiency. Resistance is 680kΩ, supporting robust filtering performance.

Reliable single-phase, single-stage EMI filter in the FN2030 series. Explore more high-quality EMI Filters and power line components in the Electronics Components category at EnvMart.
