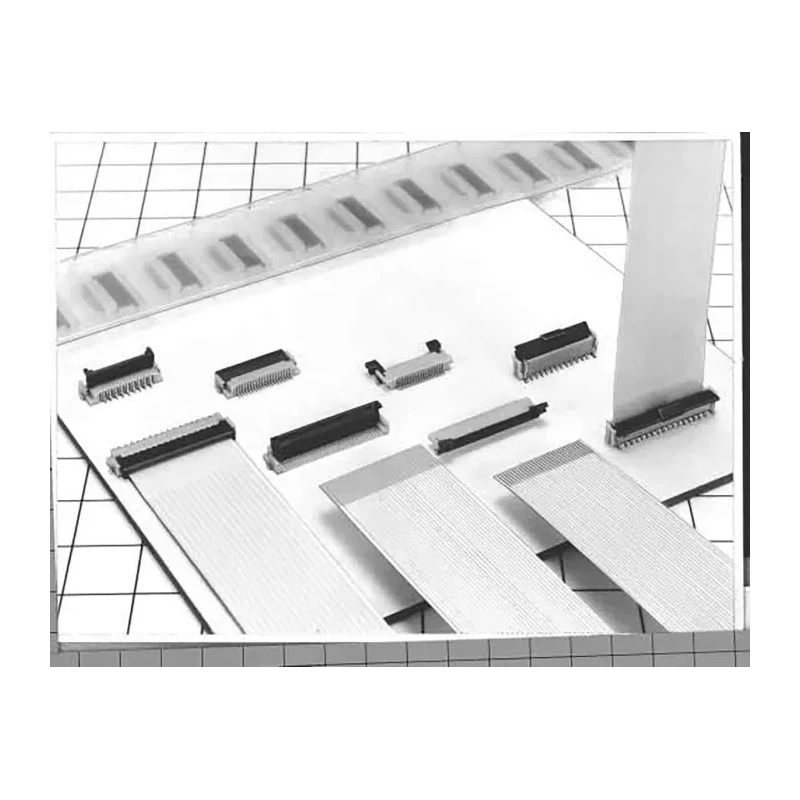

Hirose FH12 0.5 mm Pitch 12 Way Straight Female FPC Connector, Solder FH12

Hirose FH12 12 Way Straight Female FPC Connector FH12, with a 0.5 mm pitch and solder termination, is engineered for precision applications in electronics and electrical assemblies. This connector offers a robust solution with phosphor bronze contacts plated with gold for high reliability and electrical performance.

Featuring a vertical contact position and straight orientation, it facilitates efficient surface mounting on PCBs where space-saving and dense wiring are critical. The ZIF (Zero Insertion Force) mechanism employs a one-touch rotating actuator that provides a tactile click, simplifying connection and disconnection without damage to the flexible printed circuit.

Designed to operate between -40°C and 85°C, it is suitable for various industrial and commercial electronic environments. The polyamide housing material offers excellent mechanical properties and insulation, supporting stable functionality in harsh conditions.

The connector supports currents up to 500 mA and voltages of 50 V ac, suitable for signal and low power applications. A locking mechanism is included to prevent accidental disconnections and ensure safety in electronic designs.

Manufactured in Japan, this FH12 series connector adheres to strict quality standards for durability and performance. It is ideal for use in high-density circuit boards, communication equipment, portable devices, and other precision electronics requiring secure and efficient FPC connections.

This connector has a 0.5 mm pitch and 12 contacts to support fine pitch wiring. Phosphor bronze contacts with gold plating ensure durability and excellent conductivity. Vertical contact position with straight, surface mount orientation for compact PCB assembly.

ZIF insertion force with rotating actuator provides easy, damage-free cable insertion. Operating temperature range from -40°C to 85°C supports demanding environments. Polyamide housing ensures high insulation and mechanical stability.

Supports 50 V ac voltage and up to 500 mA current for low power signal transmission. Locking mechanism secures connections for reliable performance. Manufactured in Japan, ensuring high-quality and consistency.

Use this high-density FPC Connector in applications including industrial equipment, consumer electronics, instrumentation, and telecommunications. Browse more high-performance connectors and components on EnvMart for your advanced electronic assembly needs.
