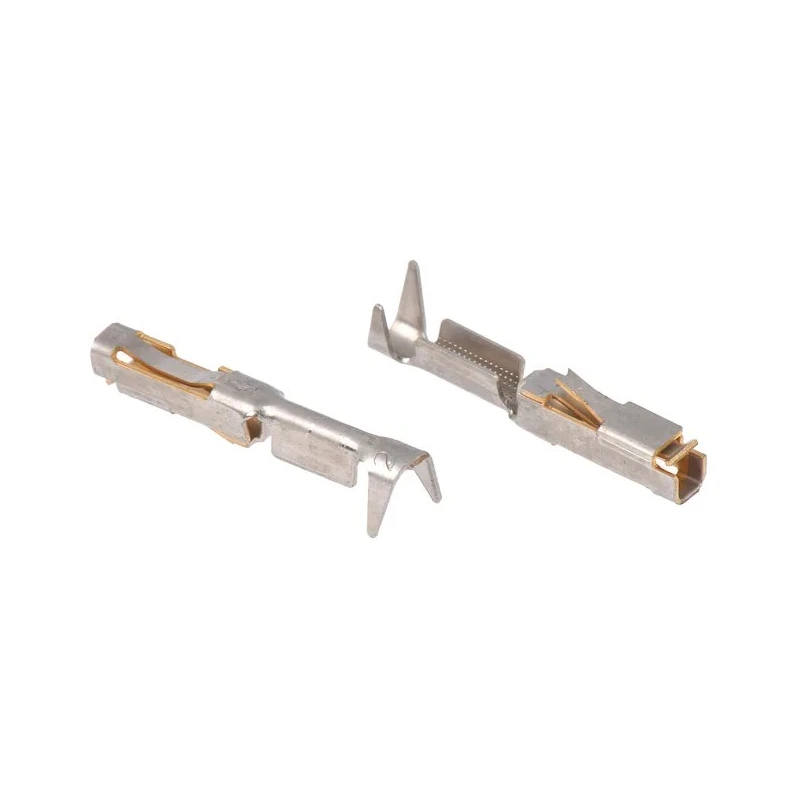

Hirose Female Crimp Terminal for HIF3B Connector Housing 3A Current 26-22 AWG, Gold Plated Contact HIF3B

Free Delivery in India | Lowest Global Shipping Charges

Hirose Female Crimp Terminal for HIF3B Connector Housing 3A Current 26-22 AWG, Gold Plated Contact HIF3B

Name: Hirose Female Crimp Terminal for HIF3B Connector Housing 3A Current 26-22 AWG, Gold Plated Contact HIF3B
Brand: Hirose
SKU: 217747
Price: 0.36 USD
Availability: InStock



Category Crimp Terminal Brand Hirose Condition New

Specifications

Country of Origin	Japan
Brand	Hirose
Current	3A
Model	HIF3B
Gender	Female
Contact Material	Beryllium Copper Alloy
Series	HIF3B
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
For Use With	HIF3B Connector Housing
Contact Plating	Gold
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	15mΩ

Key Features

Gold plated beryllium copper alloy contacts ensure reliable conductivity and corrosion resistance.
Designed for use with HIF3B Connector Housing.
Suitable for wire sizes 26 AWG minimum and 22 AWG maximum.
Crimp type termination ensures secure mechanical and electrical connection.
Operating temperature range from -55°C to 85°C makes it suitable for a range of environments.
Maximum contact resistance of 15 milliohms for efficient signal transmission.
Compact design facilitates use in tight connector assemblies.
Manufactured in Japan assuring high quality standards.

Product Description

Hirose HIF3B Female Crimp Terminal (Model: HIF3B, MPN: HIF3-2226SCA) is engineered for secure crimp connections in electronic and power connector applications. This crimp terminal supports wire sizes ranging from 26 AWG (minimum) to 22 AWG (maximum) and carries a nominal current rating of 3 amperes. Its gold plated contacts fabricated from beryllium copper alloy ensure excellent conductivity and resistance to corrosion for durable performance.

The crimp type termination allows quick and reliable assembly with the corresponding HIF3B Connector Housing. Designed to operate reliably in temperature extremes from -55°C up to 85°C, it is suitable for demanding industrial and electronic environments. The maximum contact resistance is kept low at 15 milliohms, guaranteeing efficient signal or power transfer.

Manufactured in Japan, this crimp terminal meets high quality standards and is ideal for applications requiring precision and durability. It is commonly used in electronic components assemblies where female crimp contacts are needed. Although there are no specific standards or approvals listed, the quality construction and materials provide confidence in performance.

The compact and robust design fits neatly into HIF3B connector housings, making it a reliable choice for various industrial, electronic, and power connection needs. It is part of the HIF3 series known for compatibility with different wire gauge ranges and connector assemblies.

Gold plated beryllium copper alloy contacts ensure durability and performance. Supports wire sizes 26 AWG minimum and 22 AWG maximum. Current rating of 3 amperes suitable for low power applications. Operating temperature range from -55°C to 85°C.

Low contact resistance of 15 milliohms promotes efficient connectivity. Crimp termination for solid mechanical and electrical connection. Compatible with HIF3B Connector Housing. Manufactured in Japan ensuring quality standards.

No certifications or approvals specified. Explore more Hirose electronic connectors and Crimp Terminals at EnvMart for industrial, laboratory, and commercial electronic assembly needs.
