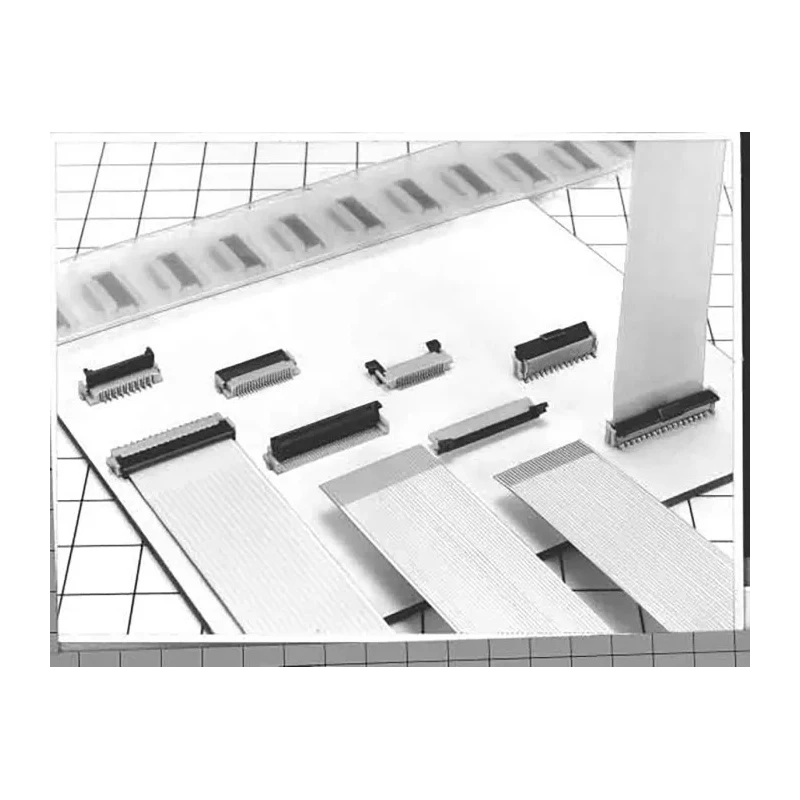

Hirose FH12 0.5 mm Pitch 10 Way Straight Female FPC Connector, Solder
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | FH12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Vertical |
Key Features
- Has 10 contacts for reliable connectivity.
- Utilizes phosphor bronze contact material with gold plating for durability.
- Supports 0.5 mm pitch and 500 mA current capacity.
- Designed with a vertical contact position and straight orientation.
- Equipped with a one-touch rotating ZIF lock mechanism for ease of use.
- Operates in temperature range from -40°C to 85°C.
- Constructed with polyamide housing material ensuring insulation and resilience.
- Suitable for high-density mounting in electronics applications.
Product Description
Hirose FH12 0.5 mm Pitch 10 Way Straight Female FPC Connector, Solder (Model FH12-10S-0.5SVA(54)) is a high-quality surface mount FPC connector designed for demanding electronics applications. It features 10 female contacts made of phosphor bronze with gold plating, offering excellent conductivity and long-term reliability. The 0.5 mm pitch spacing allows for compact and high-density mounting on PCBs. The connector supports a current rating of 500 mA and voltage rating of 50 V AC, suitable for low-power signal transmission.
This connector utilizes a vertical contact position and straight orientation to ensure efficient mating with corresponding male connectors or flexible printed circuits. Its zero insertion force (ZIF) mechanism with a reinforced actuator provides a clear tactile click and easy locking, minimizing wear during repeated connections. The housing is made from durable polyamide material, providing insulation and mechanical protection. Rated for operating temperatures from -40°C to 85°C, it is suitable for various industrial and electronic environments.
Typical applications include compact electronic devices, consumer electronics, instrumentation, and high-density PCB assemblies in laboratory, manufacturing, and commercial sectors. The product is made in Japan and adheres to reliable quality standards suitable for industrial use.
Features 10 contacts with gold-plated phosphor bronze for durability. Zero insertion force (ZIF) locking mechanism for easy and secure connections. Surface mount type with 0.5 mm pitch for high-density PCB layouts. Operates across a wide temperature range from -40°C to 85°C.
Robust polyamide housing ensures insulation and mechanical strength. Supports low voltage and current applications up to 50 V AC and 500 mA. Ideal for electronics manufacturing, repair, and prototyping tasks.
Choose Hirose FH12 connectors from EnvMart for reliable, precision FPC connections in your electronic designs and assemblies. Explore the Electronics & Electricals > Electronics Components > FPC Connector category for related connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 500 mA, making it suitable for low-power signal transmission.
The connector features a pitch size of 0.5 mm, allowing for compact and high-density mounting on PCBs.
It operates within a temperature range of -40°C to 85°C, making it suitable for various industrial and electronic environments.
The housing is made from polyamide, and the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity and reliability.
This model utilizes a solder termination type, which is common for secure connections in electronic applications.
It has a total of 10 female contacts, designed for reliable connectivity in compact electronic devices.
The connector is designed with a straight orientation, which facilitates efficient mating with corresponding male connectors or flexible printed circuits.
It is equipped with a zero insertion force (ZIF) locking mechanism, which provides easy and secure connections with minimal wear during repeated use.
This connector has a voltage rating of 50 V AC, suitable for low voltage applications.
The Hirose FH12 connector is made in Japan, adhering to reliable quality standards suitable for industrial use.
Typical applications include compact electronic devices, consumer electronics, instrumentation, and high-density PCB assemblies in various sectors.
The contact position is vertical, which aids in efficient mating and connection stability.
