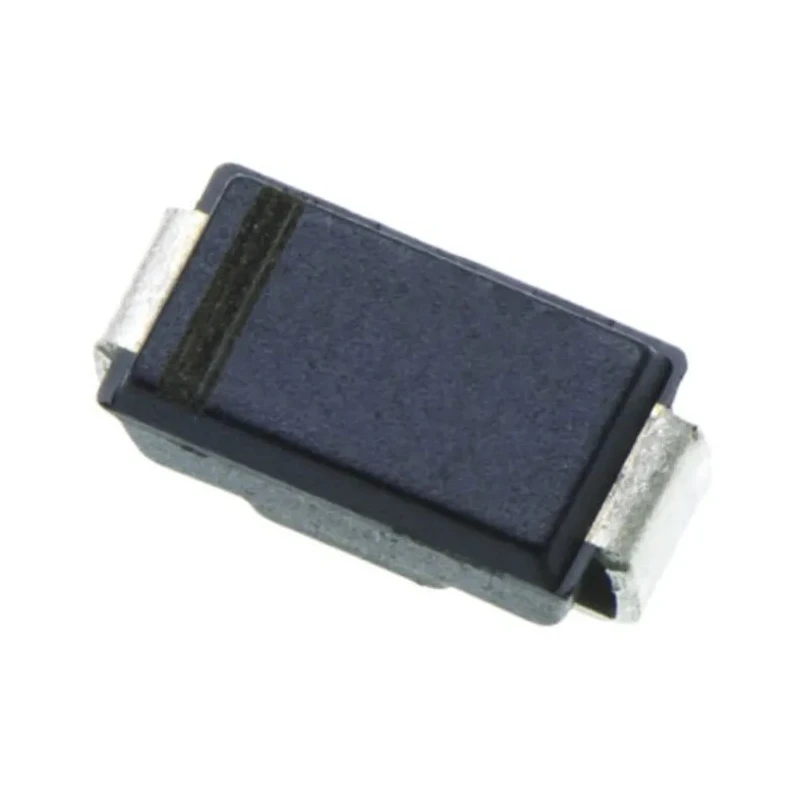

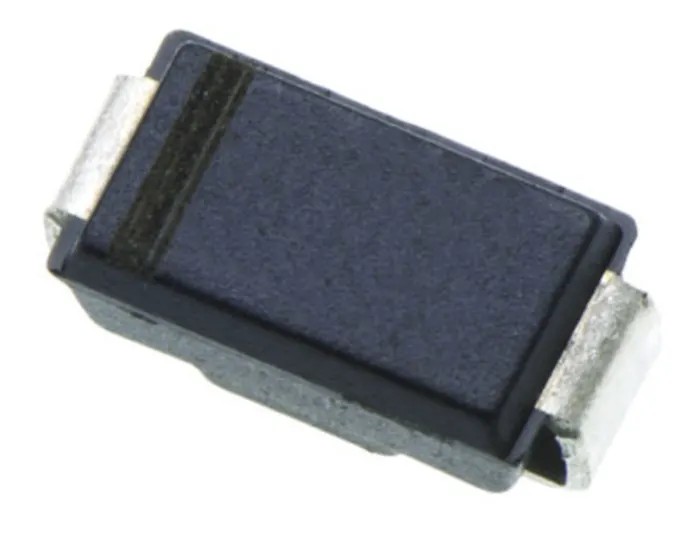

Name: Bourns Surface Mount Schottky Diode 2-Pin DO-214AC Package 100 V 1 A CD214A-B1100R
Brand: BOURNS
SKU: 151070
Price: 0.21 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	0.96mm
Length	4.5mm
Model	CD214A-B1100R
Width	2.2mm
Mount Type	Surface
Series	CD214A-B1xR
Maximum Operating Temperature	150°C
Package Type	DO-214AC
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	850mV

Key Features

Compact DO-214AC package suitable for surface mount technology.
Maximum continuous forward current of 1 A for reliable power handling.
Peak reverse repetitive voltage of 100 V for robust protection.
Low forward voltage drop of 850 mV ensuring low power loss.
Wide operating temperature range from -55°C to 150°C supporting harsh conditions.
Peak non-repetitive surge current capacity of 30 A for transient robustness.
2-pin single diode configuration for straightforward circuit integration.
Low profile design enabling compact PCB layouts.

Product Description

Bourns CD214A-B1100R is a surface mount Schottky diode housed in a low profile DO-214AC 2-pin package, offering a maximum continuous forward current of 1 A and a peak reverse repetitive voltage rating of 100 V. This diode features a low forward voltage drop of 850 mV which results in high efficiency and reduced power loss, making it ideal for rectification applications with stringent thermal and power requirements.

The device operates reliably over a temperature range of -55°C to 150°C, making it suitable for demanding industrial, telecommunications, and portable electronics applications. Its peak non-repetitive forward surge current of 30 A provides tolerance against transient surges typical in switching power supplies and DC/DC converters.

The compact 4.5 mm length, 2.2 mm width, and 0.96 mm height dimensions of the DO-214AC package allow for space-saving PCB layout designs, helping engineers optimize board real estate in modern compact devices.

Bourns Schottky diodes like the CD214A-B1100R are commonly used in switched-mode power supplies, portable equipment batteries, and telecommunications devices due to their fast switching, low forward voltage, and robust surge handling capabilities.

Compact DO-214AC surface mount package for easy PCB integration. High efficiency with low forward voltage of 850 mV reduces power loss. Wide operating temperature range supports diverse industrial environments. Peak reverse voltage rating of 100 V for versatile rectifier applications.

High surge current capacity supports transient events in power electronics. 2-pin single diode simplifies circuit implementation. Robust design ensures durability in telecommunications and portable equipment. Low profile design is ideal for space-constrained applications.

No automotive standards applicable, focusing on general electronic components.

It is ideal for industrial, laboratory, construction, HVAC, manufacturing, telecommunications, and water treatment system applications requiring compact, efficient Schottky rectifiers.

Explore our extensive semiconductor and diode catalog on EnvMart to find compatible power rectifiers and related components for your engineering needs.

Explore more products in our Schottky Diodes & Rectifiers category.
