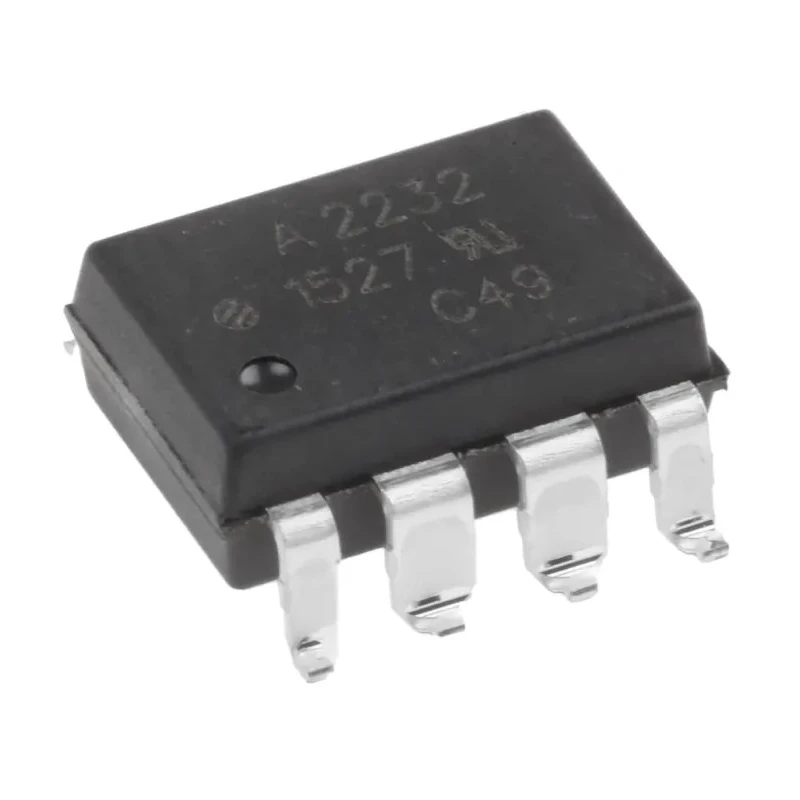

Broadcom DC Input 2-Channel Optocoupler Surface Mount 8-Pin PDIP HCPL-2232-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2232-300E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 10mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL1577, IEC/EN/DIN EN 60747-5-5, CSA |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 20ns |
| Typical Fall Time | 0.007μs |
| Isolation Voltage | 3750V ac |
Key Features
- Features a surface mount design with an 8-pin PDIP package for easy PCB integration.
- Operates with a maximum forward voltage of 1.7 V ensuring efficient signal transfer.
- Provides high isolation voltage of 3750 V AC for robust protection.
- Includes two channels with DC input current type for precise control.
- Typical rise time of 20 ns and fall time of 0.007 μs for fast response.
- Operates reliably within a temperature range of -40°C to 85°C.
- Complies with UL1577, IEC/EN/DIN EN 60747-5-5, and CSA standards.
- Offers logic gate output enabling versatile digital interfacing.
Product Description
Broadcom HCPL-2232-300E is a DC input 2-channel optocoupler featuring a surface mount 8-pin PDIP package designed for electrical isolation in electronic and industrial equipment. Its compact form factor facilitates easy incorporation on printed circuit boards.
This optocoupler is optimized for high isolation voltage up to 3750 V AC, providing safe isolation between input and output circuits. The maximum forward voltage is rated at 1.7 V, allowing energy-efficient signal transmission with minimal loss.
The device includes two independent channels and operates with a DC input current type, suitable for multiple digital control scenarios. It exhibits a typical rise time of 20 nanoseconds and an exceptionally low fall time of 0.007 microseconds for rapid switching performance, supporting fast data integrity and response.
Designed to function over industrial temperature ranges from -40°C to 85°C, the HCPL-2232-300E is reliable for harsh environmental conditions found in manufacturing, automation, and control systems. It features a logic gate output, allowing direct interfacing with logic circuits without additional signal conditioning.
Certified under recognized global standards including UL1577, IEC/EN/DIN EN 60747-5-5, and CSA, this optocoupler ensures compliance with safety and quality requisites in electronic design.
Surface mount 8-pin PDIP package offers easy PCB integration. Maximum forward voltage rating of 1.7 V ensures efficient operation. High isolation voltage of 3750 V AC for robust circuit protection. Two independent channels with DC input current type for accurate control.
Fast response times: 20 ns rise time, 0.007 µs fall time. Wide operating temperature range from -40°C to 85°C for industrial environment use. Logic gate output compatible with digital logic circuits. Compliance with UL1577, IEC/EN/DIN EN 60747-5-5, and CSA standards.
Commonly used within industrial automation, manufacturing electronic controls, signal isolation in power supplies, and other scenarios requiring reliable electrical isolation with fast switching capabilities. The HCPL-2232-300E enhances circuit safety and signal integrity in complex systems. Explore more in the Electronics Components category on EnvMart for related Optocouplers and isolators.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is rated at 1.7 V, allowing for efficient signal transmission with minimal loss.
It provides a high isolation voltage of 3750 V AC, ensuring robust protection between input and output circuits.
This unit exhibits a typical rise time of 20 ns and a fall time of 0.007 μs, supporting rapid switching performance.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
This model features two independent channels, allowing for precise control in various applications.
It operates with a DC input current type, which is suitable for multiple digital control scenarios.
It comes in a surface mount 8-pin PDIP package, designed for easy integration on printed circuit boards.
The HCPL-2232-300E complies with UL1577, IEC/EN/DIN EN 60747-5-5, and CSA standards, ensuring safety and quality in electronic design.
The maximum input current is rated at 10 mA, which allows for effective operation in various applications.
The logic gate output allows for direct interfacing with logic circuits without the need for additional signal conditioning.
It is commonly used in industrial automation, manufacturing electronic controls, and signal isolation in power supplies.
This model is packaged in a tape and reel format, which facilitates automated assembly processes.
