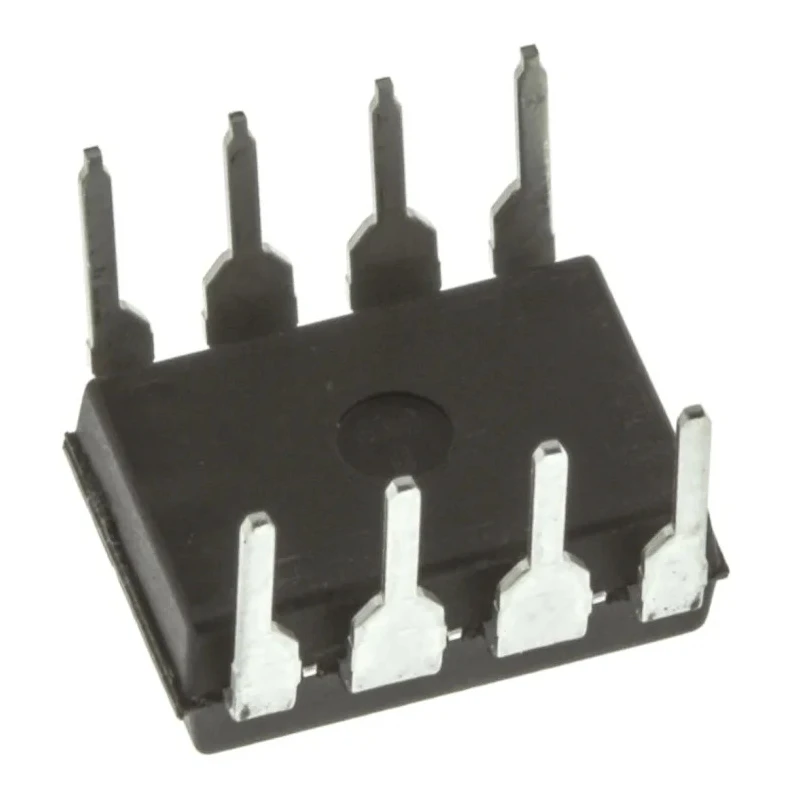

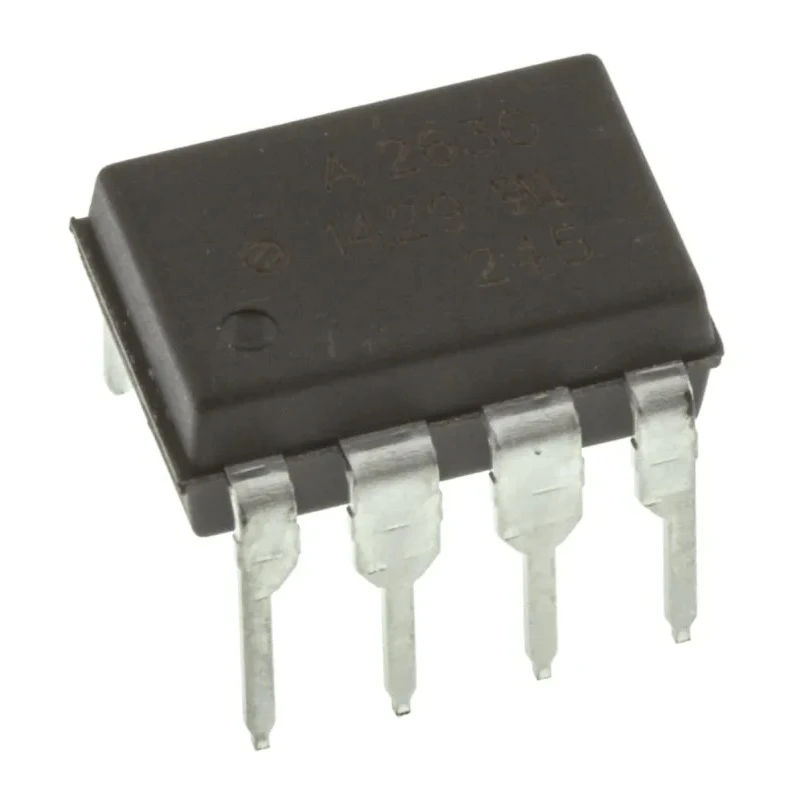

Broadcom DC Input 2-Channel Optocoupler Through Hole 8-Pin DIP HCPL-2630-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2630-000E |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 2 |
| Standards/Approvals | CSA, UL |
| Maximum Forward Voltage | 1.75V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 24ns |
| Typical Fall Time | 10ns |
| Automotive Standard | AEC-Q100 |
Key Features
- Designed for isolated communication in industrial power systems and automation.
- Features 2 channels with transistor output and DC input signal type.
- Supports a maximum forward voltage of 1.75 V and input current up to 20 mA.
- Typical rise and fall times of 24 ns and 10 ns respectively ensure fast switching.
- Industrial-grade operating temperature range from -40°C to 85°C.
- Complies with standards CSA and UL with automotive standard AEC-Q100 certification.
- Packaged in a tube for ease of insertion and handling during assembly.
Product Description
Broadcom HCPL-2630-000E is a DC Input 2-Channel Optocoupler designed for use in industrial, automation, power supply, and communication applications requiring isolated logic signal interfaces. This device features a through-hole mounting style and an 8-pin Dual In-line Package (DIP) suitable for standard PCB assembly methods.
The optocoupler includes transistor outputs with DC input current type, supporting a maximum forward voltage of 1.75 V and maximum input current up to 20 mA. It provides fast switching with typical rise and fall times of 24 ns and 10 ns respectively, enabling high-speed digital interface protocols.
Operating reliably across a wide temperature range from -40°C up to 85°C, the HCPL-2630-000E meets industrial and automotive application requirements, supported by CSA and UL approvals as well as AEC-Q100 automotive standard compliance.
Its packaging in tubes facilitates automated or manual machine insertion, thus enhancing production efficiency. The high isolation voltage rating of 3.75 kVrms ensures safety and noise immunity between input and output circuits.
Isolated digital communication for factory automation and power systems. Two channels for dual-signal transmission in a single device. Through hole 8-pin DIP package for easy mounting and soldering. Fast switching times suitable for logic gate functions.
Wide operating temperature range supports harsh environments. Certified to CSA, UL standards with AEC-Q100 automotive approval. Packaged in tubes ready for insertion into machinery. This Broadcom optocoupler is ideal for industrial power, automation control, medical, and communication equipment where noise isolation and signal integrity are critical.
Explore more Optocoupler and electronic component options at EnvMart for reliable industrial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the HCPL-2630-000E is 20 mA.
This optocoupler operates reliably within a temperature range of -40°C to 85°C.
It provides a transistor output type.
The HCPL-2630-000E features 2 channels for dual-signal transmission.
The typical rise time is 24 ns.
It is packaged in a tube, facilitating ease of insertion and handling during assembly.
The maximum forward voltage is 1.75 V.
It complies with CSA and UL standards, as well as the AEC-Q100 automotive standard.
The mounting style is through hole, suitable for standard PCB assembly methods.
The typical fall time is 10 ns.
This optocoupler has 8 pins.
It supports a DC input signal type.
