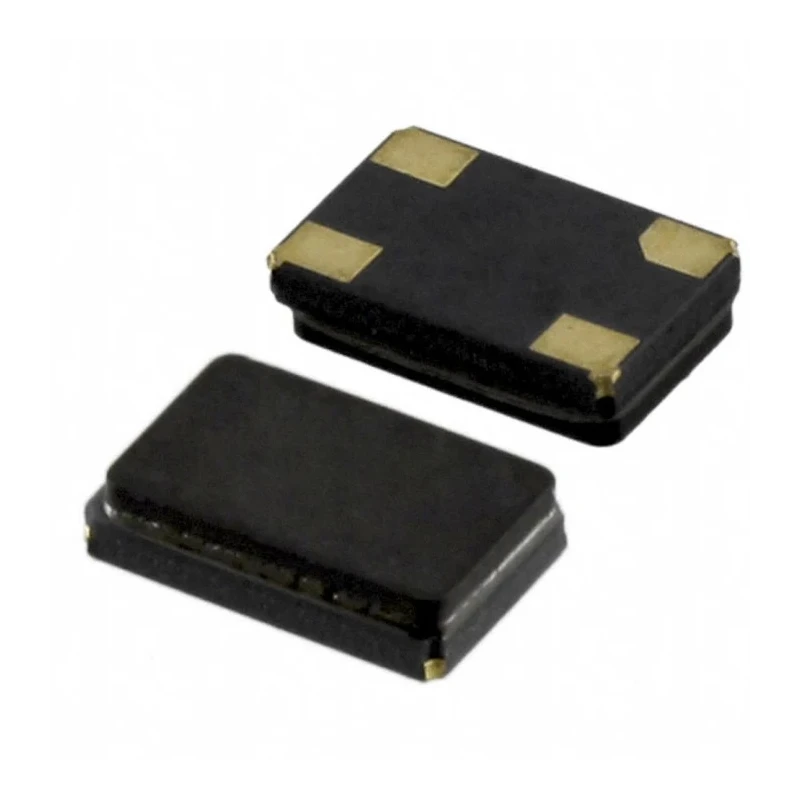

Abracon 25 MHz Crystal ±30 ppm Surface Mount 5 mm x 3.2 mm x 1.3 mm ABM3C

Abracon ABM3C 25 MHz Crystal ±30 ppm Surface Mount is a precision crystal unit designed for compact, high-density electronic circuits. Its low profile and stable frequency characteristics make it suitable for applications including wireless communications, pagers, PCMCIA cards, and communication test equipment.

The crystal features a surface mount ceramic package measuring 5 mm in length, 3.2 mm in width, and 1.3 mm in height, facilitating space-saving PCB layouts. It operates over a broad temperature range from -40°C to +85°C, ensuring reliability in diverse environments.

Key electrical parameters include a standard 25 MHz frequency with a tolerance and stability of ±30 ppm, and a load capacitance of 18 pF. The series resistance is tightly controlled at 50 Ω, optimizing signal integrity.

This crystal is environmentally compliant with RoHS and REACH standards and is supplied in tape and reel packaging, enabling efficient surface mount technology (SMT) assembly processes.

Common industrial and electronic use cases include integration into communication devices, test equipment, PCMCIA and wireless applications, supporting performance stability and miniaturization.

Choose Abracon ABM3C for dependable frequency control in demanding electronic component assemblies. For more products in Crystals, Oscillators & Resonators, explore EnvMart’s comprehensive catalog.

Standard frequency of 25 MHz ensures reliable oscillation performance. Surface mount package with compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height. Frequency tolerance and stability are tightly controlled at ±30 ppm.

Load capacitance is 18 pF suitable for typical oscillator circuits. Operates reliably in temperatures ranging from -40°C to +85°C. Series resistance of 50 Ω allows for efficient signal performance. RoHS and REACH compliant, meeting environmental manufacturing standards.

Packaged in tape and reel format for automated PCB assembly. Browse more Abracon electronic components at EnvMart.
