Abracon 25 MHz Crystal ±20 ppm Surface Mount 4-Pin Ceramic SMD ABM3B-25.000MHZ-B2-T

Free Delivery in India | Lowest Global Shipping Charges

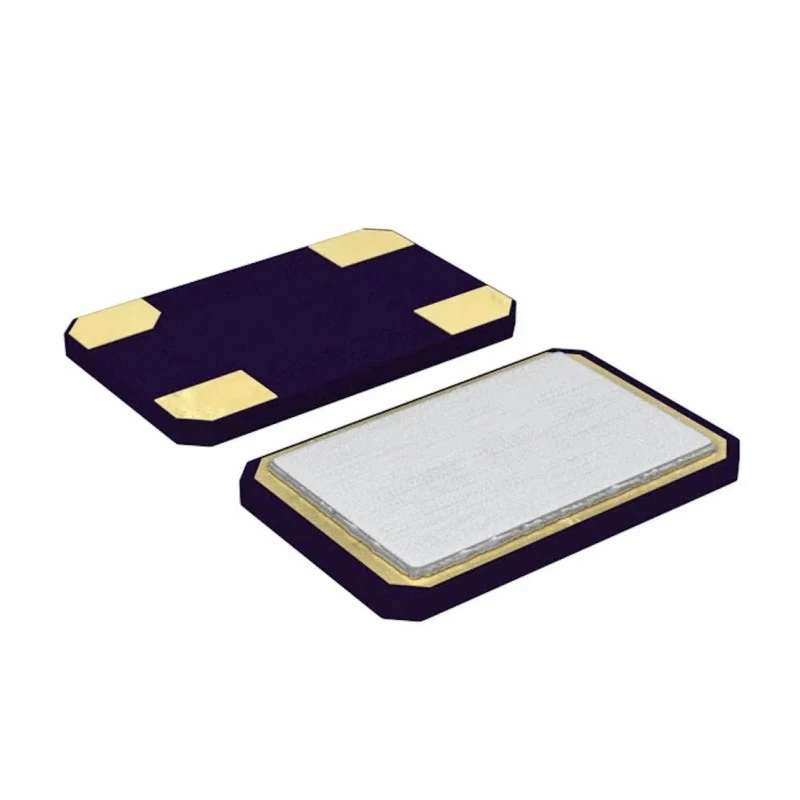

Abracon 25 MHz Crystal ±20 ppm Surface Mount 4-Pin Ceramic SMD ABM3B-25.000MHZ-B2-T

Name: Abracon 25 MHz Crystal ±20 ppm Surface Mount 4-Pin Ceramic SMD ABM3B-25.000MHZ-B2-T
Brand: Abracon
SKU: 150741
Price: 0.64 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.1mm
Length	5mm
Model	ABM3B
Packaging	Bulk
Width	3.2mm
Mount Type	Surface
Series	ABM3B
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	Pb RoHS, QS 9000, ISO 9001, ISO 9001:2008
Pin Count	4
Standard Frequency	25MHz
Load Capacitance	18pF
Series Resistance	200Ω
Standards/ApprovalsPb RoHS, QS 9000, ISO 9001, ISO 9001	2008

Key Features

Operates at a standard frequency of 25 MHz with ±20 ppm tolerance.
Features a surface mount ceramic package suitable for automated PCB assembly.
Four-pin configuration ensures easy and stable mounting.
Load capacitance is 18 pF supporting high-frequency circuit requirements.
Ceramic SMD with dimensions 5 mm length, 3.2 mm width, and 1.1 mm height.
Operates reliably between -20°C and 70°C operating temperature range.
Series resistance of 200 ohms ensures performance stability.
Meets Pb RoHS, QS 9000, ISO 9001 standards ensuring quality compliance.

Product Description

Abracon ABM3B-25.000MHZ-B2-T is a 25 MHz crystal oscillator designed for industrial and electronic applications requiring high precision and stability. It features a ceramic surface mount package with a metal lid to maintain reliability and accuracy under various environmental conditions. The 4-pin ceramic SMD crystal unit provides excellent frequency tolerance of ±20 ppm and stability up to ±50 ppm, ensuring robust signal integrity for communication and wireless devices.

With a load capacitance of 18 pF and series resistance of 200 ohms, this crystal unit supports fundamental mode oscillation suitable for cellular telephones, pagers, PCMCIA cards, and communication test equipment. Its compact dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height support high density PCB designs, while the operating temperature range of -20°C to +70°C allows for reliable performance under varied thermal conditions.

The ABM3B series meets essential industry standards including Pb RoHS compliance, QS 9000, and ISO 9001:2008 certifications, underscoring its suitability for automotive and commercial use cases. Originating from China, this crystal unit is supplied in bulk packaging, making it ideal for manufacturing and prototyping environments where volume and cost-efficiency are critical considerations.

Operates at 25 MHz frequency with ±20 ppm accuracy. Compact surface mount ceramic package with 4 pins. Load capacitance: 18 pF ensuring circuit compatibility. Temperature range: -20 to 70 degrees Celsius for versatile use.

Series resistance: 200 ohms for stable oscillation. Quality standards including RoHS and ISO certifications. Suitable for cellular, wireless, and communication equipment. Ceramic SMD package dimensions: 5 x 3.2 x 1.1 mm.

Packaging in bulk for high volume industrial use.

Suitable for applications in industrial, telecommunications, laboratory, and electronic manufacturing sectors. The Abracon ABM3B series is trusted for precise timing and frequency control tasks. Discover more products in the Crystals, Oscillators & Resonators category at EnvMart for your electronic component needs.
