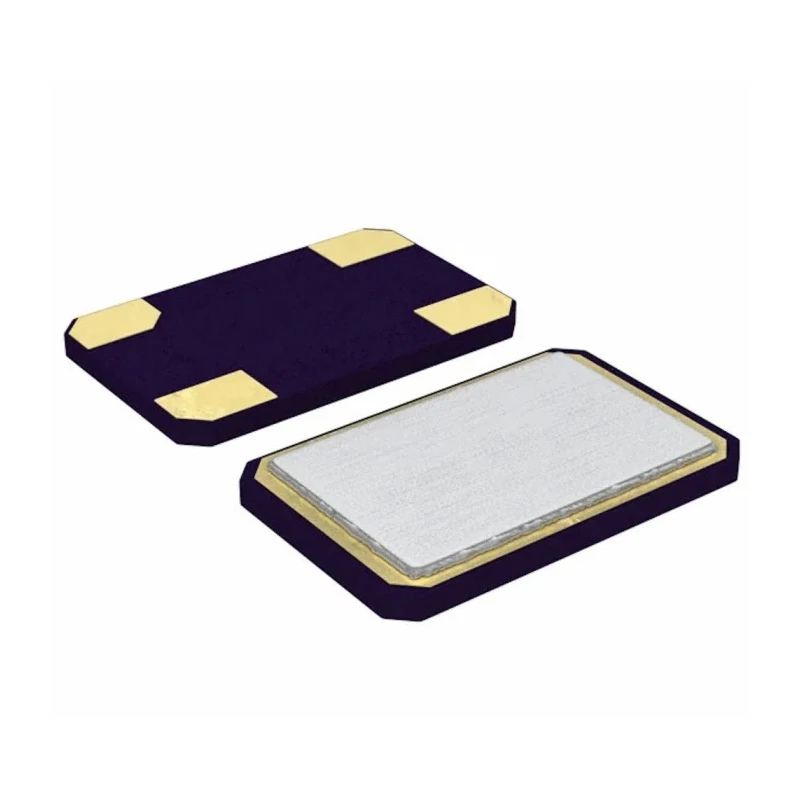

Abracon 12 MHz Crystal ±20 ppm Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B

Free Delivery in India | Lowest Global Shipping Charges

Abracon 12 MHz Crystal ±20 ppm Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B

Name: Abracon 12 MHz Crystal ±20 ppm Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B
Brand: Abracon
SKU: 150738
Price: 0.64 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.1mm
Length	5mm
Model	ABM3B
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ABM3B
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS, REACH
Standard Frequency	12MHz
Load Capacitance	18pF
Series Resistance	70Ω

Key Features

The crystal features a ceramic package with a metal lid ensuring reliability.
It has dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height suitable for dense PCB layouts.
Designed for surface mount applications with tape and reel packaging for automated assembly.
Load capacitance is 18 pF, optimized for communication devices and test equipment.
Operational temperature range is -20°C to 70°C, supporting varied environmental conditions.
Series resistance is 70Ω, suitable for fundamental mode oscillation.
Compliant with RoHS and REACH standards for environmental safety.
Ideal for cellular phones, PCMCIA, pagers, and other wireless applications.

Product Description

Abracon ABM3B 12 MHz crystal is a high-quality surface mount device designed for precision frequency control in electronic circuits. Packaged in a ceramic case with a metal lid, this crystal offers stability and reliability in demanding applications. Its compact form factor measuring 5 mm in length, 3.2 mm in width, and 1.1 mm in height allows for space-efficient PCB design.

The ABM3B series crystal operates at a frequency tolerance of ±20 ppm and a frequency stability of ±50 ppm, making it suitable for high-density applications where accuracy is critical. The device features a load capacitance of 18 pF with a series resistance of 70Ω, functioning in fundamental mode. The crystal supports an operational temperature range from -20°C to 70°C, enabling its usage in diverse industrial, communication, and test equipment environments.

Packaged with tape and reel for efficient manufacturing, the Abracon ABM3B crystal complies with RoHS and REACH environmental standards. Typical use cases include cellular telephones, pagers, PCMCIA devices, wireless modules, and various communication and test equipment. Its robust design and precise electrical characteristics ensure dependable performance in commercial, industrial, and laboratory settings.

The crystal’s ceramic SMD package and metal lid guarantee enhanced protection and performance. Surface mount type allows for modern automated assembly processes. Compliant with international environmental standards including RoHS and REACH.

Superior frequency tolerance and stability ensure reliable signal generation. Suitable for applications demanding high density and compact footprint components. Wide temperature range enables deployment in various industrial conditions.

Ideal for communication devices including cellular phones and test equipment. Tape and reel packaging supports mass production efficiency. Explore more precision electronic components and crystals with Abracon’s trusted product range at EnvMart.
