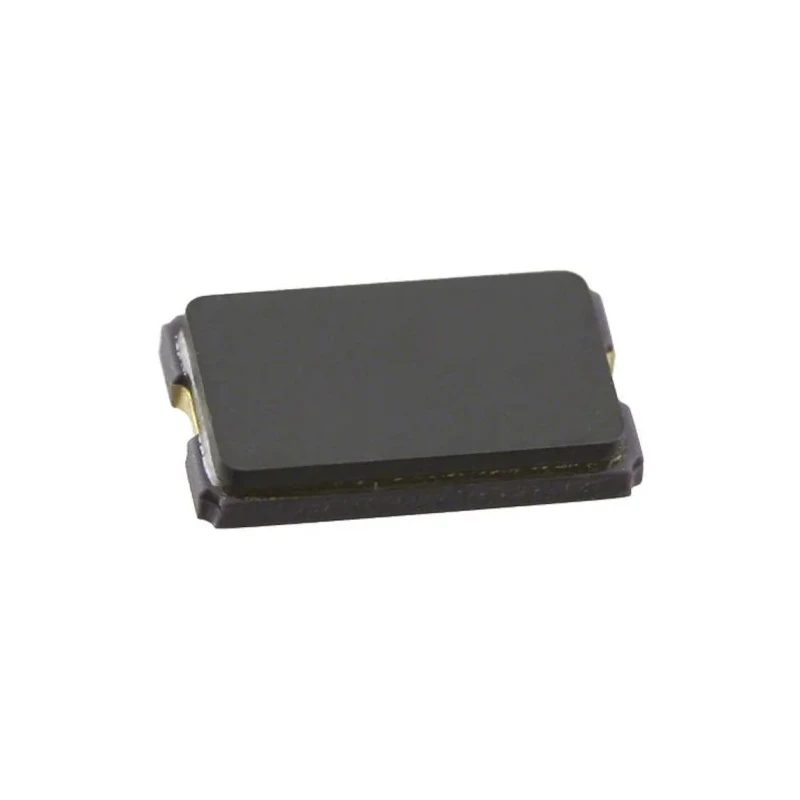

Abracon 13.56 MHz Crystal ±10 ppm Load Capacitance 4pF Surface Mount DFN 2-Pin 0.6 x 2.5 x 2 mm ABM8W

Free Delivery in India | Lowest Global Shipping Charges

Abracon 13.56 MHz Crystal ±10 ppm Load Capacitance 4pF Surface Mount DFN 2-Pin 0.6 x 2.5 x 2 mm ABM8W

Name: Abracon 13.56 MHz Crystal ±10 ppm Load Capacitance 4pF Surface Mount DFN 2-Pin 0.6 x 2.5 x 2 mm ABM8W
Brand: Abracon
SKU: 150643
Price: 0.52 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	0.6mm
Length	2.5mm
Model	ABM8W
Packaging	Reel
Width	2mm
Mount Type	Surface
Series	ABM8W
Maximum Operating Temperature	70°C
Package Type	DFN
Minimum Operating Temperature	-20°C
Standards/Approvals	REACH, RoHS
Pin Count	2
Standard Frequency	13.56MHz
Load Capacitance	4pF
Series Resistance	100Ω

Key Features

This 2.5 x 2 x 0.6 mm surface mount crystal features a low load capacitance of 4pF.
It has a frequency stability of ±10 ppm and series resistance of 100 ohms.
Designed with a low profile DFN 2-pin package suitable for compact electronic devices.
Operational temperature range from -20°C to 70°C ensures reliability in various environments.
Sealed ceramic package for long-term durability and performance stability.
Ideal for Bluetooth, Near Field Communication, M2M connectivity, and other wireless applications.
Manufactured to comply with REACH and RoHS standards.
Packaged on reels for efficient automated assembly processes.

Product Description

Abracon ABM8W 13.56 MHz crystal oscillator with ±10 ppm frequency tolerance and load capacitance of 4pF is designed for energy-efficient wearable and IoT devices. Its low-profile 0.6 mm height DFN 2-pin surface mount package (2.5 mm length and 2 mm width) makes it an excellent choice for height-constrained PCB layouts.

This crystal provides a series resistance of 100Ω, ensuring reliable operation within a temperature range of -20°C to 70°C, suitable for most commercial and industrial applications. The ceramic DFN package is seam-sealed to guarantee long-term stability and performance.

The ABM8W series is ideally suited for wireless modules including Bluetooth Low Energy, Near Field Communication (NFC), Machine-to-Machine (M2M) connectivity, and other ISM band communications. Its ultra-low power design supports battery-powered devices and wearable electronics.

Compliant with REACH and RoHS standards, this component supports environmentally conscious design practices and regulatory requirements. The reel packaging facilitates high-volume manufacturing and automated pick-and-place assembly methods.

This 13.56 MHz crystal offers ±10 ppm frequency tolerance for precise timing. Low load capacitance of 4pF minimizes power consumption. Compact DFN 2-pin package suits space-constrained designs. Operational temperature from -20°C to 70°C ensures wide usability.

Series resistance of 100 ohms supports stable oscillator performance. Seam-sealed ceramic package ensures long-term reliability. Suitable for IoT devices, wearables, NFC, Bluetooth, and M2M communication. Reel packaging supports automated PCB assembly processes.
