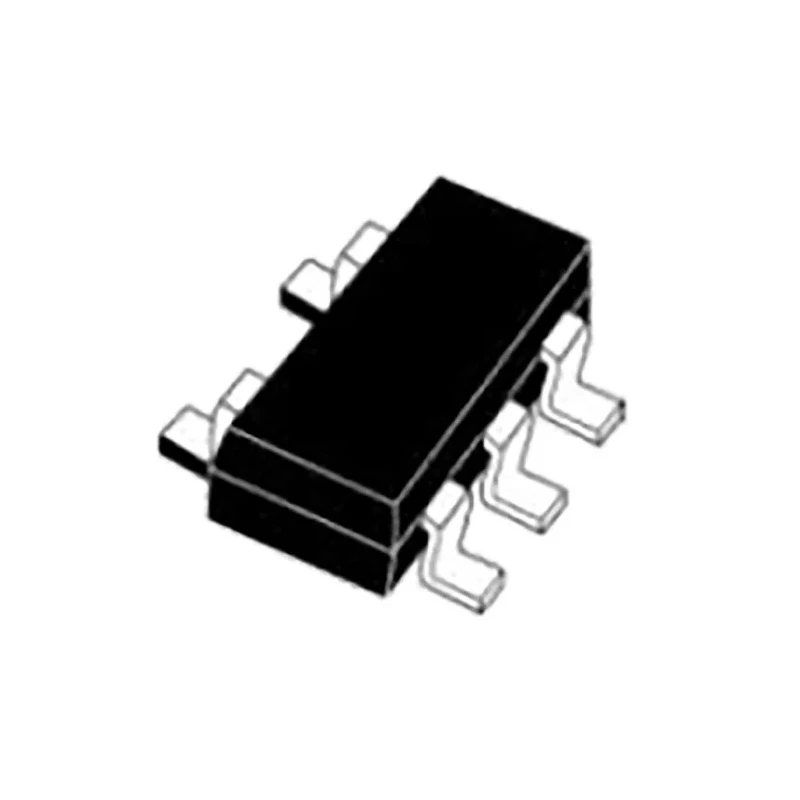

STMicroelectronics 4-Element Uni-Directional TVS Diode, 150 W Peak Pulse Power, 5-Pin SOT-323 Package ESDA6V1W5

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 4-Element Uni-Directional TVS Diode, 150 W Peak Pulse Power, 5-Pin SOT-323 Package ESDA6V1W5

Name: STMicroelectronics 4-Element Uni-Directional TVS Diode, 150 W Peak Pulse Power, 5-Pin SOT-323 Package ESDA6V1W5
Brand: STMicroelectronics
SKU: 150113
Price: 0.27 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1mm
Length	2.2mm
Model	ESDA6V1W5
Width	1.35mm
Mount Type	Surface
Series	ESDAxxxWx
Maximum Operating Temperature	125°C
Package Type	SOT-323
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements per Chip	4
Diode Configuration	Common Anode
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	6.1V
Maximum Reverse Stand-off Voltage Vwm	3V
Peak Pulse Power Dissipation Pppm	150W
Test Current It	1mA
Maximum Reverse Leakage Current	1μA

Key Features

Uni-directional configuration with common anode for reliable transient voltage suppression.
Peak pulse power rating of 150 W ensuring robust protection against voltage spikes.
Operating voltage range includes minimum breakdown voltage of 6.1 V and maximum reverse stand-off voltage of 3 V.
Compact surface mount SOT-323 package with 5 pins and four elements per chip.
Wide operating temperature range from -40°C to 125°C suitable for industrial applications.
Low maximum reverse leakage current of 1 μA to minimize power loss during normal operation.
Test current of 1 mA ensures performance stability under transient conditions.
Ideal for transient voltage suppression in electronic circuits requiring ESD protection.

Product Description

STMicroelectronics ESDA6V1W5 is a 4-element uni-directional TVS diode designed for effective transient voltage suppression, providing ESD protection in electronic circuits.

This device offers a high peak pulse power dissipation rating of 150 W, making it suitable for protecting sensitive components from voltage surges, spikes, and electrostatic discharges.

It features a common anode diode configuration and is packaged in a compact 5-pin SOT-323 surface-mount package, facilitating easy integration into modern PCB designs requiring minimal space.

The diode delivers a minimum breakdown voltage of 6.1 V and a maximum reverse stand-off voltage of 3 V, ensuring fast reaction to transient voltage spikes with minimal leakage current up to 1 μA, enhancing energy efficiency during normal operation.

Operating robustly over a wide temperature range from -40°C to 125°C, ESDA6V1W5 is suited for diverse industrial, electronic manufacturing, telecommunications, and instrumentation applications requiring reliable ESD protection.

Its small physical dimensions with 2.2 mm length, 1.35 mm width, and 1 mm height help conserve PCB space while offering four diode elements per chip for multi-line protection. This standard ESDAxxxWx series product is not certified for automotive requirements but complies fully with industry norms for discrete semiconductor protection devices.

Uni-directional common anode diode configuration. Peak pulse power dissipation rating of 150 W. Low reverse leakage current of 1 μA at maximum stand-off voltage. Compact 5-pin SOT-323 surface mount package. Wide operating temperature range of -40°C to 125°C.

Provides ESD protection with four elements per chip in Transil™ array.

This TVS diode is essential in protecting electronics in industrial, telecommunications, computing, and other sensitive equipment from damaging transient voltages and electrostatic discharge events.
