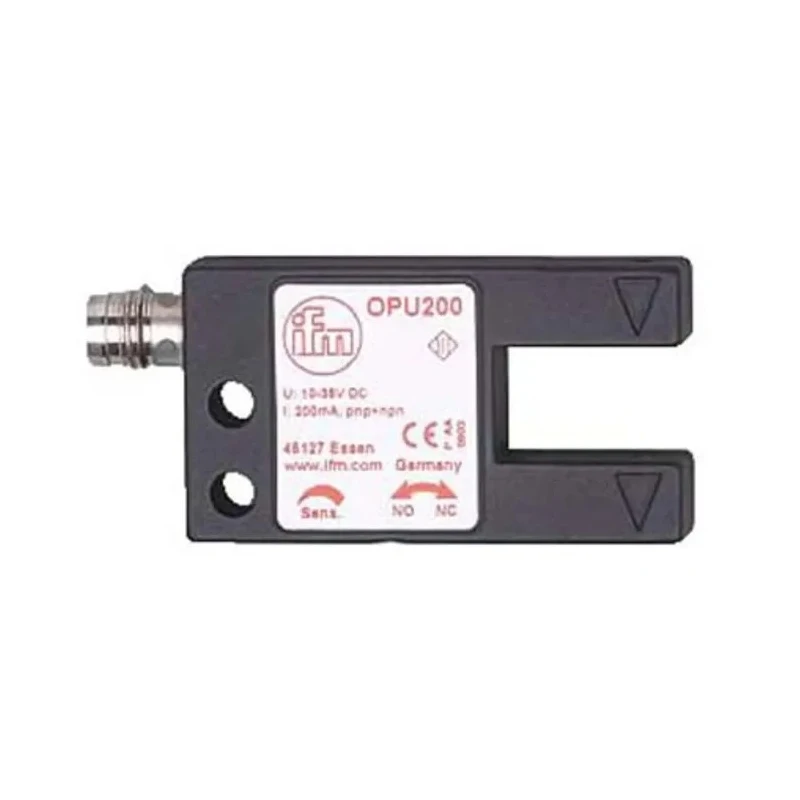

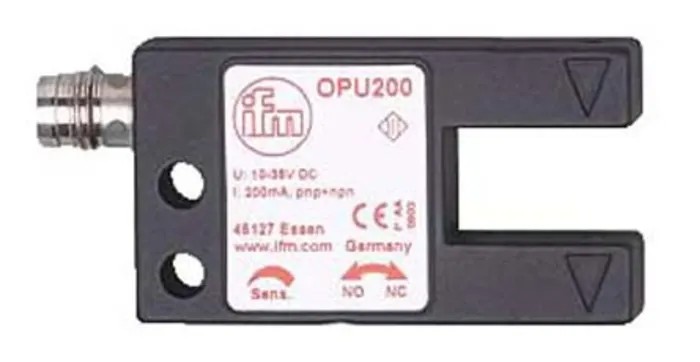

ifm electronic Through Beam Photoelectric Sensor Fork Style NPN/PNP Output Quick Disconnect IP67 Rated

ifm electronic OPU200 is a precision through beam Photoelectric Sensor in fork style designed for robust industrial applications. It features a die cast zinc body providing mechanical stability and resistance to distortion. The sensor ensures quick setup with no transmitter-receiver alignment needed, simplifying installation and reducing downtime.

With a detection range greater than 0.3 mm, it is ideal for part monitoring in feeders, handling systems, and applications such as belt edge or double feed detection. The quick disconnect terminal supports fast wiring and maintenance activities.

Equipped with an LED light source and IO-Link interface, the sensor allows easy communication and integration into automated systems. Its operating temperature range from -25°C to 60°C and IP67 protection rating enable operation in harsh industrial and manufacturing environments.

The sensor supports selectable light-on and dark-on modes via a rotary switch for flexible application adaptation. It has a maximum DC voltage rating of 35 V dc and can handle a maximum current of 40 mA.

Certified under CE and cULus standards, it ensures compliance with industrial safety and electromagnetic compatibility requirements. Manufactured in Germany, it reflects high quality and precision expected from ifm electronic products.

Common applications include automation control, factory assembly lines, packaging machinery, and quality monitoring in electronics and mechanical manufacturing sectors. The OPU200 comes as a single unit with the metal housing, quick disconnect interface, and integrated electronics designed for demanding sensor tasks in diverse industrial domains.

Robust die cast zinc housing ensures long-lasting performance. Quick disconnect terminal for easy installation. Detects glass materials with precision exceeding 0.3 mm detection range. Operating temperature range from -25°C to 60°C suitable for industrial environments.

Equipped with LED light source and IO-Link interface for advanced control. Supports light-on/dark-on modes selectable via rotary switch. Maximum DC voltage rating of 35 V dc and max current of 40 mA. Certified to CE and cULus standards for safety and reliability.

IP67 rated for dust tight and water immersion protection. Browse the Electronics & Electricals category on EnvMart for more advanced sensor solutions from ifm electronic and other leading brands.
