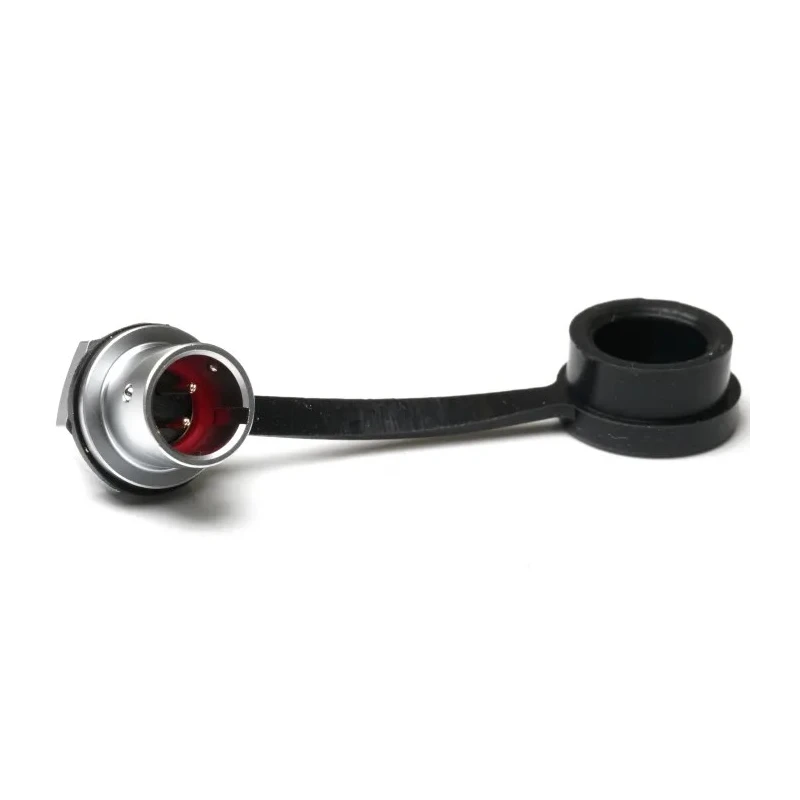

RS PRO Circular Connector 2 Contacts Front Standard Socket Male 180V 5A IP67 206-5019
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 180V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Temperature range | -40∼+85 °C |
| Model | 206-5019 |
| IP Rating | IP67 |
| Mount Type | Front |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Current Rating | 3A to 5A |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Insulation resistance | 2000 MΩ |
| Minimum Operating Temperature | -40°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Mating Type | Push Pull |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Cable Outer Diameter | 4-6.5 mm |
| Voltage Power Rating | 125 V or 180 V |
| Panel-hole cut-out size | 10 mm |
Key Features
- This circular connector supports a voltage rating of 180V and a current of 5A.
- The connector features a push-pull mating mechanism for secure coupling.
- It has a chrome plated brass housing with gold-plated brass contacts for durability and corrosion resistance.
- The temperature operation range is from -40°C to 85°C, suitable for harsh environments.
- With solder termination type, installation is straightforward for panel mount applications.
- It accommodates cable outer diameters ranging from 4 to 6.5 mm.
- Its IP67 rating ensures the connector is waterproof and dust tight, ideal for rugged industrial use.
- Designed for applications in medical, communication, test & measurement industries.
Product Description
RS PRO 206-5019 Circular Connector is a high-quality industrial circular connector designed for panel mount applications requiring secure, waterproof electrical connections. It features 2 male contacts configured in a front mount, standard size socket suitable for handling voltages up to 180V and currents up to 5A. Constructed with a chrome plated brass housing combined with gold-plated brass contacts, this connector offers excellent durability and corrosion resistance across a temperature range from -40°C to 85°C.
The connector utilizes a push-pull mating type ensuring a quick and reliable coupling system. Installation is facilitated by solder termination and compatible with cables having outer diameters between 4 and 6.5 mm. Its IP67 ingress protection rating guarantees dust-tight and waterproof performance, making this product ideal for demanding industrial environments such as medical instrumentation, communications equipment, and test and measurement devices.
The panel-hole cut-out size required for mounting is 10 mm, enabling easy integration into your custom electrical assemblies. The connector supports up to 2000 MΩ insulation resistance and is rated for 500 mating cycles, ensuring long-term reliability and stable electrical performance. Its application versatility covers data and power transmission needs, making it a preferred choice for engineers and technicians.
This 2-pin circular connector offers secure waterproof connections under IP67 standard. Gold-plated brass contacts reduce contact resistance and enhance signal integrity. The robust chrome plated brass housing provides mechanical strength and corrosion protection.
Push-pull coupling system allows efficient and secure mating operations. Wide temperature tolerance from -40°C to 85°C suits harsh industrial conditions. Compatible with cable diameters from 4 to 6.5 mm, supporting flexible installation.
Designed to withstand 500 mating cycles ensuring durability over long-term use. Ideal for medical, communications, and test & measurement industrial applications. Discover more in our Electronics & Electricals > Circular Connectors category for reliable RS PRO connectors and accessories to meet your industrial connectivity requirements.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This circular connector supports a voltage rating of 180V and a current rating of 5A.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The connector has an IP67 rating, ensuring it is waterproof and dust-tight.
It utilizes a solder termination type, facilitating straightforward installation for panel mount applications.
The panel-hole cut-out size required for mounting is 10 mm.
This model accommodates cable outer diameters ranging from 4 to 6.5 mm.
This connector features 2 male contacts.
It is constructed with a chrome plated brass housing and gold-plated brass contacts for durability and corrosion resistance.
The connector features a push-pull mating type, ensuring a secure and quick coupling system.
It is rated for up to 500 mating cycles, ensuring long-term reliability.
It is designed for applications in medical, communication, and test & measurement industries.
The insulation resistance is rated at 2000 MΩ, ensuring stable electrical performance.
