MEC IP67 Red Tactile Switch Push Button, 10.4 mm Actuator Length, SPST 50mA 24 V dc, Surface Mount IP67 4F Series

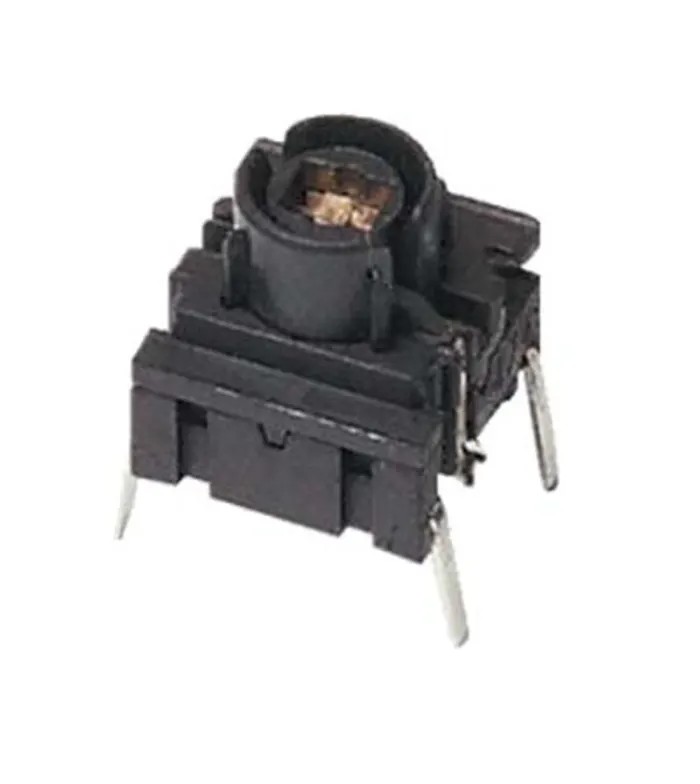

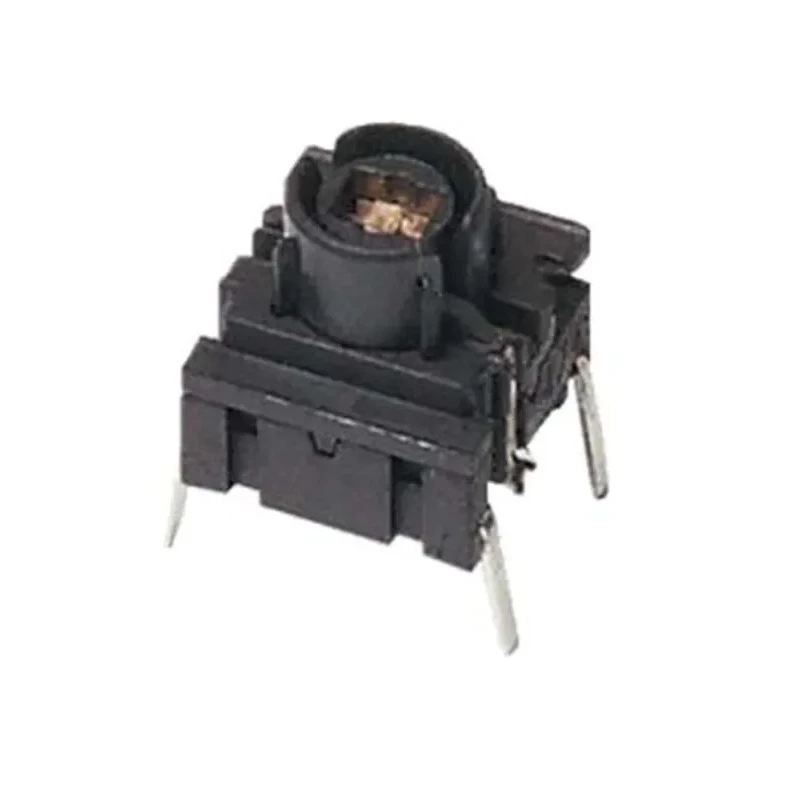

The MEC 4FTH982 IP67 Red Tactile Switch Push Button is part of the 4F series Multimec® illumec™ switches designed for industrial, commercial, and automation applications requiring reliable momentary tactile feedback. This tactile switch features a red push button actuator with a length of 10.4 mm, right-angle orientation, and is surface mount via through-hole terminals. It supports a single-pole single-throw (SPST) contact configuration with a maximum contact current of 50mA at 24 V dc, suitable for low voltage control circuits.

Constructed with high luminous intensity integrated LEDs, this switch is illuminated to improve operator visibility. It is sealed to IP67 standards, offering dust and water protection that makes it ideal for harsh environments in industrial machinery, automation controls, and instrumentation panels. The switch reliably operates over a temperature range of -40°C to 125°C and requires an operating force of 2.5N to ensure tactile responsiveness.

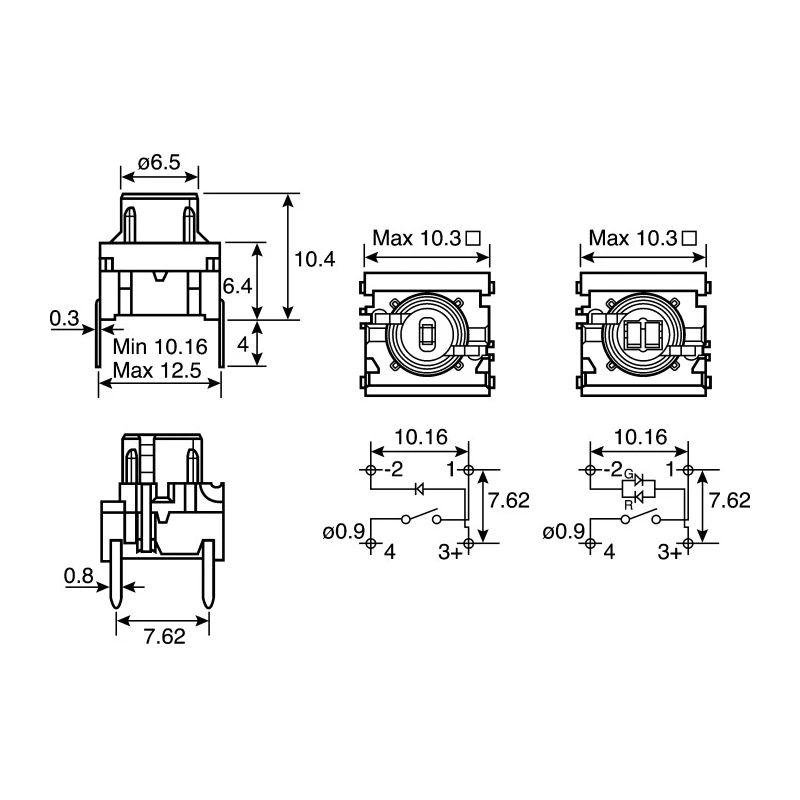

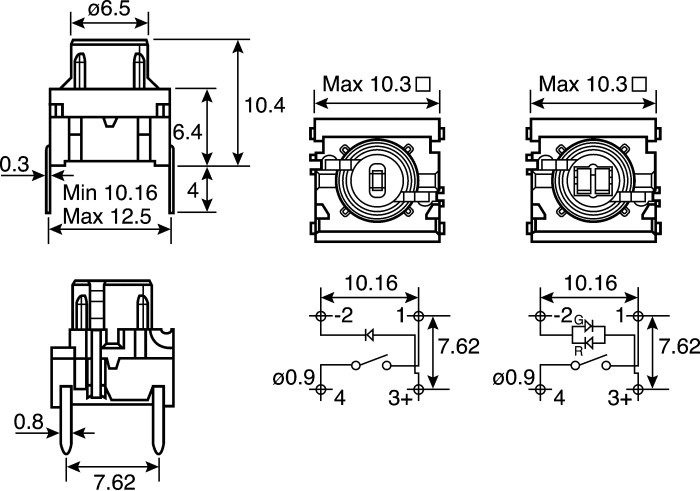

The mechanical life expectancy of this switch is rated at 10 million operations, delivering extended durability and reliability in continuous use conditions. The compact dimensions (length 12.5 mm, width 10.3 mm, height 10.4 mm) provide space-efficient installation on equipment panels or circuit boards.

Applications include electronic control units, instrumentation, automation systems, and equipment where tactile, illuminated, sealed switching is required. Its surface mount construction eases PCB assembly while through-hole terminals ensure robust mechanical and electrical connections.

With RoHS compliance, the MEC 4FTH982 meets environmental safety standards. The product is manufactured in Denmark with stringent quality control ensuring high reliability and performance.

This switch features SPST contact configuration for single-pole single-throw applications. Contact current rating is 50mA at 24 V dc suitable for low voltage control. Illuminated red push button actuator with 10.4 mm length and right-angle style.

Sealed to IP67 rating, providing full protection against dust and water ingress. Mechanical life rating of 10,000,000 operations for long-term reliability. Operating temperature range from -40°C to 125°C for versatile environmental tolerance.

Surface mount with through-hole terminals for secure PCB installation. Requires an operating force of 2.5N for tactile feedback. Explore similar Tactile Switches and push button solutions in the Electronics & Electricals category at EnvMart for industrial automation and control systems.
