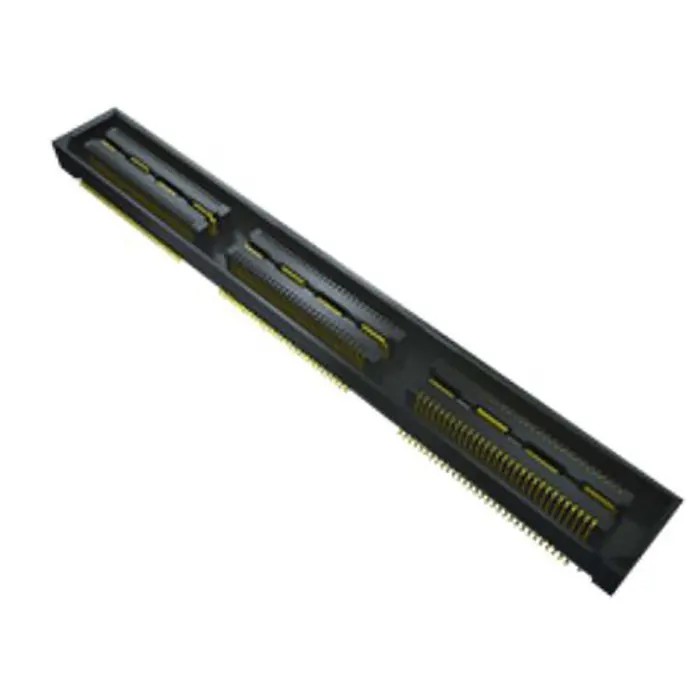

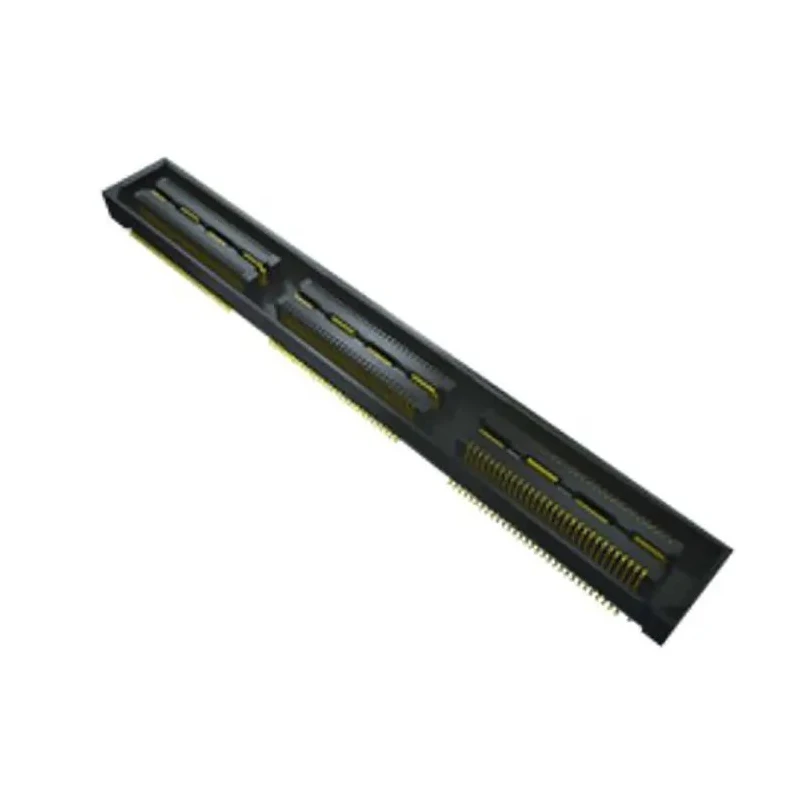

Samtec Right Angle Surface PCB Socket 40-Contact 2 Row 0.5 mm Pitch Solder QSH-020-01-F-D-DP-A-K-TR

Samtec QSH-020-01-F-D-DP-A-K-TR is a right angle surface mount PCB socket featuring a 40-contact, 2-row configuration with a fine 0.5 mm pitch. This socket is designed for high-speed and high-density board-to-board connections in demanding electronic applications.

The connector system utilizes phosphor bronze contacts with gold plating that assures excellent electrical conductivity and corrosion resistance. Its housing is made from Liquid Crystal Polymer, providing superior mechanical strength and thermal stability to withstand operating temperatures from -55°C to 125°C.

This socket supports high current up to 21.8A and is rated for 220V voltage, making it suitable for a wide range of industrial and commercial electronics including telecommunications, computing, and instrumentation.

With its right angle orientation and surface mount technology, the QSH socket ensures reliable mechanical and electrical connections while optimizing PCB space. It complies with RoHS environmental standards, reinforcing its suitability for modern electronics manufacturing requirements.

Features a 0.5 mm pitch suitable for compact PCB designs. Constructed with phosphor bronze contacts plated in gold for superior conductivity and durability. Housing made of Liquid Crystal Polymer ensures high mechanical and thermal stability.

Supports up to 21.8A current and operates at 220V voltage. Right angle surface mount design facilitates robust board-to-board connections. Operates reliably in temperatures ranging from -55°C to 125°C. Meets RoHS standards for environmental compliance.

Part of Samtec's QSH series, known for precision and high performance.

This PCB Socket is ideal for use in industrial electronics, telecommunications equipment, laboratory instrumentation, and manufacturing setups where reliable, high-density PCB connections are critical. Explore more Samtec connectors in the Electronics Components category on EnvMart.
