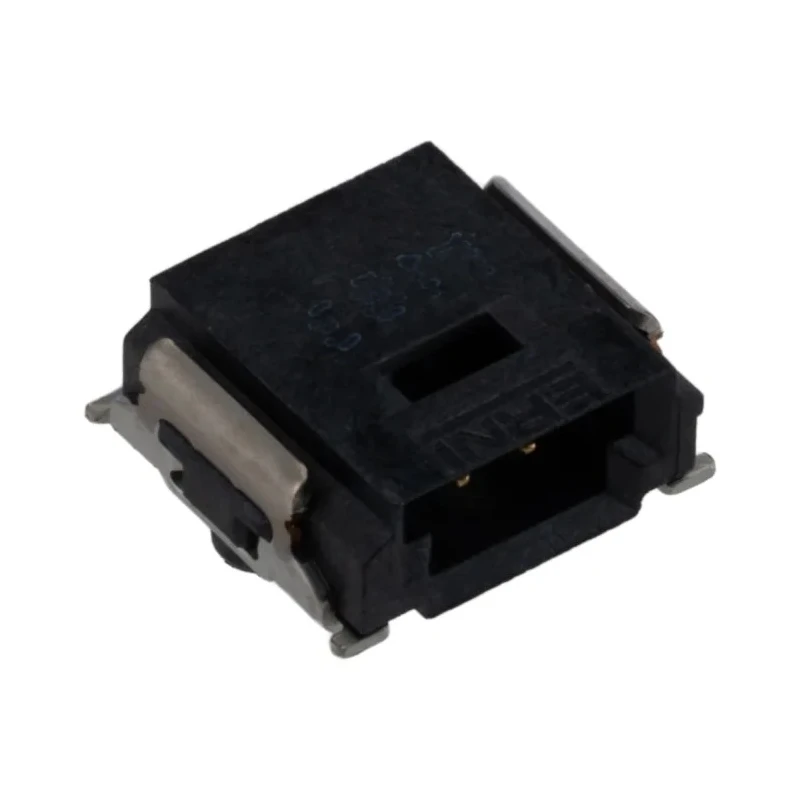

ERNI MiniBridge Series Right Angle Surface PCB Header 2 Contacts 1.27 mm Pitch 1 Row Shrouded 214011 / 214011-E

ERNI 214011 / 214011-E MiniBridge Series right angle surface PCB header is a high-quality electronic component designed for demanding applications requiring reliable connections and compact form factor.

This PCB header features 2 contacts with a 1.27 mm pitch in a shrouded, single row configuration, ensuring precise cable-to-board connectivity. The housing is made from liquid crystal polymer, which tolerates high temperatures and is suitable for lead-free reflow soldering processes used in modern electronics manufacturing.

The connector system is wire-to-board with a right angle orientation, optimized for surface mounting on printed circuit boards. Copper alloy contacts are gold plated to provide low contact resistance and corrosion resistance, essential for long-term durability and stable electrical performance.

Designed to support up to 4A current at 20°C, this connector is suitable for automotive sensors, industrial controllers, consumer electronics, and medical instrumentation. It operates reliably across a wide temperature range from -55°C to 100°C.

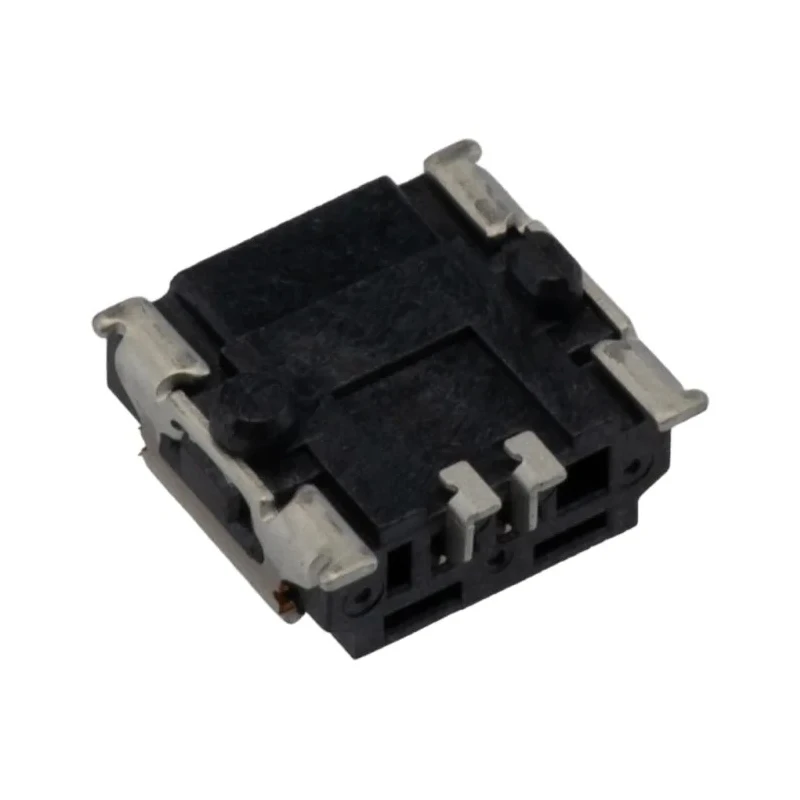

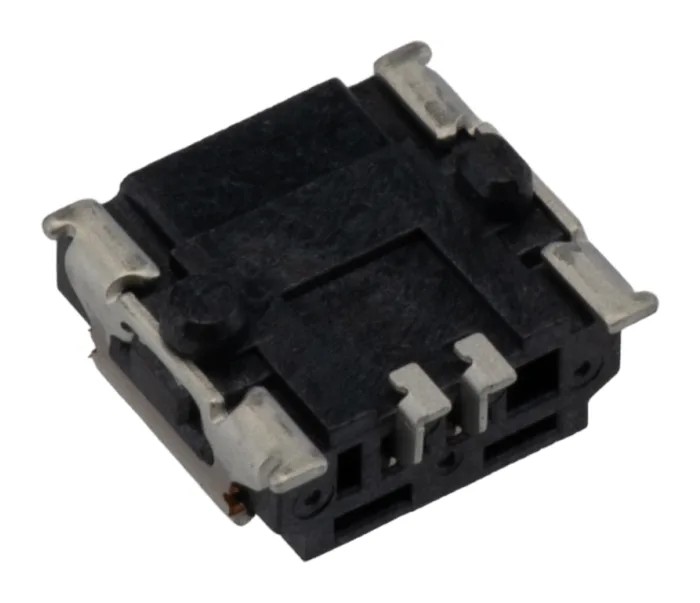

Additional features include ruggedized metal clips on both sides for strong retention force and two positioning pegs to ensure exact placement during PCB assembly. The pick-and-place cover enhances compatibility with automated manufacturing equipment.

High current capacity of 4A suitable for various electronic applications. Shrouded single row design improves connector protection and alignment. Durable liquid crystal polymer housing supports lead-free reflow soldering.

Gold-plated copper alloy contacts ensure low resistance and reliability. Right angle orientation with surface mount type for PCB assembly. Wide operating temperature range from -55°C to 100°C. Pick-and-place cover aids automated assembly processes.

Ruggedized retention clips for secure connector placement. Manufactured in Germany complying with industry quality standards. This MiniBridge Series PCB Header from ERNI is essential for industrial, automotive, consumer, and medical electronics requiring reliable, compact, and durable PCB connections.
