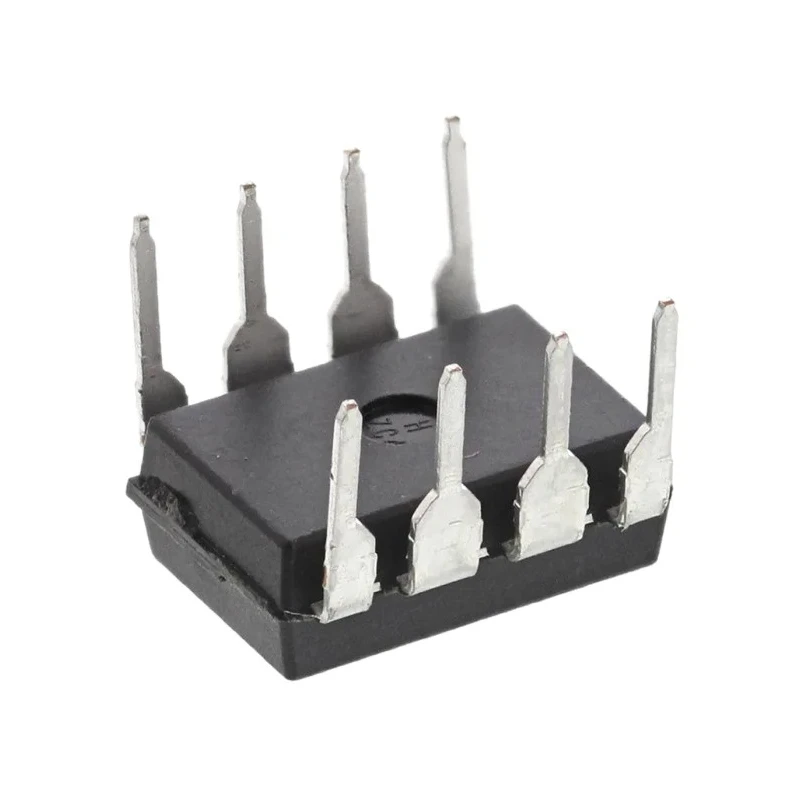

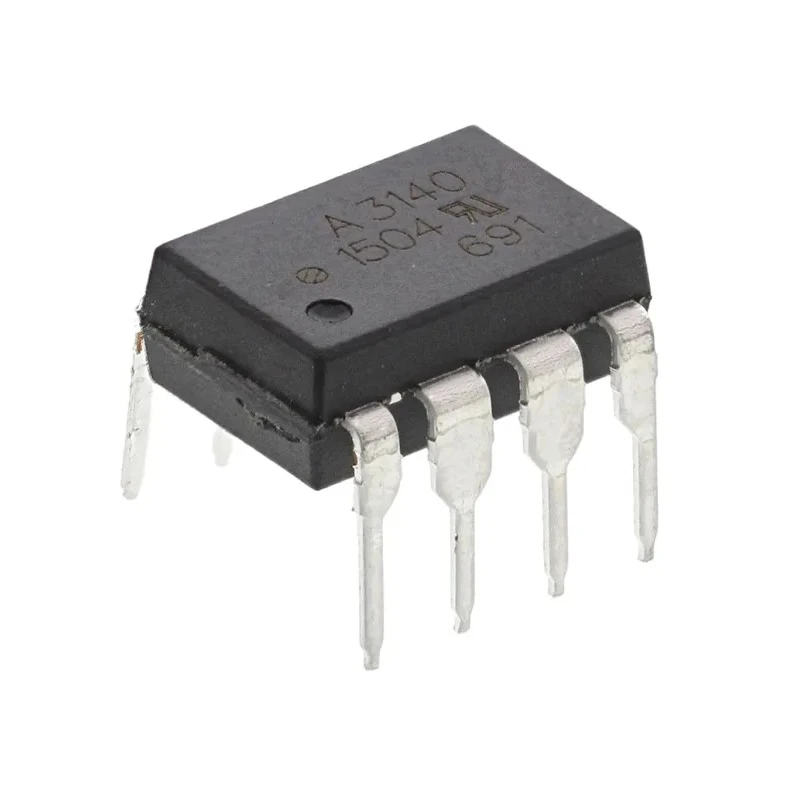

Broadcom DC Input Isolated Gate Driver Optocoupler, Through Hole, 8-Pin DIP HCPL-3140-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-3140-000E |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 12mA |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-2 UL CSA |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 50ns |
Key Features
- Optimized for driving IGBT and Power MOSFET transistors for fast switching applications.
- Features rail-to-rail output and high common mode rejection for reliable performance.
- Reinforced insulation supports high voltage isolation up to 3.75kVrms.
- Typical rise and fall time of 50ns ensures rapid response in control circuits.
- Operates reliably from -40°C to 100°C for diverse environmental conditions.
- Complies with IEC/EN/DIN EN 60747-5-2 and UL CSA standards for safety and quality.
- Package supplied in tube format facilitating easy handling and mounting.
- Input current type is DC with maximum forward voltage of 1.8V and maximum input current of 12mA.
Product Description
Broadcom HCPL-3140-000E is an isolated gate driver optocoupler featuring a DC input and transistor output in an 8-pin DIP through hole package. This device is crafted to provide electrical isolation between high-voltage power components and the low-voltage control circuitry, enhancing system safety and signal integrity.
The device is optimized for driving IGBT and Power MOSFET transistors, delivering rail-to-rail output and swift gate switching capabilities with typical rise and fall times of 50ns. Its high common mode rejection ratio (CMR) and reinforced insulation rating of 3.75kVrms allow it to withstand harsh electrical environments commonly encountered in industrial and automotive applications.
Operating over a wide temperature range from -40°C to 100°C, this optocoupler conforms to stringent IEC/EN/DIN EN 60747-5-2 and UL CSA standards, ensuring reliable performance and safety compliance across demanding use cases.
The component is mounted through hole on printed circuit boards via its 8-pin DIP package and supplied in tubes for straightforward manufacturing integration. Optimized isolated gate driver for IGBT and MOSFET transistor control.
High insulation voltage of 3.75kVrms for robust signal isolation. Fast switching times with 50ns typical rise and fall durations. Suitable for industrial, motor control, power conversion, and automotive applications. Meets international safety standards including IEC/EN/DIN EN 60747-5-2 and UL CSA.
Through hole 8-pin DIP packaging for reliable circuit board mounting.
Broadcom optocouplers deliver dependable isolation and protection of logic signals in power electronics, making them essential for industrial, laboratory, HVAC, and manufacturing equipment requiring high performance and safety. Explore EnvMart for a broad range of electronic components and Optocouplers by leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 100°C.
The typical rise time of the HCPL-3140-000E is 50ns.
This model uses DC input current.
The maximum input current for the HCPL-3140-000E is 12mA.
It has a high insulation voltage rating of 3.75kVrms, providing robust signal isolation.
This optocoupler complies with IEC/EN/DIN EN 60747-5-2 and UL CSA standards.
The package type is DIP, specifically an 8-pin through hole configuration.
It is suitable for industrial, motor control, power conversion, and automotive applications.
The fall time is also typically 50ns, similar to its rise time.
It is supplied in tube format, facilitating easy handling and mounting.
This model provides a transistor output type.
The minimum operating temperature for this optocoupler is -40°C.
