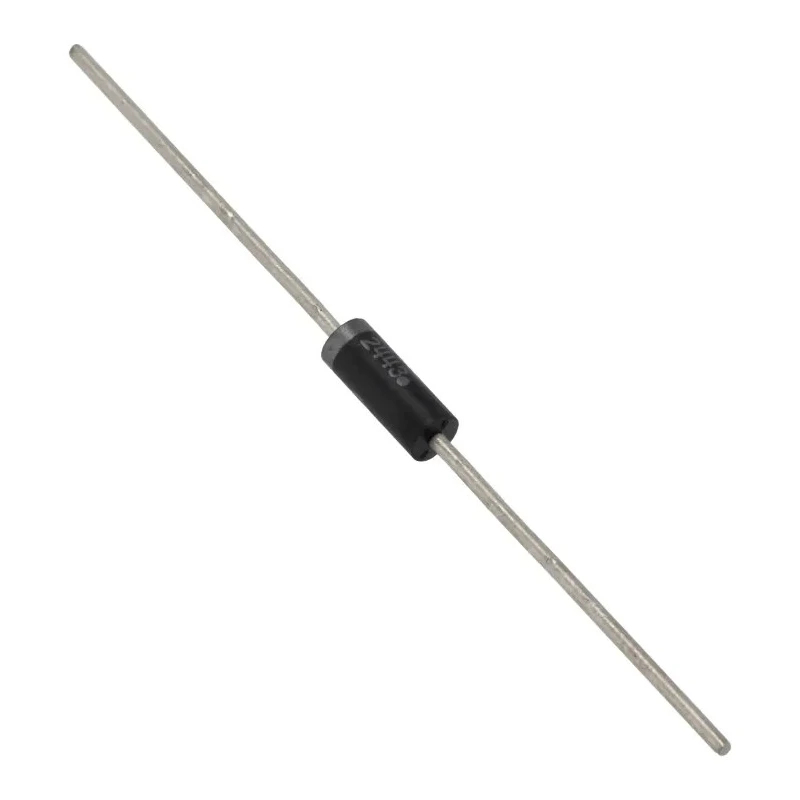

onsemi 25 V 5 Watt Zener Diode Single Through Hole 2-Pin DO-15 1N5360BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5360BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 25V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 4Ω |
| 25V Zener diode,1N5360B 5WBrand | ON Semiconductor |
Key Features
- This diode features a nominal Zener voltage of 25 V with ±5% tolerance.
- The maximum power dissipation is rated at 5 Watts for robust performance.
- Mounted through hole with axial leads facilitating easy PCB integration.
- The package type is DO-15 with a 2-pin configuration.
- The device supports operation in temperatures ranging from -65°C to 200°C.
- Low maximum reverse leakage current of 500 nA ensures minimal power loss.
- Maximum Zener impedance of 4 Ω allows precise voltage regulation.
- Corrosion resistant molded package provides protection in various environmental conditions.
Product Description
onsemi 1N5360BG Zener Diode is a high-quality semiconductor device designed for stable voltage regulation with a nominal Zener voltage of 25 V and power dissipation of 5 Watts. This single diode features a through-hole mount type with a DO-15 molded package, providing reliable mechanical and environmental protection.
Its axial leads facilitate straightforward PCB mounting, while the corrosion-resistant molded plastic package ensures durability in industrial and commercial environments. Operating temperature range from -65°C to 200°C makes it well-suited for diverse conditions.
The diode has a maximum reverse leakage current of 500 nA and maximum Zener impedance of 4 Ω, delivering efficient voltage regulation with minimal power loss. It uses silicon-oxide passivated junctions for superior operating characteristics and enhanced long-term reliability.
This device is ideal for use in industrial electronics, power supply voltage regulation, and overvoltage protection circuits. It belongs to the 1N53 series of Surmetic™ 40 axial-leaded Zener diodes by ON Semiconductor, known for high precision and performance.
Nominal Zener voltage: 25 V with ±5% tolerance. Maximum power dissipation: 5 W. Package: DO-15 axial lead through hole. Operating temperature: -65°C to 200°C. Maximum reverse leakage current: 500 nA. Maximum Zener impedance: 4 Ω.
Corrosion-resistant plastic molded package. Applications include industrial voltage regulation and protection. Explore the full range of Zener Diodes in the Semiconductor category at EnvMart for reliable and efficient voltage regulation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 25 V with a tolerance of ±5%.
The maximum power dissipation rating for this model is 5 Watts.
This diode comes in a DO-15 package type and features a through-hole mounting configuration with axial leads.
The operating temperature range for this model is from -65°C to 200°C.
The maximum reverse leakage current for this diode is 500 nA.
The maximum Zener impedance of this model is 4 Ω, allowing for efficient voltage regulation.
This diode has a 2-pin configuration.
The test current for this model is 50 mA.
This model features a single diode configuration.
The diode is housed in a corrosion-resistant molded plastic package, providing protection in various environmental conditions.
This diode is suitable for industrial voltage regulation and overvoltage protection circuits.
This diode belongs to the 1N53 series of Surmetic™ 40 axial-leaded Zener diodes by ON Semiconductor.
