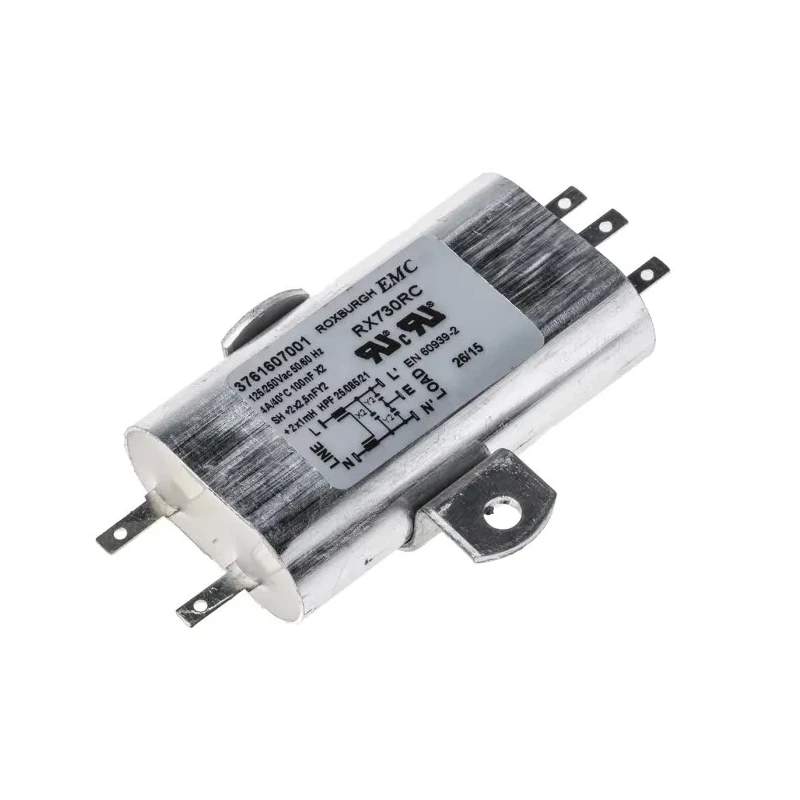

Roxburgh EMC Chassis Mount RFI Filter 4 A 250 V AC 60 Hz Tab Termination, 1 Phase RX730

Roxburgh EMC RX730 chassis mount RFI filter offers reliable electromagnetic interference suppression in electrical circuits operating at 4 A, 250 V AC and 60 Hz, designed primarily for sensitive low power electronic equipment installations.

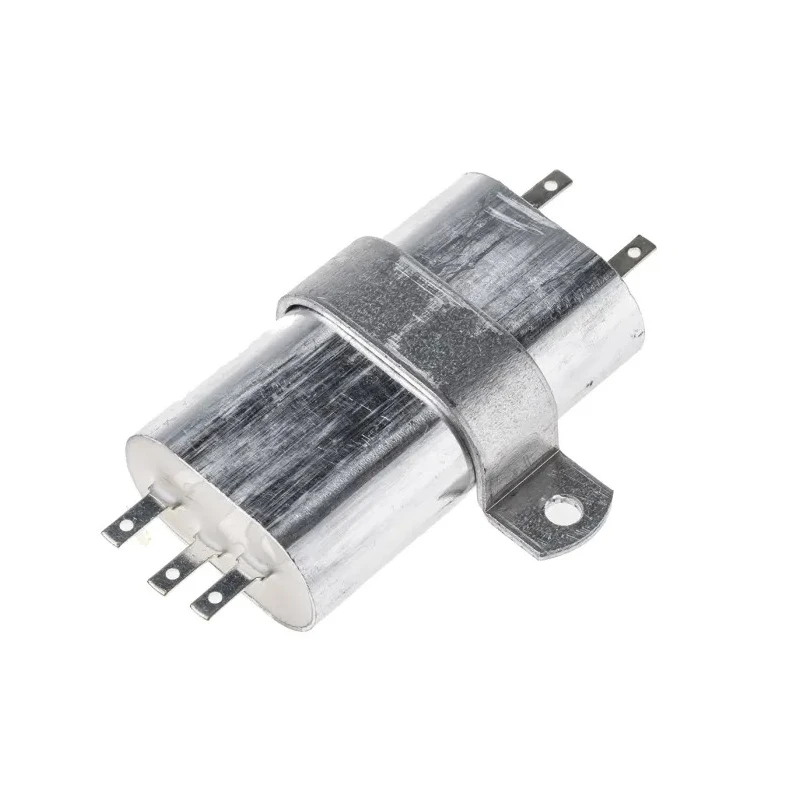

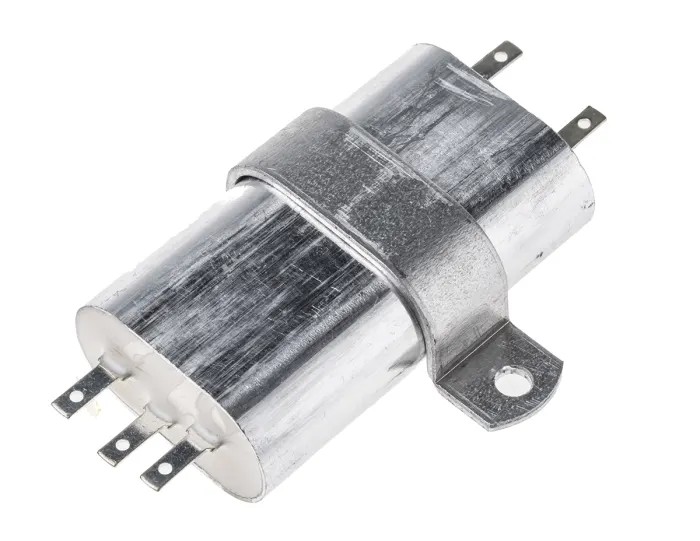

This filter belongs to the RX730 series featuring an ovaloid aluminium housing and is mounted conveniently on chassis using the included metal bracket. Termination is provided via tab connections for secure and straightforward wiring.

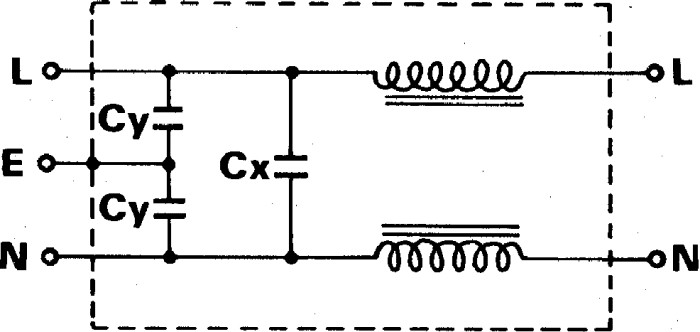

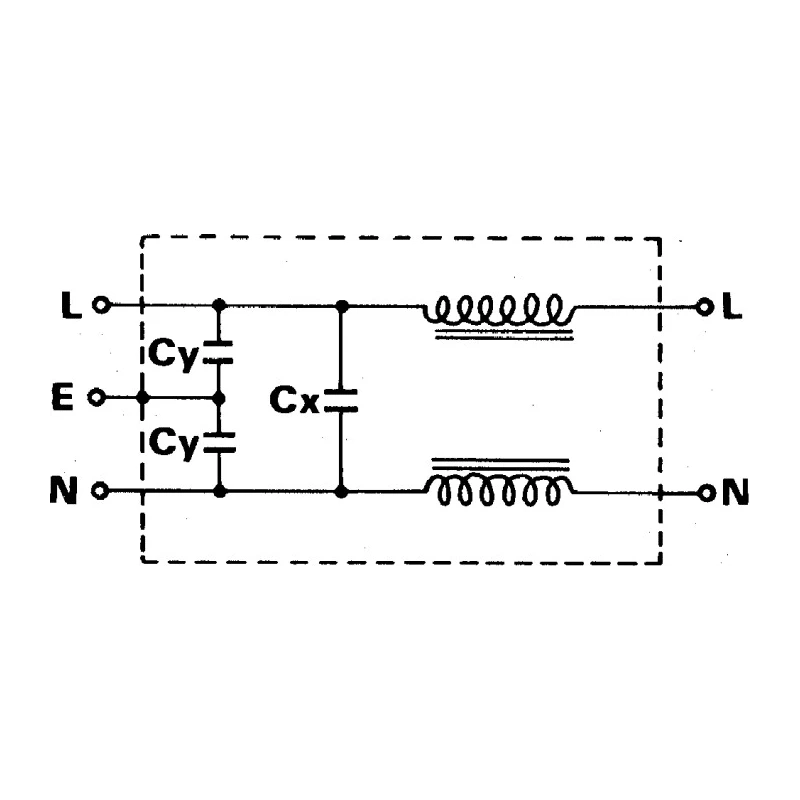

Electrical characteristics include a capacitance of 1 μF and an inductance of 2 mH, enabling efficient filtering of noise in single-phase systems. It handles continuous operating frequencies of 60 Hz with leakage current rated at 240 μA, maintaining low power loss.

The operating temperature range from -25°C to 85°C allows for use in varied industrial and commercial environments. Its compact size - 68 mm length, 16 mm height, and 29.5 mm depth - enables integration into constrained spaces.

Designed for chassis mount with metal bracket for ease of installation. Rated for 4 A maximum current and 250 V AC maximum voltage. 1 μF capacitance and 2 mH inductance optimize filtering performance. Suitable for 1-phase 60 Hz electrical systems.

Robust aluminium can housing protects internal components. Low leakage current of 240 μA enhances energy efficiency. Works reliably between -25°C and 85°C ambient temperature. Tab termination style ensures secure connections.

Compact dimensions facilitate installation in small equipment spaces. Ideal for use in sensitive electronics such as personal computers and teleprinters. This RFI filter is widely used in industrial, laboratory, and commercial electronic applications to enhance equipment performance by reducing electromagnetic interference.
