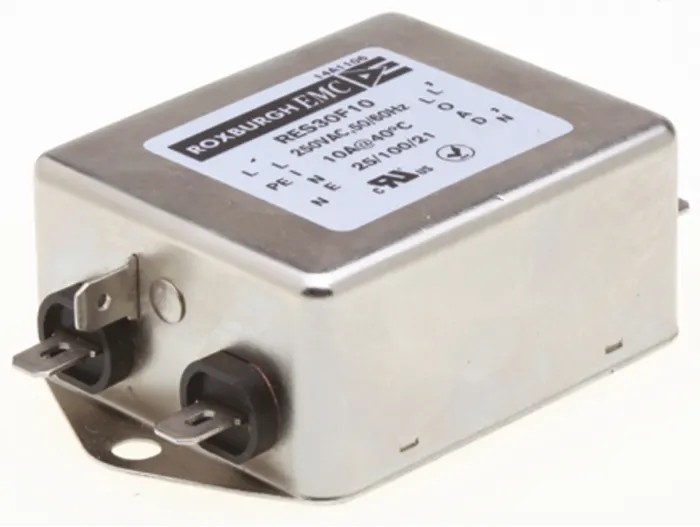

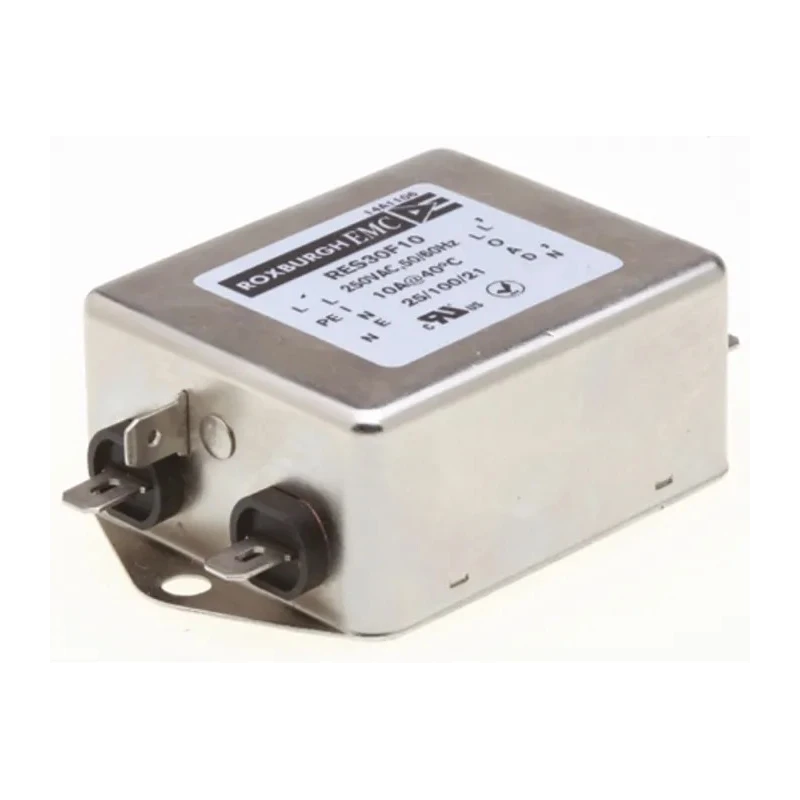

Roxburgh EMC Chassis Mount RFI Filter 10A 250V AC 60Hz Fast-On Termination Single Phase RES30

The Roxburgh EMC RES30F10 is a high performance chassis mount RFI (Radio Frequency Interference) filter designed for single phase AC power applications. Rated for 10 amps at 250 volts AC and operating at 60 Hz, this filter provides superior differential mode attenuation and excellent high frequency noise suppression, making it ideal for use in a wide range of electronic and electrical equipment.

It features a compact size with dimensions of 85mm length, 51mm depth, and 30mm height, enabling easy chassis mounting with fast-on termination for quick and secure connections. Built to operate reliably in temperature ranges from -25°C to 85°C, it maintains stable electrical characteristics with a capacitance of 940nF, an inductance of 8mH, and a leakage current of only 730μA.

These filters are commonly applied in consumer electronics, household appliances, office automation equipment, machinery, and industrial installations requiring suppression of unwanted electromagnetic interference. The RES30 series has proven its effectiveness in enhancing EMC (Electromagnetic Compatibility) and reducing noise interruptions in sensitive circuits.

Compliance with UL 1283 and CSA 22.2 No. 8 standards ensures safety and quality, making it suitable for demanding industrial and commercial uses. The filter’s resistance rating of 680kΩ contributes to its efficient performance.

Manufactured in India, the Roxburgh EMC RES30F10 combines advanced engineering and quality materials to provide a reliable and durable EMI filter solution, facilitating improved device longevity and interference mitigation across diverse applications.

Supports maximum current of 10 amperes. Rated for 250 volts AC at 60 Hz frequency. Compact chassis mount with fast-on termination style. Single phase operation with the RES30 series reliability. High capacitance of 940nF and inductance of 8mH for effective noise suppression.

Operating temperature range from -25°C to 85°C. Low leakage current of 730 microamperes suitable for sensitive applications. Resistance value of 680 kilo-ohms ensuring stable performance. Complies with UL 1283 and CSA 22.2 No. 8 safety standards.

Manufactured in India with robust construction and quality assurance. Explore more high quality EMI Filters and RFI Filters in our Electronics Components category at EnvMart for your industrial, laboratory, and commercial applications.
