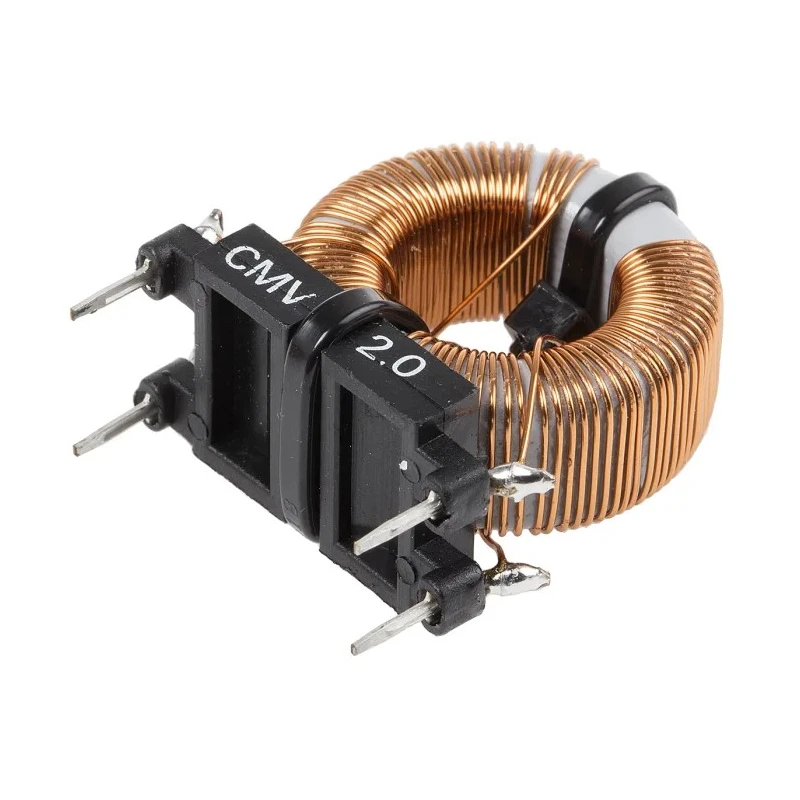

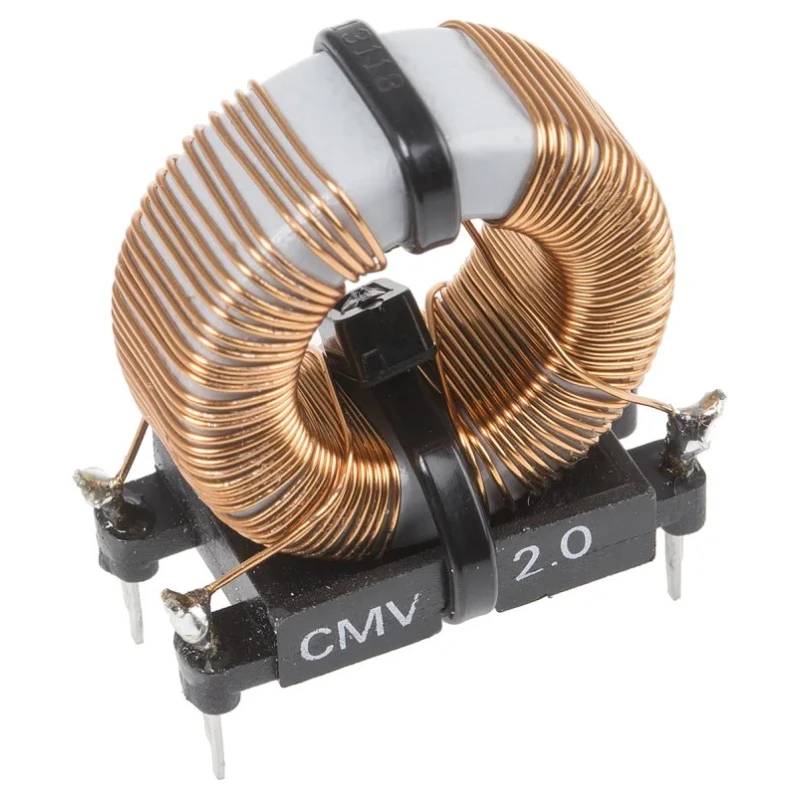

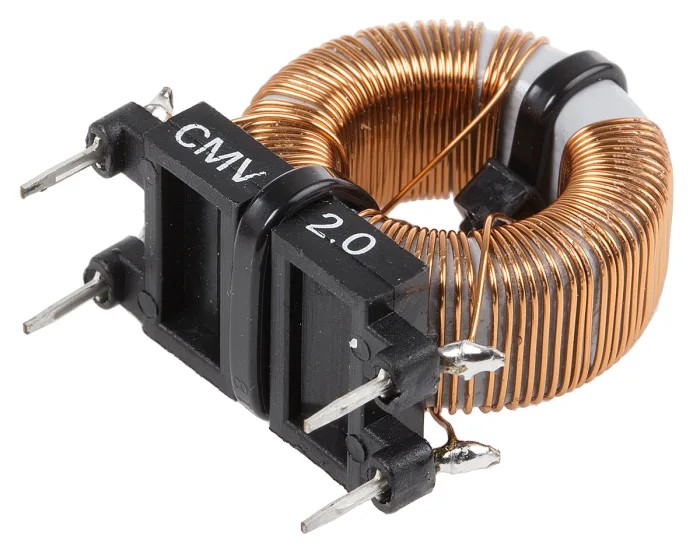

Roxburgh EMC 7.5 mH Ferrite Common Mode Choke Radial Lead 2 A Idc 250V AC Max SRF 440 Hz CMV20

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC 7.5 mH Ferrite Common Mode Choke Radial Lead 2 A Idc 250V AC Max SRF 440 Hz CMV20

Name: Roxburgh EMC 7.5 mH Ferrite Common Mode Choke Radial Lead 2 A Idc 250V AC Max SRF 440 Hz CMV20
Brand: Roxburgh EMC
SKU: 152690
Price: 7.9 USD
Availability: InStock



Category Leaded Inductors Brand Roxburgh EMC Condition New

Specifications

Country of Origin	Morocco
Brand	Roxburgh EMC
Height	31mm
Length	37.5mm
Model	CMV20
Depth	17.4mm
Mount Type	Radial
Series	CMV
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-25°C
Test Frequency	440Hz
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	7.5mH
Maximum DC Current	2A
Maximum DC Resistance	160mΩ
Termination Style	Radial Lead
Maximum Self Resonant Frequency	440Hz

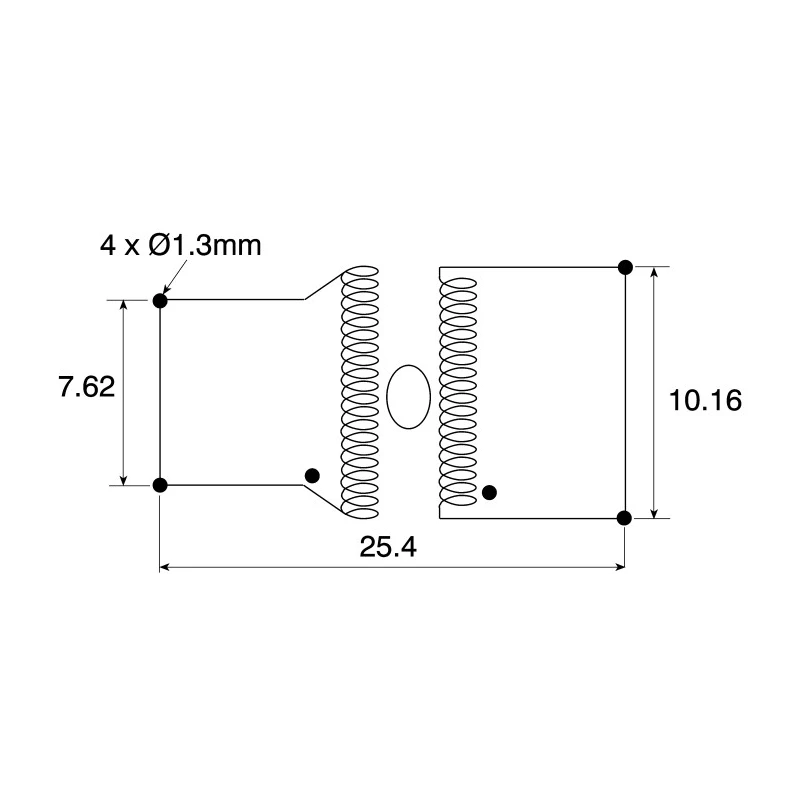

Lead Pitch	27.8mm
Lead Diameter	0.38mm
Roxburgh EMC 7.5 mH Ferrite Common Mode Choke, Max SRF	440 Hz, 2 A Idc, 160 mΩ Rdc 250V ac, CMV

Key Features

Constructed with a ferrite core material for effective EMI suppression.
Rated maximum DC resistance of 160 milliohm to minimize power loss.
Designed with a radial lead termination style and 0.38 mm lead diameter for reliable PCB mounting.
Operating temperature range from -25°C to 100°C ensuring durability under various conditions.
Suitable for filtering common mode noise in electronic circuits and power supplies.
Manufactured to be free of automotive standards compliance but designed for reliable industrial and electronic applications.

Product Description

Roxburgh EMC CMV20 common mode choke features a 7.5 mH inductance designed to suppress electromagnetic interference (EMI) in electronic circuits, particularly in power supply lines. Constructed on a ferrite core, this radial lead type inductor offers reliable noise filtering performance with a maximum DC current rating of 2 A and capable of operating at an AC voltage up to 250 volts.

The component exhibits a maximum DC resistance of 160 milliohm and operates effectively within a temperature range from -25°C to 100°C, accommodating typical industrial environments. Its maximum self-resonant frequency is specified at 440 Hz, ensuring efficiency in filtering operations within this frequency domain.

Physical attributes include a lead diameter of 0.38 mm, a lead pitch of 27.8 mm, and package dimensions of 37.5 mm length, 31 mm height, and 17.4 mm depth, making it suitable for compact PCB assemblies.

This common mode choke does not conform to automotive standards, indicating suitability primarily in general electronics manufacturing and industrial applications. Its radial lead termination enhances easy mounting and soldering for a secure electrical connection.

Product design benefits include noise suppression in power supplies, electronic components, communication equipment, and other systems requiring EMI mitigation within the operating voltage and current ratings.

Constructed with a ferrite core to improve EMI noise filtering efficiency. Maximum DC current of 2 amperes for moderate load applications. Radial lead termination style providing stable mounting on PCB assemblies. Wide operating temperature range from -25°C to 100°C for robust performance.

Compact size with precise lead pitch facilitating usage in dense circuit boards. Maximum DC resistance of 160 milliohm minimizing power loss. Max self-resonant frequency of 440 Hz ensures targeted frequency filtering.

Ideal for use in industrial electronics, power supply circuits, manufacturing environments, and laboratory applications where noise suppression is critical. The product is sourced from Morocco, ensuring compliance with manufacturing quality standards.
