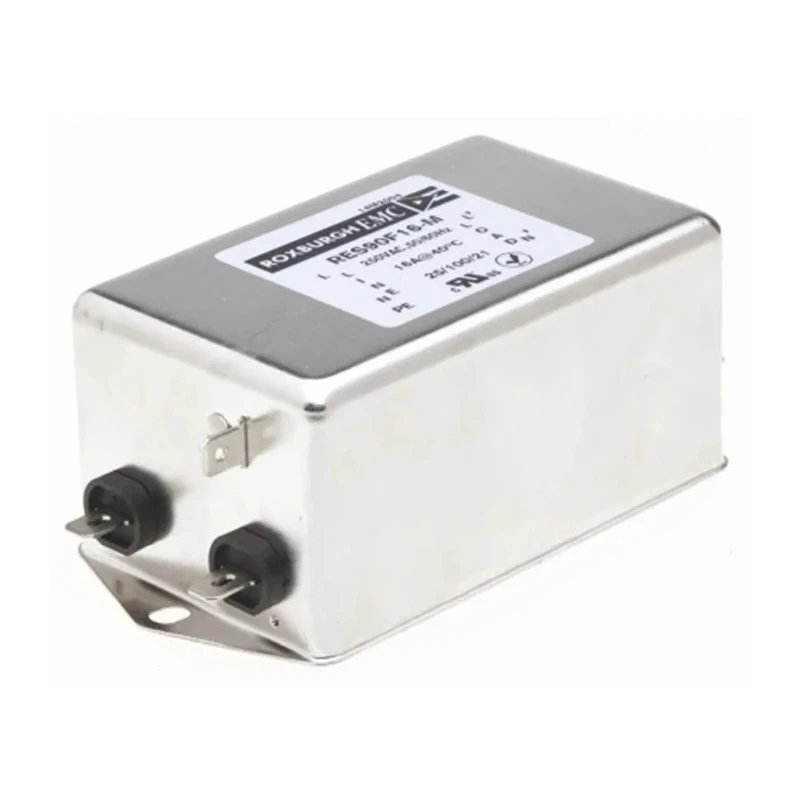

Roxburgh EMC Chassis Mount RFI Filter 16 A 250V AC 60Hz Fast-On Single Phase RES90

Roxburgh EMC RES90F16-M model chassis mount RFI filter is designed for high-performance electromagnetic compatibility (EMC) applications requiring robust noise suppression. This single phase filter operates with a maximum current rating of 16 A and a voltage of 250 V AC at 60 Hz frequency. It incorporates two stages of filtering to provide very high differential and common mode attenuation across a broad frequency spectrum from DC to 60 Hz.

The compact chassis mount form factor features fast-on terminations for quick and secure installation. With a capacitance of 1μF and inductance of 4mH, it efficiently reduces conducted electromagnetic interference that is common in electrical drives and sensitive electronic circuits. Its low leakage current of 2μA makes it well suited for medical and other critical applications.

The filter is engineered to operate reliably in harsh industrial environments with temperature tolerance ranging from -25°C to 100°C. Constructed to meet CSA 22.2 No. 8 and UL 1283 approvals, it complies with stringent international safety and performance standards. Its physical dimensions of 115mm length by 57mm depth and 45mm height ensure integration into various equipment housings without occupying excessive space.

Multi-stage RFI filter provides high differential and common mode attenuation for effective noise control. Chassis mount design with fast-on terminals enables quick installation and secure connections. Supports maximum current of 16 A and voltage up to 250 V AC at 60 Hz, suitable for many industrial applications.

Capacitance at 1μF and inductance at 4mH provide superior filtering efficiency. Low leakage current of 2μA is ideal for sensitive or medical-grade equipment. Operating temperature range from -25°C to 100°C ensures durability in demanding environments.

Complies with CSA 22.2 No. 8 and UL 1283 for safety and quality assurance. Compact size (115 x 57 x 45 mm) allows easy chassis mounting without space constraints.

This RFI filter is widely used in industrial machinery, electronic data processing equipment, office automation systems, household appliances, and building automation where high levels of electrical noise are present. Its robust construction and compliance with industry standards make it an essential component for ensuring EMC adherence and safeguarding sensitive electronics.
