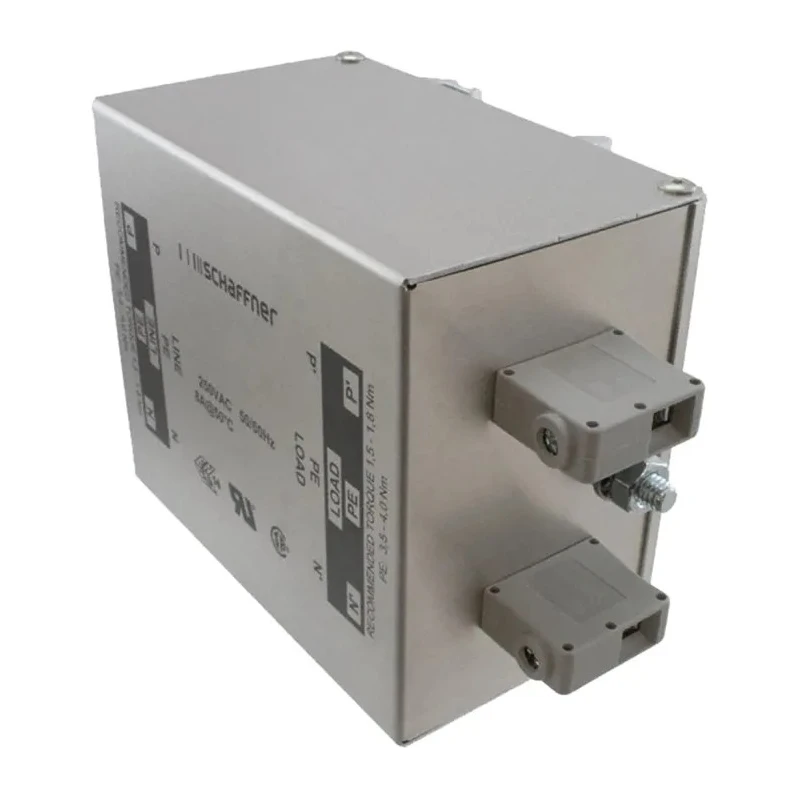

Schaffner Chassis Mount EMC Filter 25A 520V AC 400Hz Terminal Block 2 Phase FN2410H

Schaffner FN2410H chassis mount EMC filter designed for high interference level applications where reliable noise suppression is critical. This 2-phase filter supports a maximum current of 25A and operates at up to 520 volts AC with an operating frequency of 400Hz. The terminal block termination style provides a secure and reliable electrical connection.

With compact dimensions (158mm length, 93mm depth, and 76mm height), it easily mounts on chassis for convenient integration into electronic systems, ensuring electromagnetic compatibility (EMC) across power lines. The filter features a single stage design optimizing noise reduction while maintaining power efficiency with just 5.5W power loss and low leakage current of 3.4mA.

The operating temperature range from -25°C to 100°C allows usage in industrial, commercial, and instrumentation environments exposed to variable temperature conditions.

This product meets the EN 133 200 standard of EMC filters and has approvals including UL1283 and CSA22.2 No.8 1986, ensuring compliance with safety and electromagnetic interference standards.

Ideal for use in industrial electronic assemblies, power line noise suppression, HVAC systems, and instrumentation applications requiring robust electromagnetic interference filtering across two phases of an electrical network. The FN2410H series is suitable for single or two-phase configurations in three-phase power networks.

Designed for high interference environment applications. Supports maximum current up to 25 amperes for reliable performance. Operates up to a maximum voltage of 520 volts AC at a frequency of 400Hz. Chassis mount design for secure installation and ease of integration.

Includes Terminal Block for robust 2-phase electrical connection. Compact and durable construction sized 158mm x 93mm x 76mm. Low leakage current of 3.4mA and power loss of 5.5 watts. Operating temperature range from -25°C to 100°C for versatile use cases.

Compliance with EN 133 200 standard and UL1283, CSA22.2 approvals. Suitable for industrial, laboratory, commercial, and manufacturing electronic applications. Explore more specialized EMC filters and power line noise suppression products at EnvMart to find the optimal solutions for your industrial electronic design projects.
