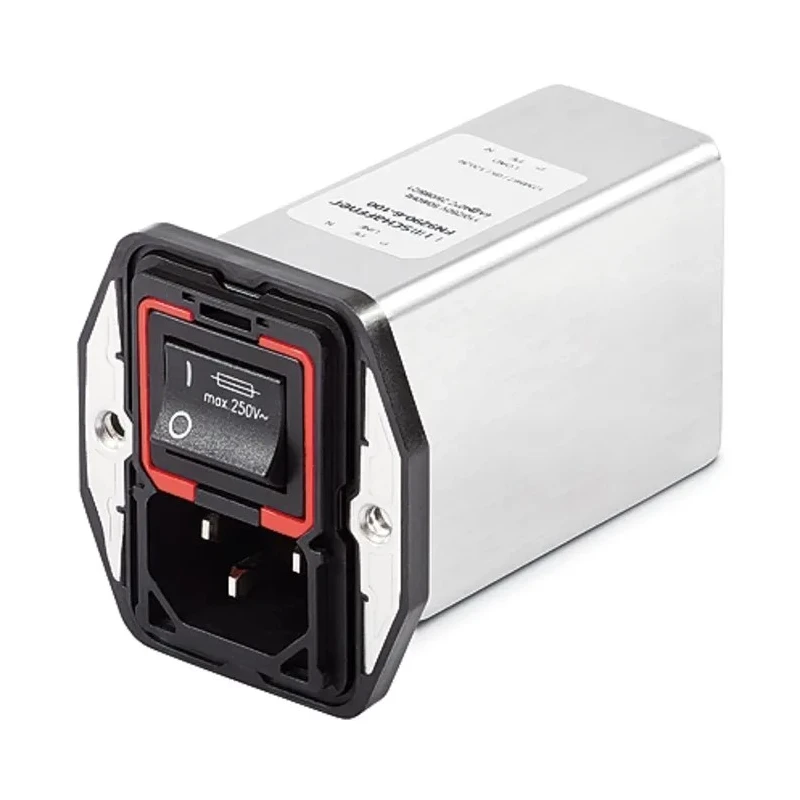

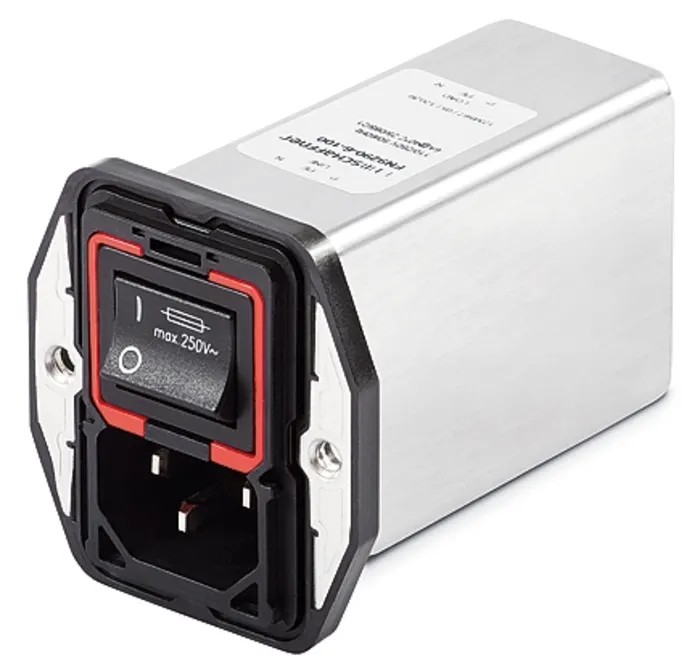

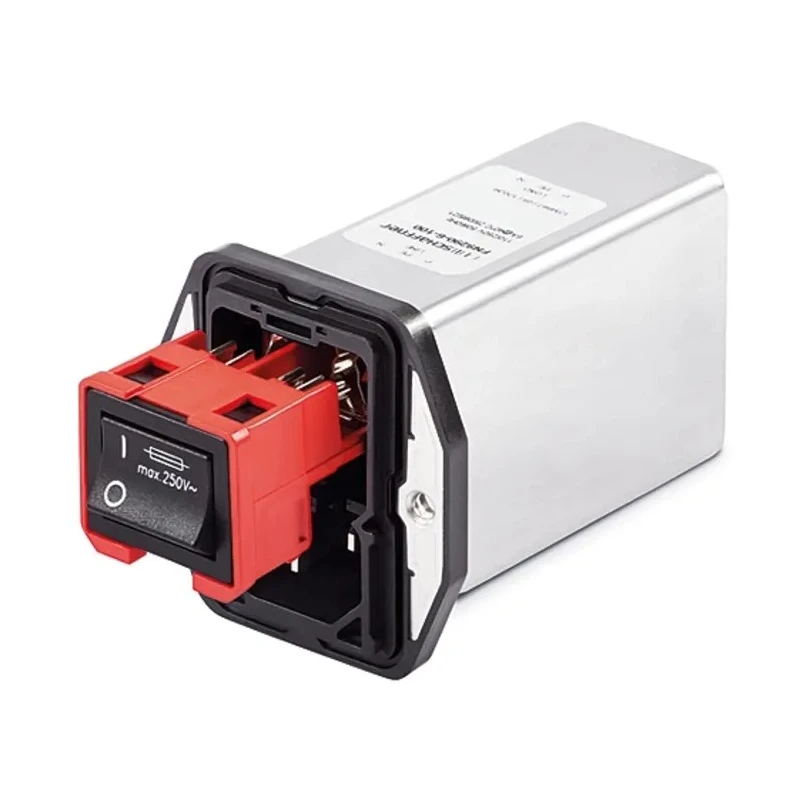

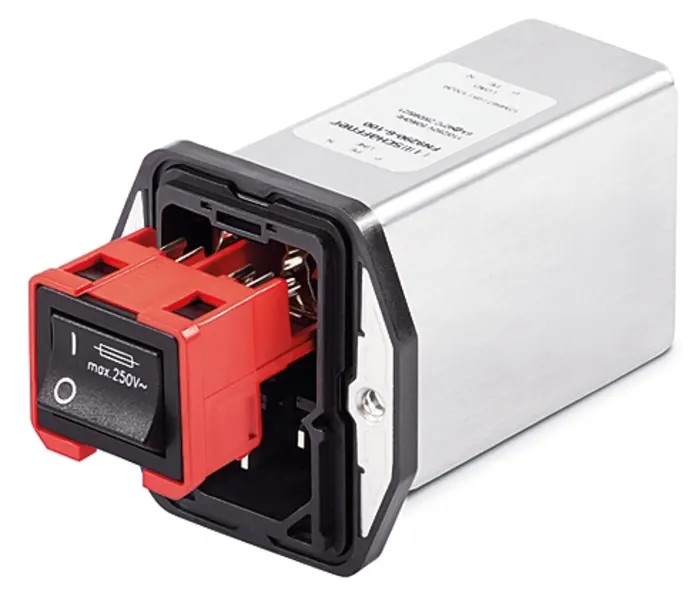

Schaffner 250V ac 1A Panel Mount IEC Filter Male 2 Pole 2 Fuse Faston FN9290-1-06
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 250V ac |
| Brand | Schaffner |
| Current | 1A |
| Height | 49.8mm |
| Model | FN9290-1-06 |
| Depth | 80.6mm |
| Width | 32mm |
| Mount Type | Panel Mount |
| Operating Frequency | 400, 50Hz |
| Switch Type | 2 Pole |
| Series | FN9290 |
| Termination Type | Faston |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| Number of Fuses | 2 |
| IEC Connector Type | IEC/EN 60601-1 |
Key Features
- Includes a dual fuse holder with 2 fuses for enhanced safety.
- Equipped with a 2-pole rocker switch allowing easy control of power circuits.
- Compact shielded construction provides protection from magnetic interference.
- Faston termination type enables quick and secure electrical connections.
- Suitable for panel mounting with versatile flange mounting options for horizontal or vertical installation.
- Operates reliably between -25°C and 85°C for broad environmental tolerance.
- Compliant with IEC/EN 60601-1 IEC connector standards for medical and industrial use.
- Widely used in portable electrical equipment, consumer goods, and single-phase power supplies.
Product Description
Schaffner FN9290-1-06 is a high-performance IEC filter operating at 250V AC and rated for 1A current, designed as a panel mount component with male connector and faston terminations. This compact filter integrates a dual fuse holder accommodating two 5 x 20 mm fuses and a 2-pole rocker switch, facilitating convenient switching and enhanced circuit protection.
The shielded housing of this filter provides effective attenuation against electromagnetic interference, ensuring stable performance in sensitive electronic applications. Its flange mounting kit allows flexible installation options either from the front or rear, suitable for both horizontal and vertical orientations.
Engineered to endure operating temperatures ranging from -25°C to 85°C, the FN9290-1-06 is ideal for various environments. It complies with IEC/EN 60601-1 standards, making it suitable for medical devices and industrial equipment requiring stringent safety and electromagnetic compatibility considerations.
This IEC filter is frequently applied in portable electrical and electronic equipment, consumer products, office and data processing machinery, single-phase power supplies, switch-mode power supplies, and test and measurement instruments. Faston terminals ensure secure and rapid connection capability, simplifying installation and maintenance.
Includes dual fuse holder with 2 fuses for overcurrent protection. Incorporates 2-pole rocker switch facilitating isolation or switching. Compact shielded design minimizes magnetic and radio frequency interference. Mounting options support flange installation in multiple orientations.
Faston termination for reliable and quick electrical connections. Built to operate efficiently within -25°C to 85°C temperature range. Complies with IEC/EN 60601-1 connector standards for medical safety. Widely used in industrial, laboratory, medical, and consumer electronics applications.
The Schaffner FN9290-1-06 IEC Filter exemplifies reliability and versatility, making it a solid choice for engineers and technicians seeking high-quality power line filtering solutions for panel-mounted devices. For more products and details, explore our Electronics Components range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN9290-1-06 IEC filter operates at a voltage rating of 250V AC.
This model is rated for a current of 1A.
The dimensions of this IEC filter are 49.8mm in height, 80.6mm in depth, and 32mm in width.
It incorporates a 2-pole rocker switch for easy control of power circuits.
This unit operates reliably within a temperature range of -25°C to 85°C.
It accommodates two 5 x 20 mm fuses for enhanced safety and overcurrent protection.
The filter features Faston termination for quick and secure electrical connections.
Yes, it complies with IEC/EN 60601-1 standards, making it suitable for medical and industrial applications.
This filter supports panel mounting with versatile flange mounting options for both horizontal and vertical installation.
It is widely used in portable electrical equipment, consumer goods, and single-phase power supplies.
The country of origin for this IEC filter is Thailand.
