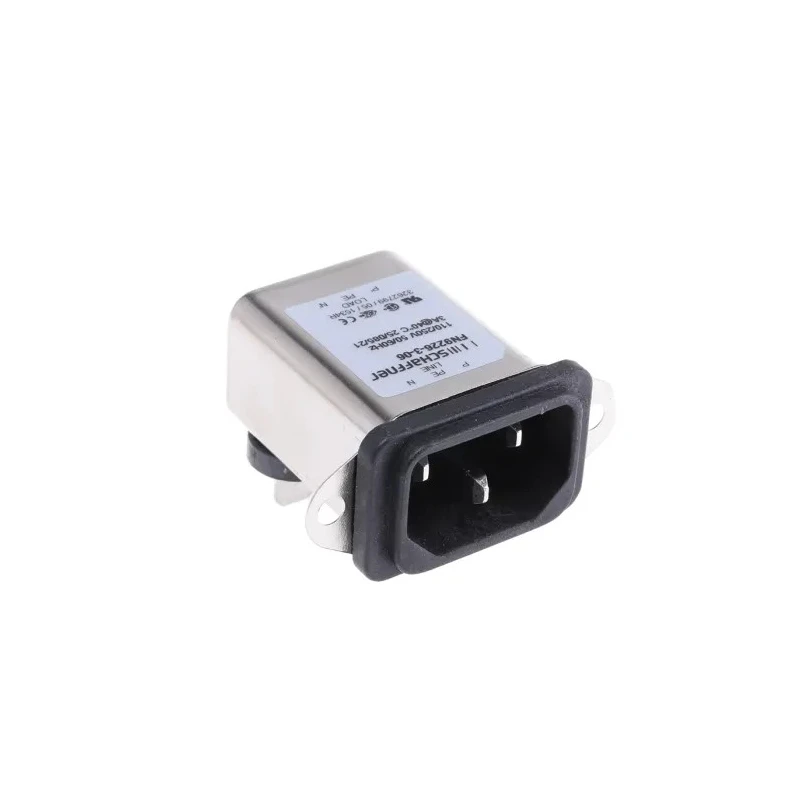

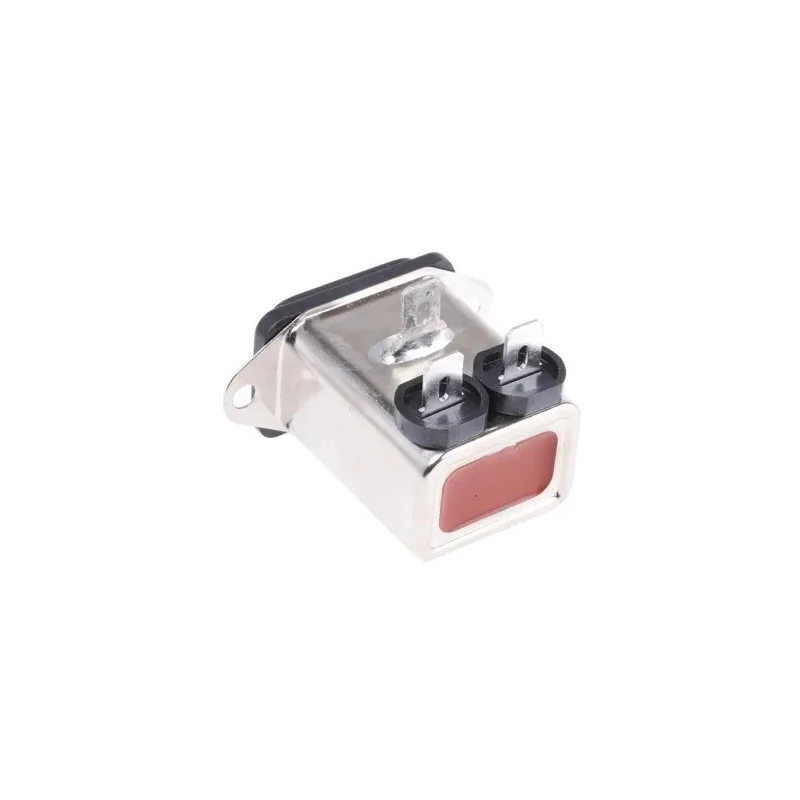

Schaffner 250V AC 3A Panel Mount IEC Filter Male Faston FN9226-3-06
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schaffner |
| Current | 3A |
| Height | 32.5mm |
| Model | FN9226-3-06 |
| Depth | 40.85mm |
| Width | 48mm |
| Mount Type | Panel Mount |
| Operating Frequency | 0, 400Hz |
| Termination Type | Faston |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| IEC Connector Type | IEC/EN 60939 |
| Schaffner 1A, 250 V ac Male Panel Mount IEC Filter FN326-1-06, FastonBrand | Schaffner |
Key Features
- Compact and high-performance IEC 950 compliant filter design.
- Operating frequency range from DC to 400Hz for versatile applications.
- Panel mount configuration with male connector for secure installation.
- Faston termination type facilitating quick and reliable connections.
- Operating temperature range from -25°C to +85°C ensuring durability.
- Includes class X2 capacitor between live and neutral for electromagnetic interference filtering.
- UL recognized and VDE approved component for quality assurance.
- Suitable for use in electronic components, power, and connectors applications.
Product Description
Schaffner FN9226-3-06 IEC Filter is designed for robust electromagnetic interference (EMI) filtering with an operating voltage of 250V AC and a current rating of 3A. This panel mount filter features a male IEC connector with Faston termination for fast, secure electrical connections.
Engineered with IEC/EN 60939 standards compliance, the FN9226-3-06 offers an ultra-compact form factor measuring 48mm in width, 40.85mm in depth, and 32.5mm in height. Its operating frequency spans from DC up to 400Hz, allowing for flexible application across electronic devices and power systems.
This filter incorporates an additional class X2 capacitor between live and neutral lines at both input and output, effectively reducing EMI and ensuring improved electromagnetic compatibility. It is UL recognized and VDE approved for dependable performance and safety.
The filter operates reliably within a temperature range from -25°C to +85°C, making it suitable for various industrial and electronic environments. Typical applications include use in electronic components assemblies, power supplies, and connector systems requiring panel mounting solutions with high-quality EMI suppression.
Compact and high-performance IEC 950 compliant filter design. Operating frequency range from DC to 400Hz for versatile applications. Panel mount configuration with male connector for secure installation. Faston termination type facilitating quick and reliable connections.
Operating temperature range from -25°C to +85°C ensuring durability. Ultra-compact dimensions: 48mm width, 40.85mm depth, and 32.5mm height. Includes class X2 capacitor between live and neutral for electromagnetic interference filtering.
UL recognized and VDE approved component for quality assurance. Suitable for use in electronic components, power, and connectors applications. Explore the wide range of Schaffner IEC Filters and related components at EnvMart for your industrial, electronic, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN9226-3-06 IEC filter operates at a voltage of 250V AC and has a current rating of 3A.
This model has ultra-compact dimensions of 48mm in width, 40.85mm in depth, and 32.5mm in height.
The operating frequency range of this filter spans from DC to 400Hz, making it suitable for various applications.
It features a Faston termination type, which facilitates quick and reliable electrical connections.
The FN9226-3-06 operates reliably within a temperature range from -25°C to +85°C.
This filter is engineered to comply with IEC/EN 60939 standards, ensuring quality and performance.
It includes a class X2 capacitor between the live and neutral lines for effective electromagnetic interference filtering.
This unit features a male connector gender, suitable for panel mounting applications.
It is suitable for use in electronic components assemblies, power supplies, and connector systems requiring EMI suppression.
The country of origin for this IEC filter is India.
Yes, it is UL recognized and VDE approved, ensuring dependable performance and safety standards.
This model supports a panel mount configuration, allowing for secure installation.
