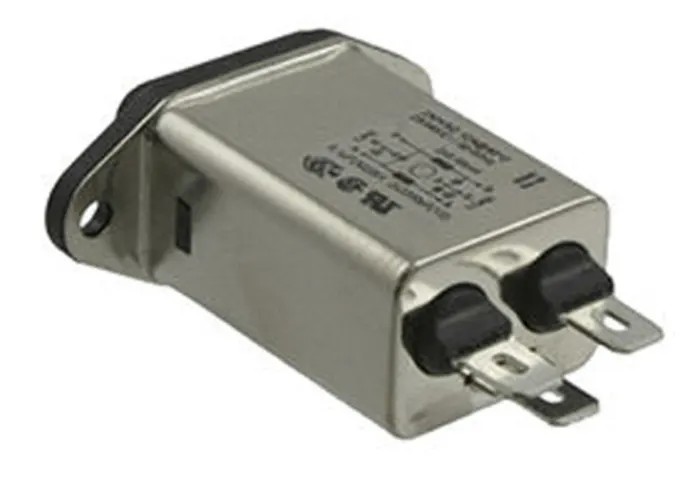

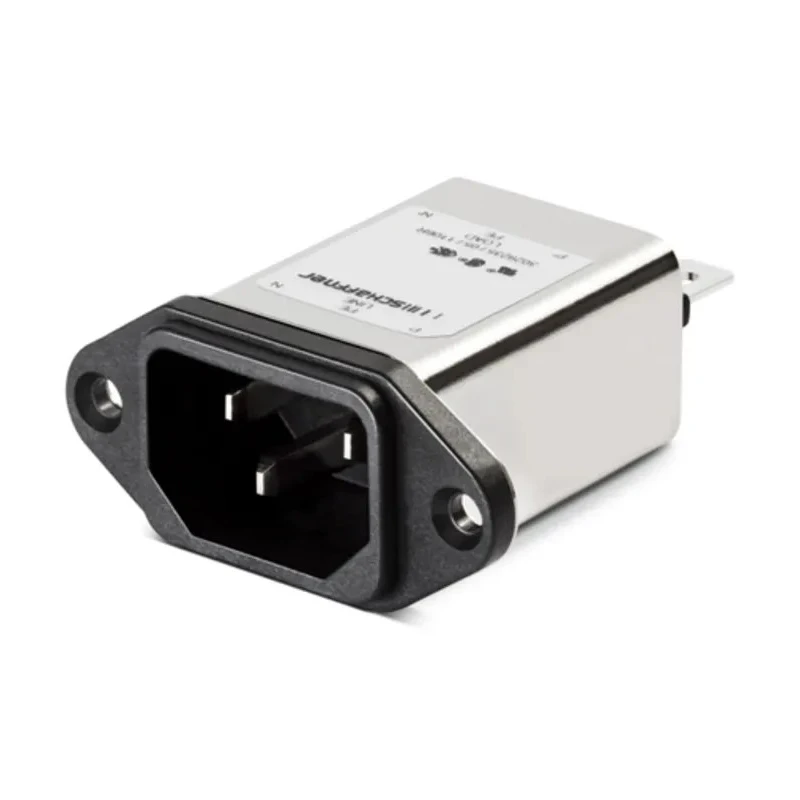

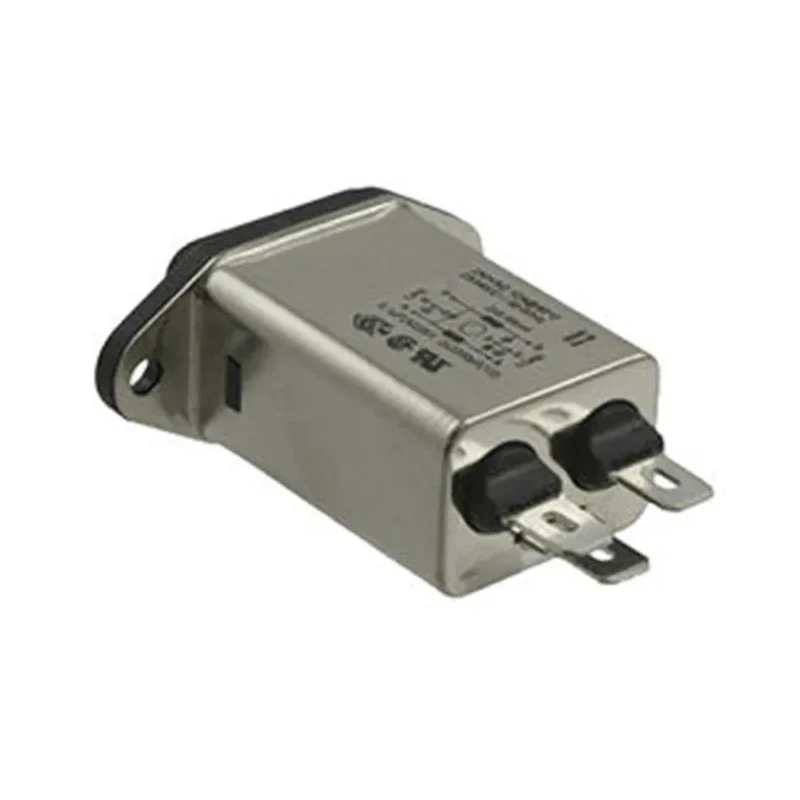

Schaffner FN9222R-6-06 250V AC 6A Flange IEC Filter Male Connector Faston Termination FN9222R-6-06

Schaffner FN9222R-6-06 IEC Filter is a compact, high-performance inlet filter combining IEC inlet and mains filtering capability to provide excellent filtering in a small form factor. It features a male IEC C14 connector with a flange mount design and Faston termination for easy connection and installation.

Rated for 6A current and 250V AC voltage, it operates efficiently up to frequencies of 400Hz and supports a wide operating temperature range from -25°C to 85°C. This filter is ideal for use in portable electrical and electronic equipment, household appliances, single-phase and switch-mode power supplies, test and measurement instruments, medical devices, and rack-mounted equipment.

The product boasts a strong performance-to-size ratio and offers maximum flexibility through its flange mounting and termination options. The filters include additional capacitors providing class X2 attenuation to minimize noise interference.

Schaffner’s FN9222 series is known for quality and reliability. This particular model, FN9222R-6-06, is manufactured in Thailand, ensuring compliance with industrial production standards. It is especially suitable for industrial, laboratory, medical, and commercial applications requiring reliable IEC filtering.

High-performance compact IEC inlet with integrated mains filter. IEC C14 male connector with flange mounting for robust mechanical attachment. Rated current of 6A and voltage of 250V AC at up to 400Hz operating frequency.

Faston termination type for secure and efficient electrical connections. Wide operating temperature range from -25°C to 85°C ensuring versatility. Dimensions of 22.5mm height, 48mm width and 43.9mm depth. Designed for applications including medical and rack-mount equipment.

Manufactured in Thailand ensuring quality manufacturing standards. Ideal for use in portable and household electronic equipment, power supplies, and test instruments. Explore further Schaffner IEC Filters and related electronic components on EnvMart for professional-grade industrial and laboratory solutions.
