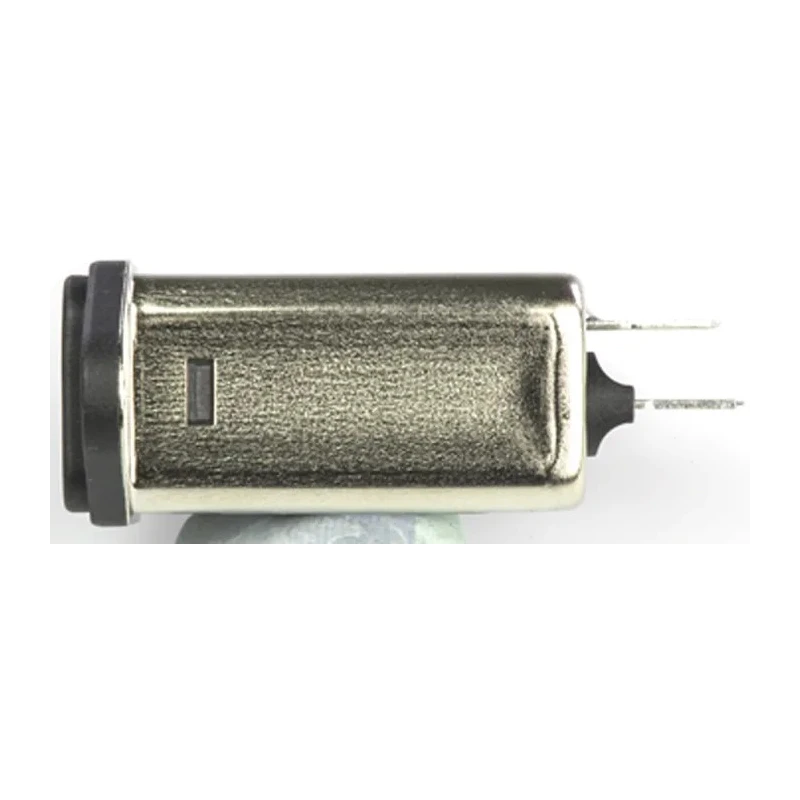

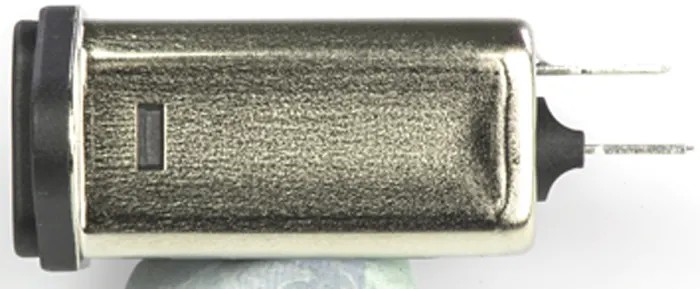

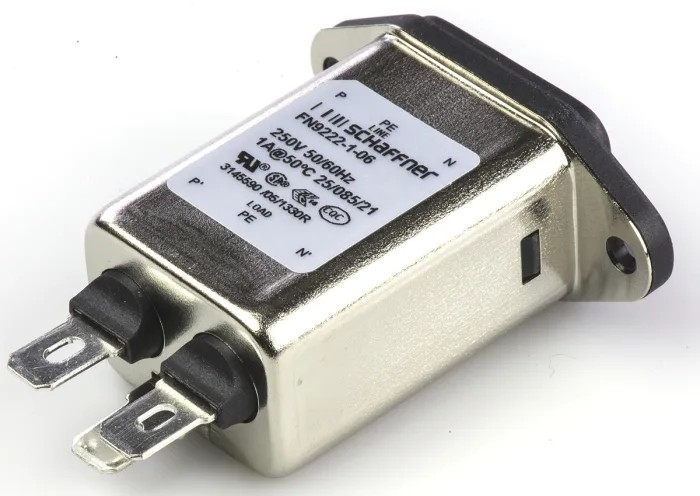

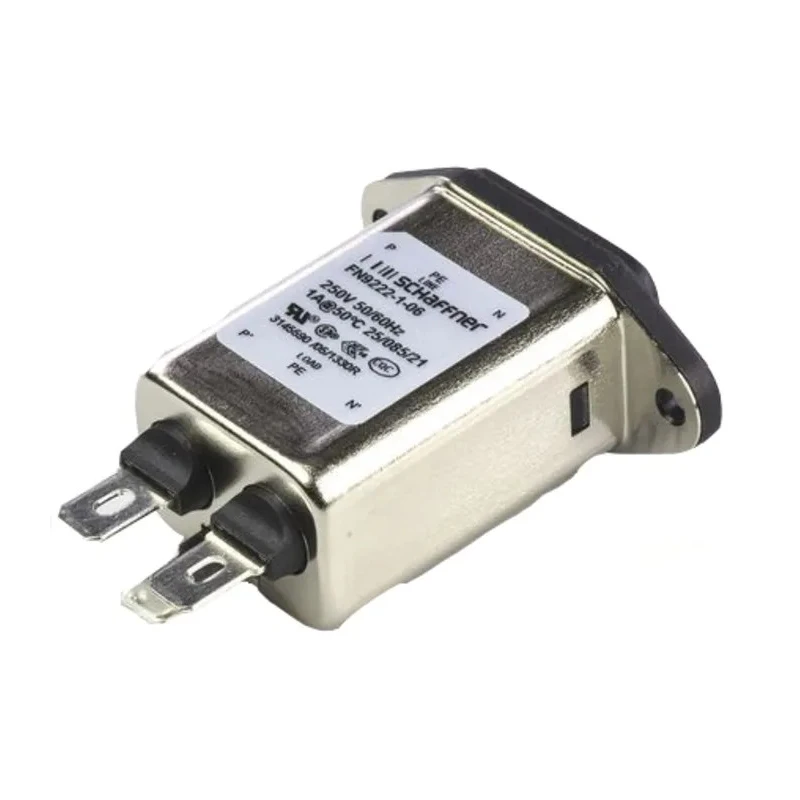

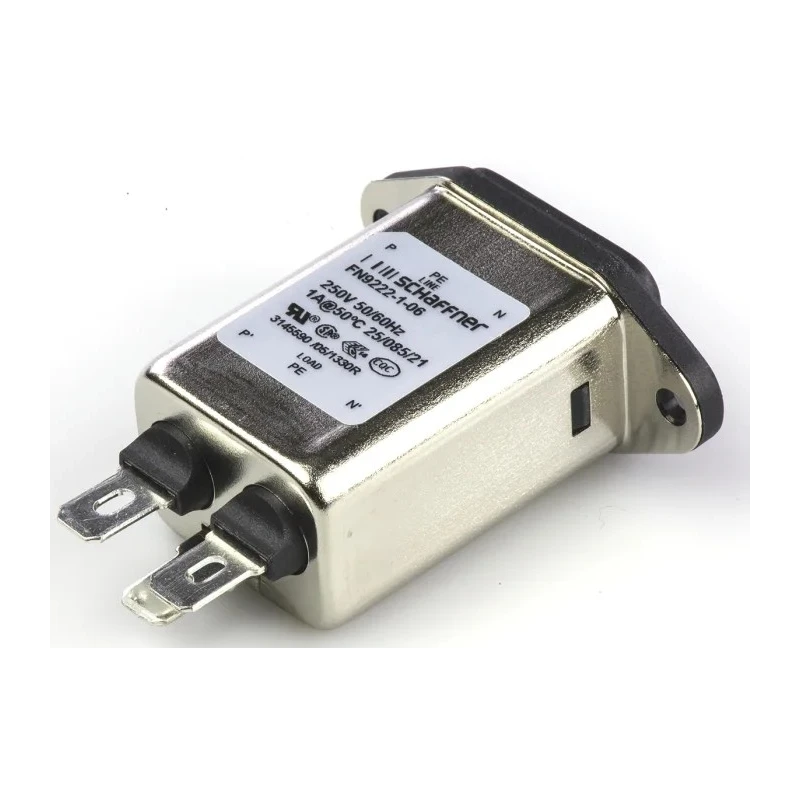

Schaffner 250V AC 1A Panel Mount IEC Filter Male with Faston Termination FN9222-1-06

Schaffner FN9222-1-06 is a high performance panel mount IEC filter combining an IEC inlet and mains filter with excellent EMI attenuation in a compact design. It is rated for 250V AC and 1A current, featuring a male C14 connector and Faston type termination. Capable of operating across DC to 400 Hz frequency, it supports a wide temperature range from -25°C to 85°C, ensuring reliable filtering performance in diverse environments.

This IEC filter is suitable for a broad spectrum of industrial and commercial applications including portable electrical and electronic equipment, household appliances, single-phase and switch-mode power supplies, test and measurement instruments, medical equipment, and rack mount systems. Its compact size and robust design provide an excellent performance-to-size ratio.

The unit measures 48 mm in width, 22.5 mm in height, and 57.9 mm in depth, making it a versatile choice for space-constrained installations. The Faston termination type allows for quick and firm connections, facilitating ease of assembly and maintenance.

Schaffner’s FN92XX series IEC filters include design features such as additional capacitors providing class X2 capacitors between live and neutral conductors for enhanced filtering effectiveness. This model specifically does not carry formal approvals but is designed and constructed to meet demanding industrial and laboratory specifications.

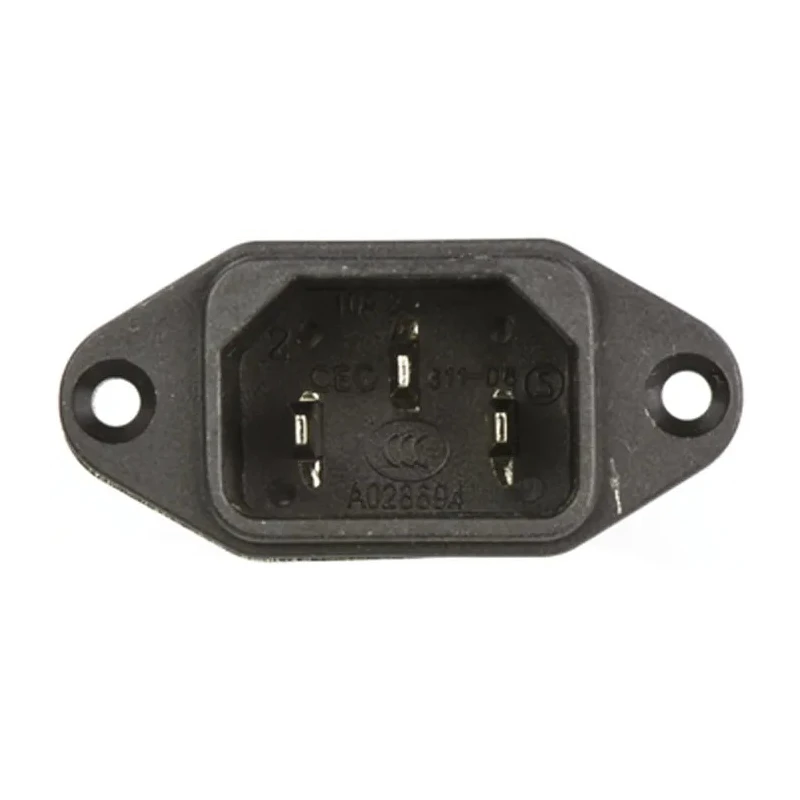

Provides compact, high performance power line filtering with EMI attenuation. Panel mount design with C14 IEC connector male gender. Operates effectively from DC to 400 Hz frequency range. Operating temperature range from -25°C to 85°C for reliable performance.

Termination via Faston connectors for secure and quick installation. Dimensions: 48 mm width, 22.5 mm height, and 57.9 mm depth. Suitable for portable electrical equipment, household devices, and medical and test instruments.

This product is an essential component for industrial, laboratory, construction, HVAC, manufacturing, and commercial power filtering needs. Ensure superior EMI performance in your electrical equipment with the Schaffner FN9222-1-06 IEC Filter.
