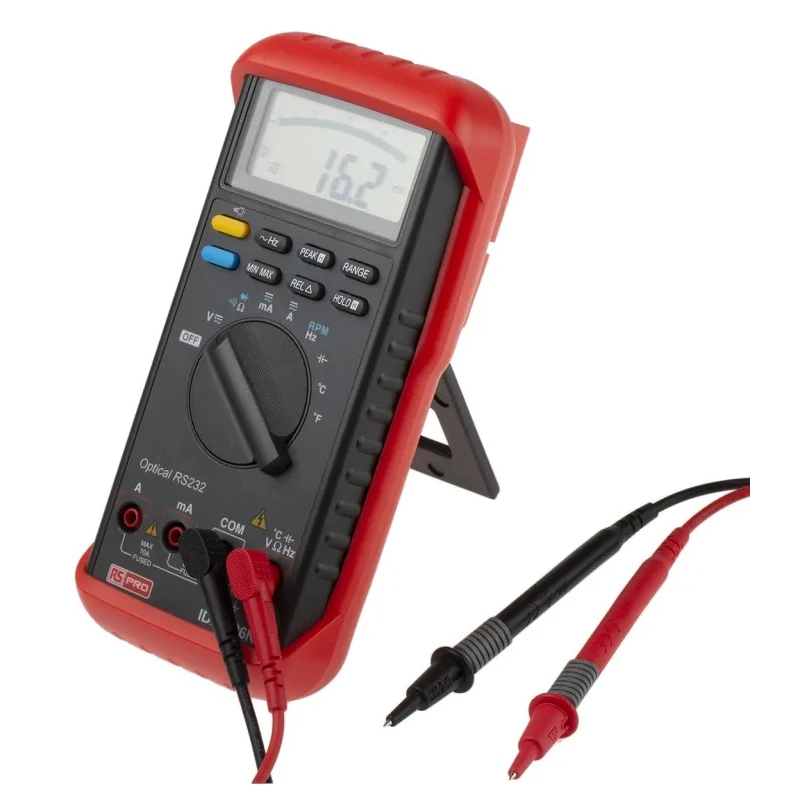

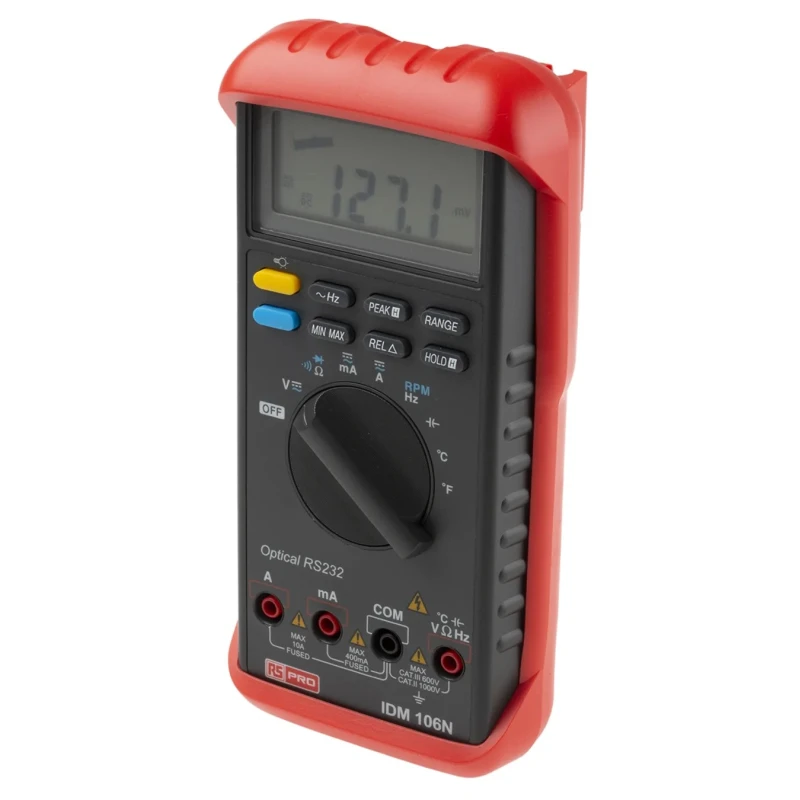

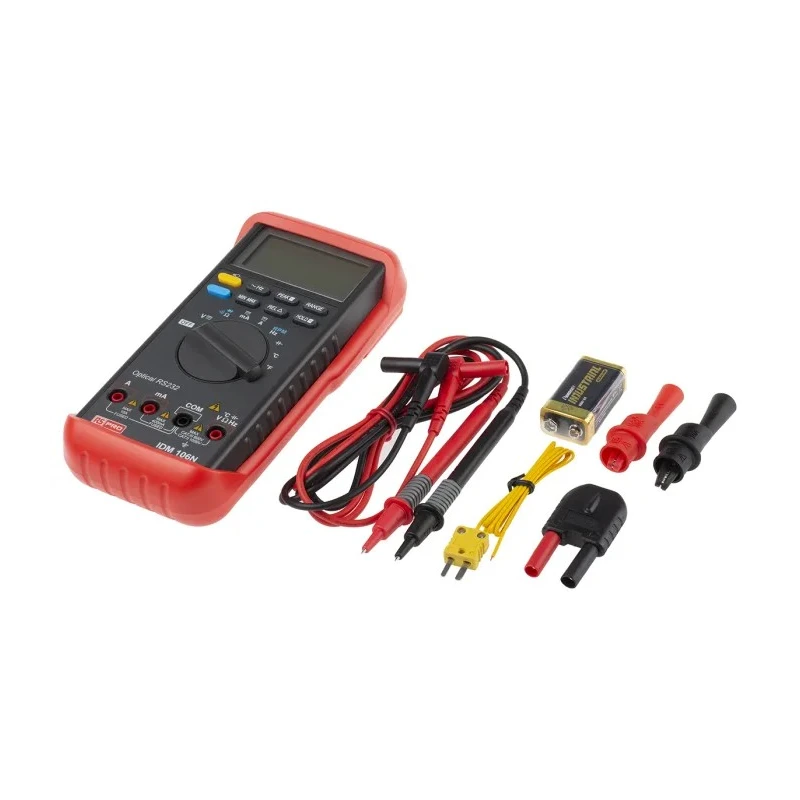

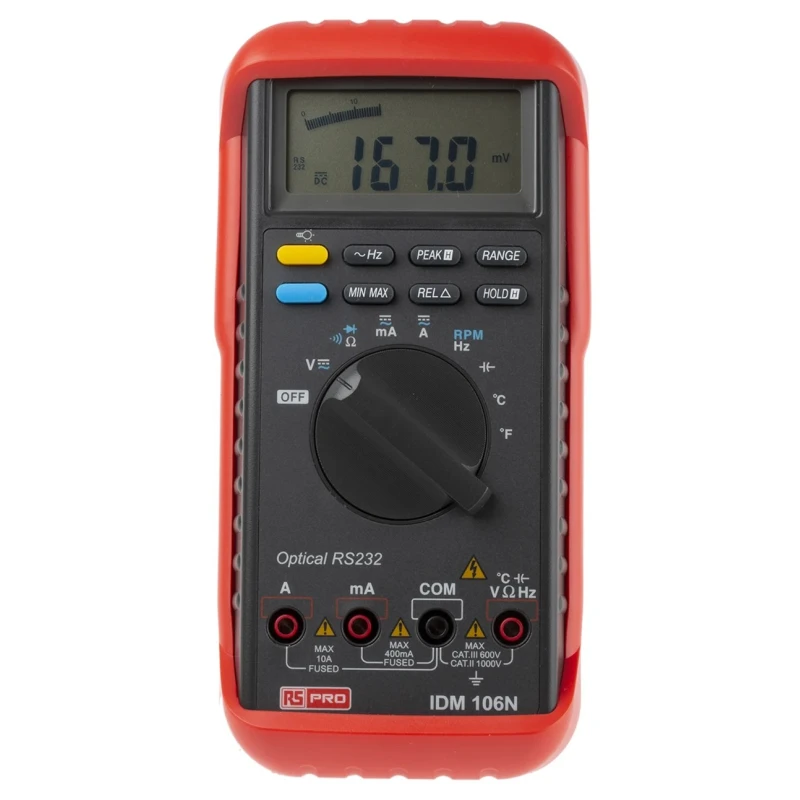

RS PRO Handheld True RMS Digital Multimeter IDM106N, 10A AC/DC, 1kV Volt Measurement, 400MHz Frequency
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | Digital |
| Brand | RS PRO |
| Battery Life | 300h |
| Battery type | JIS 006P, IEC 6F22, NEDA 1604 |
| Height | 212mm |
| Length | 100mm |
| Model | IDM106N |
| Gross Weight | 620g |
| Width | 55mm |
| Series | IDM 103N/105N/106N |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 0.1mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±0.4 % rdg + 2 Digits |
| Resistance Measurement Accuracy | ±0.4 % rdg + 2 Digits |
| AC Current Accuracy | ±1.5 % rdg + 5 Digits |
| Resistance Resolution | 100mΩ |
| DC Current Resolution | 10μA ac |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Peak, Resistance, Temperature |
| Maximum Resistance Measurement | 40mΩ |
| Maximum AC Current Measurement | 10A ac |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum DC Current Measurement | 10A dc |
| Maximum AC Voltage Measurement | 1kV ac |
| Maximum Frequency | 400MHz |
| Safety Category Level | CAT II, CAT III |
| Safety Category Voltage | 1000V |
| Gossen Metrawatt METRAHIT AM PRO Handheld Multimeter True RMSBrand | Gossen Metrawatt |
Key Features
- Measures both AC and DC voltage up to 1000V and current up to 10A.
- True RMS functionality ensures accurate readings for complex signals.
- Integrated digital display with bar graph for easy interpretation.
- Provides resistance, capacitance, frequency, temperature, diode test, and continuity check.
- Auto-ranging with manual override and data hold features for added convenience.
- Durable, IP64-rated dust and water resistant sealed housing.
- RS-232 optical interface for PC connectivity and data acquisition.
- Safety rated to CAT II and CAT III, suitable for demanding test environments.
Product Description
RS PRO IDM106N is a robust handheld True RMS digital multimeter engineered for demanding industrial, laboratory, and electrical field testing. Built to deliver precise measurement of AC and DC voltage up to 1000V and current up to 10A, it is suited for routine diagnostics, maintenance, and bench testing tasks.
With True RMS capability, the IDM106N accurately captures measurements from sinusoidal and non-sinusoidal signals. The instrument is equipped with a high-resolution digital display (4000 count) and a 42-segment bar graph for visual feedback, making it easy to interpret readings even in challenging environments.
Features include broad measurement functions such as AC/DC voltage and current, resistance (up to 40 MΩ), capacitance (up to 40 mF), frequency (up to 400MHz), temperature measurement, diode testing, and continuity check. Autoranging and manual override capabilities increase user control and efficiency. Data hold, relative modes, and peak hold ensure that critical measurements are easily referenced.
Measures AC/DC voltage up to 1000V and current up to 10A. True RMS ensures reliable measurements for all waveforms. Digital LCD display with LED backlight and bar graph. IP64-rated water and dust protection for rugged use.
Safety category CAT II and CAT III, designed for professional test environments. Optical RS-232 interface facilitates PC connectivity for advanced data acquisition. Battery operated with up to 300 hours run time; batteries are user-replaceable from rear access door.
Additional industrial features include fused input ranges, dust-and-water protection via O-ring sealed case, and auto power shutdown for energy savings. The meter's ergonomic design enhances portability in the field.
The RS PRO IDM106N is ideal for technicians in electrical, HVAC, manufacturing, laboratory, and commercial settings where reliable and precise measurement is required. Its combination of advanced functionality, durability, and user-centric design make it an essential tool for professionals.
Explore EnvMart's Digital Multimeter category for more RS PRO models and technical solutions tailored to your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC and DC voltage up to 1000V.
It can measure AC and DC current up to 10A.
The frequency measurement range of this unit is up to 400MHz.
It can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, diode test, and continuity.
The resolution for AC voltage measurements is 0.1mV.
The accuracy for DC current measurements is ±0.4 % of reading plus 2 digits.
The dimensions are 212mm in height, 100mm in length, and 55mm in width.
It has a battery life of up to 300 hours.
This model is safety rated to CAT II and CAT III, suitable for professional test environments.
Yes, it is IP64-rated for dust and water resistance.
It features a digital LCD display with LED backlight and a 42-segment bar graph for visual feedback.
It is battery-operated and allows for user-replaceable batteries accessed from a rear door.
