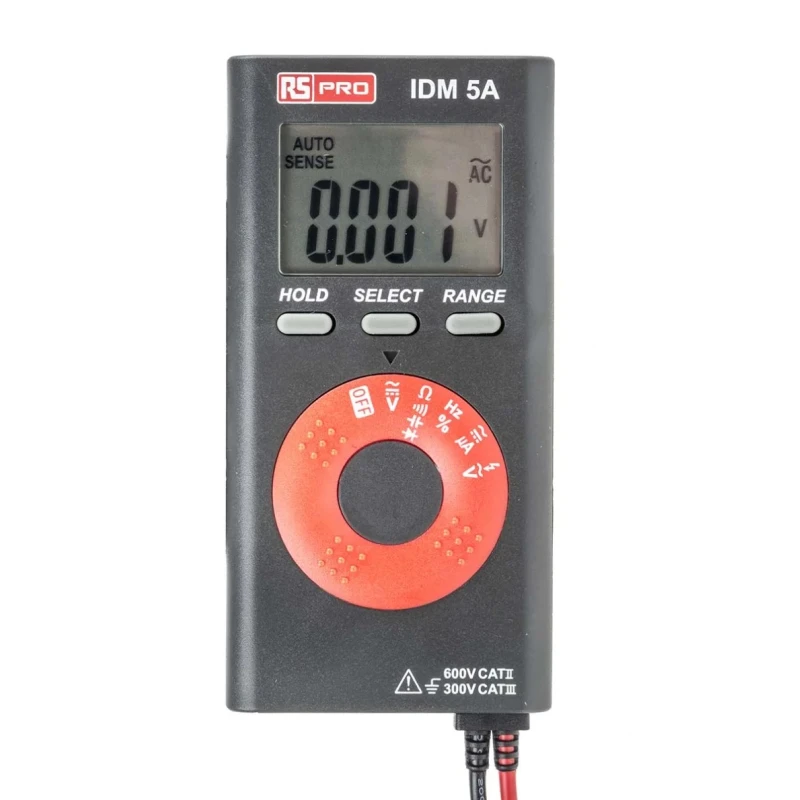

RS PRO Handheld Multimeter 600V DC 40kHz Frequency Measurement Functions IDM5A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery Life | 100h |
| Battery type | LR44 1.5 V |
| Height | 112mm |
| Length | 56mm |
| Model | IDM5A |
| Gross Weight | 100g |
| Width | 12mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 0.1mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±0.9 % rdg + 5 Digits |
| DC Voltage Resolution | 0.1 mV dc |
| Resistance Resolution | 100mΩ |
| AC Current Resolution | 0.1μA ac |
| DC Current Resolution | 0.1μA dc |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Diode Test, Frequency, Resistance, RMS, Temperature |
| Maximum DC Voltage Measurement | 600V dc |
| Maximum Frequency | 40kHz |
| Safety Category Level | CAT II, CAT III |
| Safety Category Voltage | 300, 600V |
| Volt Sense | Integral non-contact AC voltage detector with a Visual and audible indication |
| RND MultimeterBrand | RND |
Key Features
- Measures AC/DC voltage up to 600 V with 0.1 mV resolution.
- Measures AC/DC current with 0.1μA resolution and ±0.9% accuracy.
- Includes capacitance, frequency, diode test, and resistance measurement functions.
- Equipped with an integral non-contact AC voltage detector with visual and audible indication.
- Features a 4000 count LCD display with manual and auto-ranging modes.
- Automatic power-off for battery preservation and a low battery indicator.
- Enclosed in a protective wallet with stand and test lead storage for convenience.
- Ergonomic slim design for one-handed operation.
Product Description
RS PRO IDM5A handheld multimeter is a high-precision instrument designed for industrial, laboratory, and electrical testing applications. It supports multiple measurement functions including AC/DC voltage and current, resistance, capacitance, frequency, diode testing, and continuity checking. The device features a 4000 count LCD display that provides clear and accurate readings up to 600 V DC voltage and 40 kHz frequency measurement, enabling precise diagnostics in diverse environments.

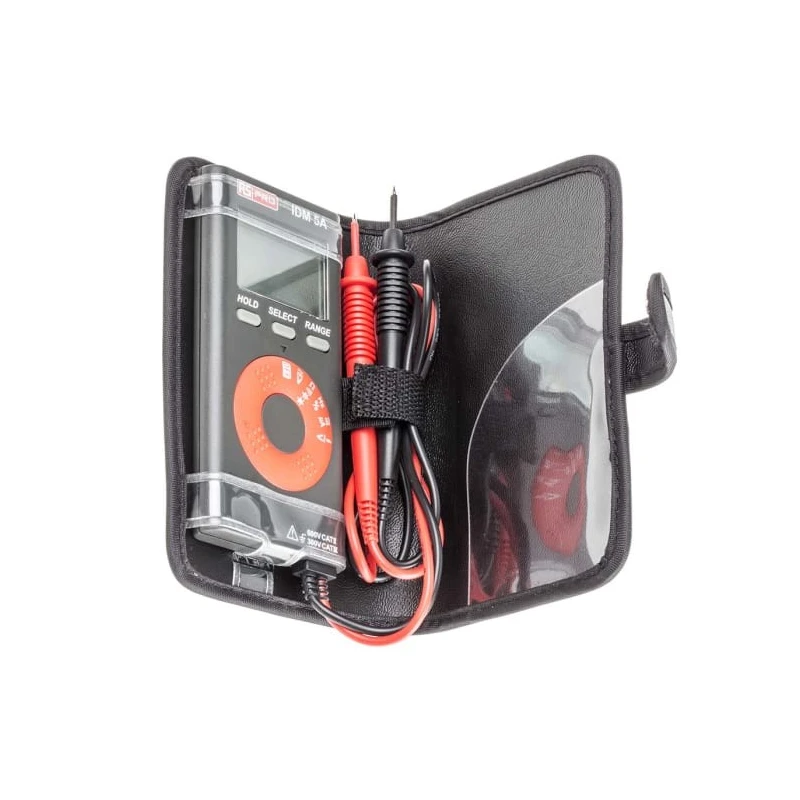

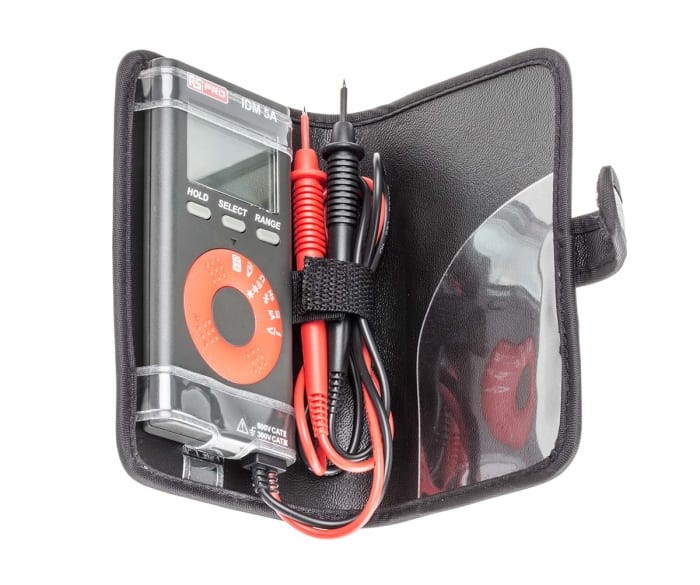

The multimeter integrates an integral non-contact AC voltage detector that offers both visual and audible indicators to enhance safety during live voltage detection without making direct contact. Its ergonomic slim shape fits comfortably in the palm, providing ease of one-handed operation, while the supplied protective wallet offers additional protection along with a built-in stand and convenient storage for test leads.
This device is powered by LR44 1.5 V batteries and offers a battery life of approximately 100 hours. It is equipped with features like manual and auto-ranging, display hold, and auto power-off to optimize user convenience and efficiency. Designed for durability and accurate measurements, the IDM5A complies with safety standards CAT II 600 V and CAT III 300 V according to EN61010-1.
Measures AC/DC voltage and current with high precision and resolution. Includes capacitance, frequency counter, diode testing, and continuity functions. Enabled with a non-contact AC voltage sensing feature for enhanced electrical safety.

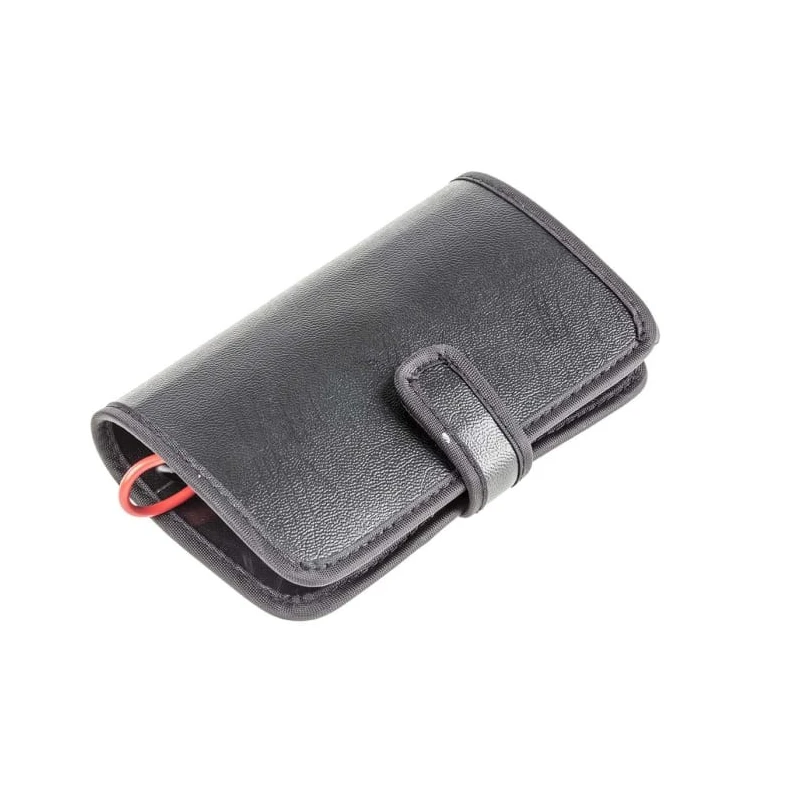

Supplied with a protective wallet with stand and test lead storage. Ergonomic and compact design for easy handling during quick service tasks. Long battery life with easy battery replacement without opening the bottom case.
This handheld multimeter is ideal for applications in industrial maintenance, electrical troubleshooting, HVAC, and laboratory testing. Its comprehensive features and rugged design provide reliable performance for technicians and engineers in the field and in controlled environments. Discover more high-quality measuring instruments in the EnvMart catalog.
Explore more products in our Digital Multimeter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC voltage measurement for this model is 600V DC.
It can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, diode testing, and continuity.
The resolution for AC voltage measurements is 0.1 mV.
The accuracy for DC current measurements is ±0.9% of reading plus 5 digits.
This multimeter can measure frequencies up to 40 kHz.
Yes, it is equipped with an integral non-contact AC voltage detector that provides visual and audible indications.
It features a 4000 count LCD display for clear and accurate readings.
The dimensions are 112mm in height, 56mm in length, and 12mm in width.
The battery life is approximately 100 hours, powered by LR44 1.5 V batteries.
It complies with safety category levels CAT II 600V and CAT III 300V according to EN61010-1.
The automatic power-off feature helps preserve battery life by turning off the device after a period of inactivity.
The resolution for resistance measurements is 100 mΩ.
