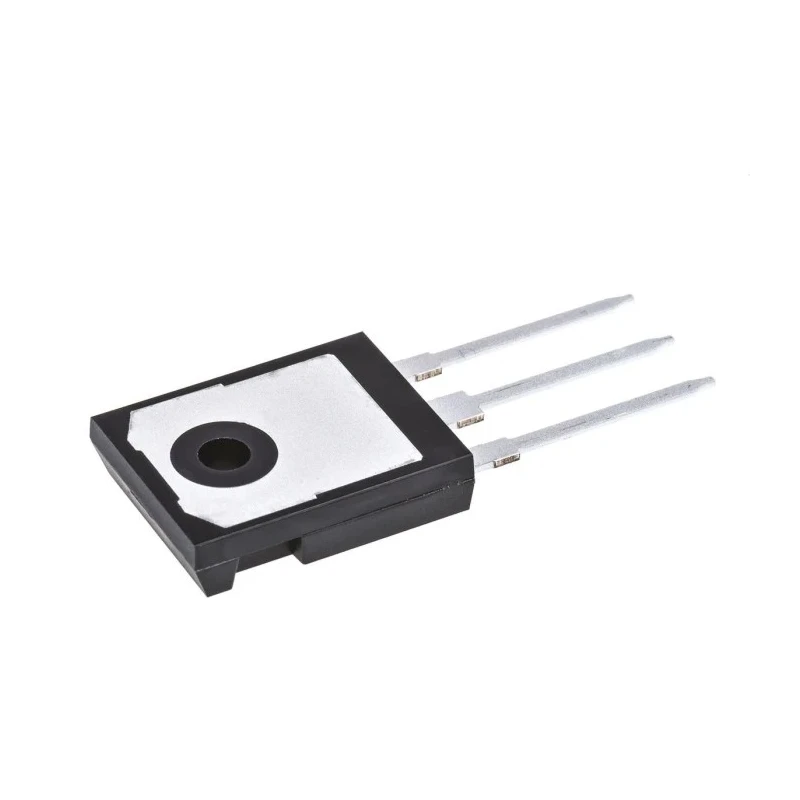

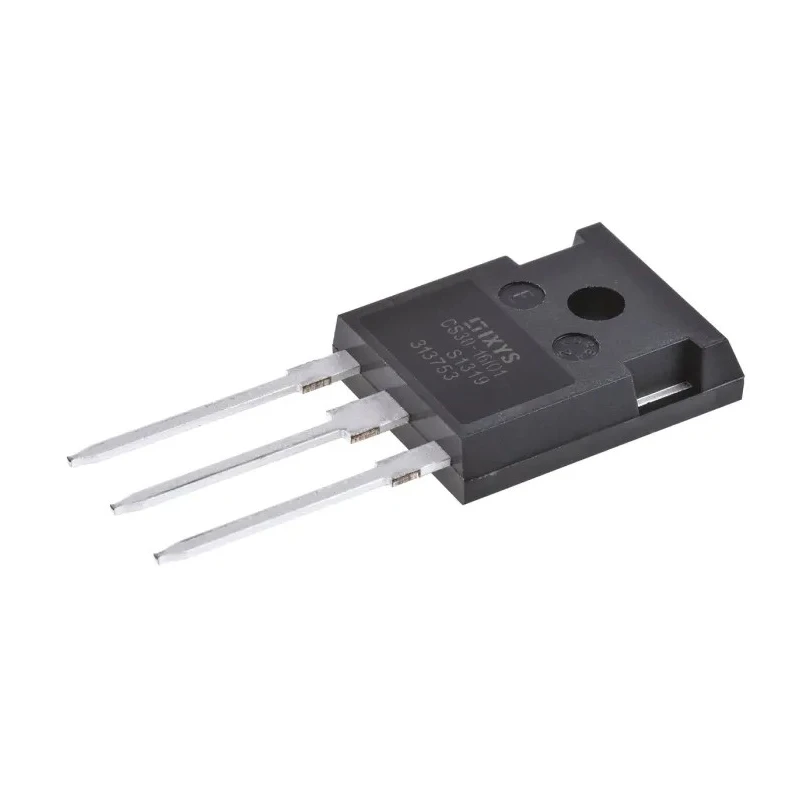

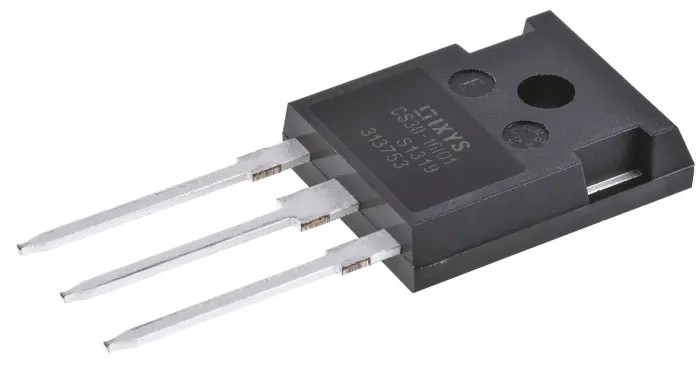

IXYS Thyristor SCR 1600 V 31 A 65 mA 320 A TO-247 Package CS30-16IO1

Free Delivery in India | Lowest Global Shipping Charges

IXYS Thyristor SCR 1600 V 31 A 65 mA 320 A TO-247 Package CS30-16IO1

Name: IXYS Thyristor SCR 1600 V 31 A 65 mA 320 A TO-247 Package CS30-16IO1
Brand: IXYS
SKU: 148510
Price: 20.22 USD
Availability: InStock



Category Thyristors Brand IXYS Condition New

Specifications

Country of Origin	India
Brand	IXYS
Model	CS30-16IO1
Mount Type	Through Hole
Maximum Operating Temperature	125°C
Package Type	TO-247
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	31A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1600V
Surge Current Rating	320A
Maximum Gate Trigger Current Igt	65mA
Maximum Holding Current Ih	100mA
Maximum Gate Trigger Voltage Vgt	1V
Peak On-State Voltage	1.6V
Repetitive Peak Off-State Current	2mA

Key Features

This SCR features a repetitive peak reverse voltage of 1600 V for high voltage tolerance.
It supports a rated average on-state current of 31 A for reliable conduction.
The device has a surge current rating of 320 A enabling it to handle high surge currents safely.
The maximum gate trigger current is 65 mA and maximum gate trigger voltage is 1 V for precise control.
Encapsulated in a TO-247 package with through-hole mounting for durable installation.
The thyristor operates over a wide temperature range from -40°C to 125°C.
Its three pins include gate, anode, and cathode connections.
This SCR does not have automotive certification but is suited for industrial power control.

Product Description

IXYS CS30-16IO1 Thyristor SCR rated at 1600 V and 31 A is a solid-state power semiconductor designed for controlled rectification and switching applications in electronic circuits. Its three-layer PNPN structure enables it to act as a bistable switch, conducting current upon gate trigger and maintaining conduction while forward biased.

Housed in a TO-247 package with through-hole mounting, this SCR provides reliable electrical isolation and robust mechanical strength suitable for industrial environments. The device supports a repetitive peak reverse voltage of 1600 V and a surge current rating of 320 A, making it suitable for applications requiring high voltage and current handling capabilities.

The maximum gate trigger current of 65 mA and maximum gate trigger voltage of 1 V ensure precise and efficient triggering, while the maximum holding current of 100 mA guarantees stable switch-off characteristics. Operating temperature ranges from -40°C to 125°C enable use in harsh and variable temperature conditions.

Typical applications include phase control in battery chargers, welding machines, power supplies, and motor speed controllers. The device is designed for industrial use where controlled power switching enhances operational efficiency and safety.

This thyristor provides excellent performance in power regulation and switching applications. The TO-247 package facilitates efficient heat dissipation and sturdy mounting options. Operation across a broad temperature range makes it reliable in demanding environments.

The device's robust surge current rating allows handling of transient overloads safely. Suitable for industrial, manufacturing, and power electronics applications. Explore similar IXYS power semiconductor components in the Semiconductor and Power Electronics category at EnvMart for comprehensive solutions.
