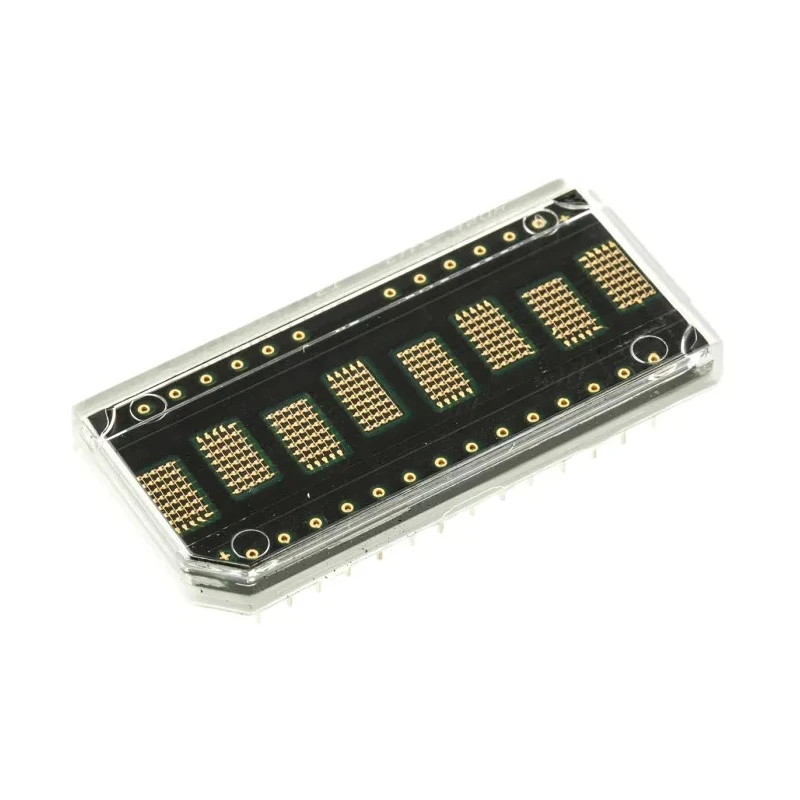

Broadcom 8 Dot Matrix LED Display Green 7.5mcd 4.8mm HDSP-2113

Broadcom HDSP-2113 is a high-quality 8 Dot Matrix LED Display designed for industrial and electronic applications, featuring green LEDs with a luminous intensity of 7.5mcd and character height of 4.8mm. This alphanumeric display uses a 5x7 dot matrix layout to offer precise and programmable visual output.

The display packs 8 characters with 5 segments each, allowing detailed and versatile data presentation. It incorporates a black face and through-hole mount type for secure integration in electronic modules. The external size of the display is compact with a width of 42.6mm, height 19.6mm, and depth 5.3mm.

Engineered to operate in harsh environments, the display tolerates a wide temperature range from -45°C to 85°C. It requires a forward voltage of 5.5V and draws a forward current of 300mA for optimal brightness and power efficiency.

This display belongs to the HDSP-210x series and supports a microprocessor bus interface, multi-level dimming, blanking, and is programmable for custom characters including 16 user-definable characters and a 128 ASCII character set.

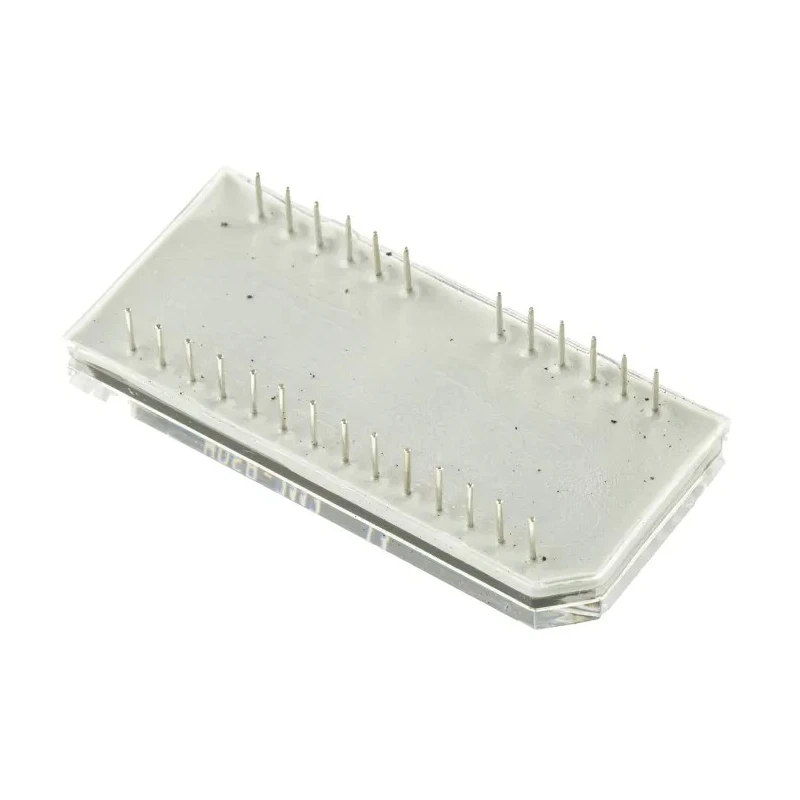

8-digit, 5x7 dot matrix alphanumeric display. Green LED color with 574nm dominant wavelength and 7.5mcd luminous intensity. Robust operation between -45°C and 85°C ambient temperature. Standard 28-pin dual in-line (d.i.l.) package through-hole mount.

Programmable with microprocessor bus interface, multi-level dimming, and blanking. Suited for industrial instrumentation, telecommunications, medical equipment, and portable data entry devices. Conforms to UL 1577, RoHS, CSA, IEC/EN/DIN EN 60747-5-5 standards.

This LED display module is ideal for applications requiring reliable and visible alphanumeric output in demanding environments. Explore more electronics components and LED Displays on EnvMart for your industrial and test equipment needs.
