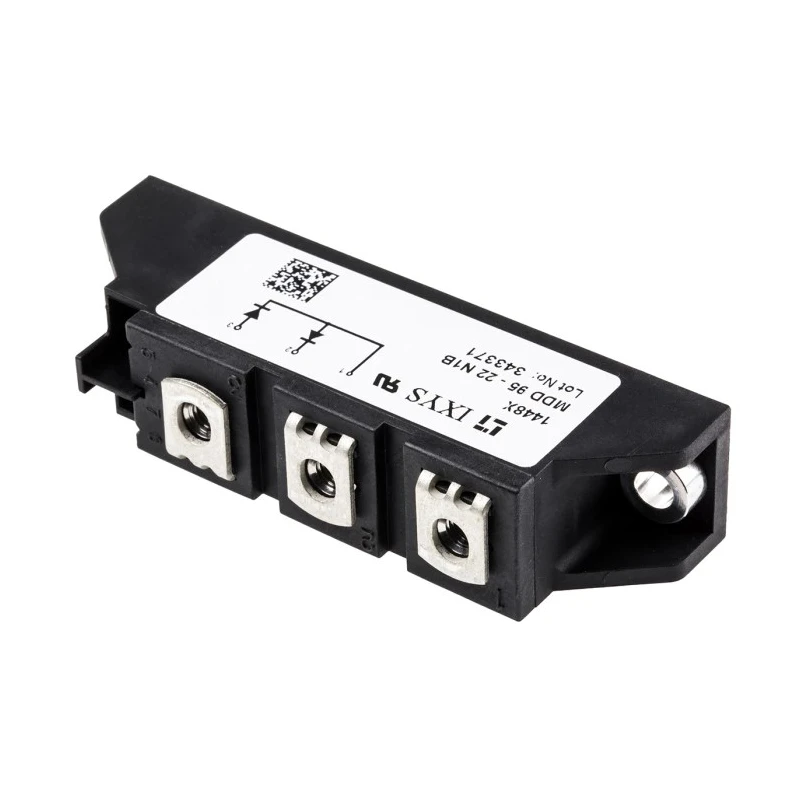

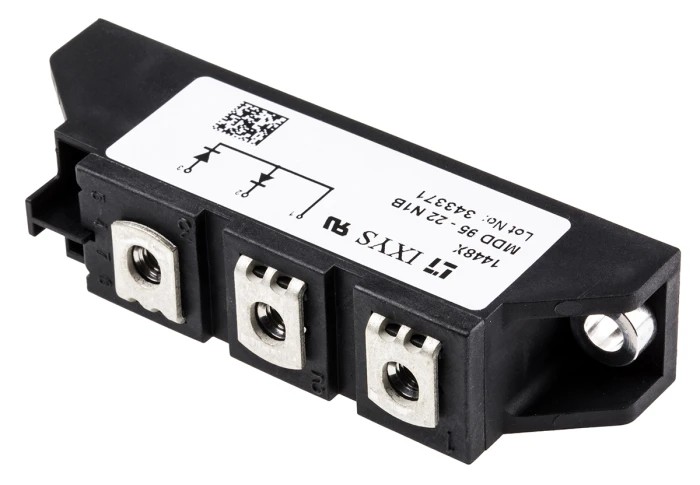

IXYS High Voltage 2200 V 120 A Diode Panel Mount TO-240 Package 3-Pin MDD95-22N1B

The IXYS MDD95-22N1B is a high voltage diode designed for industrial and power electronics applications. Featuring a robust panel mount TO-240 package with 3 pins, it offers a maximum continuous forward current of 120 A and a high peak reverse repetitive voltage capability of 2200 V. This diode's maximum forward voltage of 1.43 V supports efficient current conduction minimizing losses.

Constructed for durability, it operates reliably within a wide temperature range from -40°C to 150°C, suitable for challenging environments. The 3-pin series diode configuration and panel mount design simplify integration into power rectifiers and voltage control systems.

Its peak non-repetitive forward surge current of 3.03 kA allows it to withstand transient current spikes typical in industrial power equipment. Compact dimensions of 92 mm length, 30 mm height, and 20.8 mm width facilitate fitting in constrained assemblies.

As a UL recognised component, the MDD95-22N1B complies with safety and quality standards, making it trustworthy for use in laboratory, industrial manufacturing, power supply units, and electrical control systems.

The diode features a maximum forward voltage of 1.43 V for efficient conduction. It supports a peak non-repetitive forward surge current of 3.03 kA for transient loads. Operating temperature ranges from -40°C to 150°C ensuring robust thermal performance.

Designed with a series diode configuration and 3-pin TO-240 package for industrial applications. Peak reverse repetitive voltage of 2200 V enables high voltage blocking capacity. The device has a compact form factor with dimensions 92 mm length, 30 mm height, and 20.8 mm width.

It is a UL recognised component but does not have further approvals or automotive standards. Ideal for power rectification and high voltage electronic circuits in industrial systems.

This IXYS diode is suitable for electrical engineers and technicians involved in power conversion, rectification, and protection circuitry across sectors like industrial automation, power generation, and research laboratories. Browse related semiconductor and diode products for comprehensive solutions on EnvMart.
