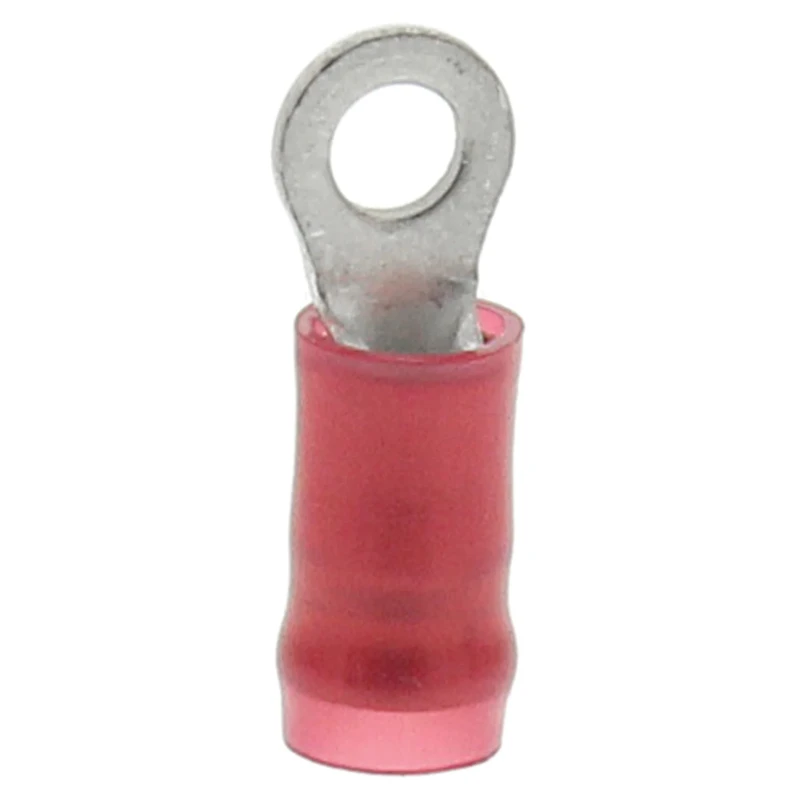

TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size 22 AWG 16 AWG Wire Size Red 31880
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 31880 |
| Insulation | Insulated |
| Overall Length | 17.07mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.02mm |
| Stud Size | M2.5 |
Key Features
- Constructed with high conductivity copper for reliable electrical contact.
- Features a copper sleeve providing enhanced wire insulation support and preventing fraying.
- Includes serrations in the wire barrel for maximum contact and tensile strength after crimping.
- The funnelled wire entry allows for rapid and reliable wire insertion during production.
- Color-coded red nylon sleeve simplifies wire size and tooling identification.
- Suitable for industrial, aerospace, automotive, motor, panel box, and appliance wiring applications.
- Designed to meet or exceed MIL-T-7928, Type II, Class 1 and 2 standards.
Product Description
TE Connectivity 31880 PIDG Insulated Ring Terminal with M2.5 stud size is engineered for use with wire sizes ranging from 22 AWG to 16 AWG. It features a high conductivity copper contact material with tin plating to ensure excellent electrical conduction and corrosion resistance. The terminal’s red nylon insulation sleeve provides color-coded wire size identification and durability.
The unique PIDG (Pre-Insulated Diamond Grip) design incorporates serrations inside the copper wire barrel to maximize tensile strength and contact reliability after crimping. A copper sleeve within the insulation enhances wire retention and prevents fraying during termination. The funnelled entry design facilitates fast and consistent wire insertion, supporting high-speed manufacturing processes.
This Ring Terminal is suitable for a wide range of industrial applications such as instrumentation, control panels, power supplies, lighting systems, transportation, lifting equipment, motors, and aerospace wiring. Many of these terminals comply with or exceed MIL-T-7928, Type II, Class 1 and 2 standards, ensuring reliable performance in challenging environments.
High conductivity copper body ensures excellent electrical performance. Copper sleeve improves insulation support and wire retention. Serrated wire barrel enhances tensile strength after crimping. Color-coded red nylon insulation for easy identification.
Funnelled wire entry enables rapid wire insertion during production. Designed for wire sizes 22 AWG to 16 AWG and M2.5 stud size. Suitable for multiple industrial and aerospace applications.
Package does not include additional tools or wire. Ideal for assembly, maintenance, and repair in electrical and electronic industries. Discover more TE Connectivity products and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for wire sizes ranging from 22 AWG to 16 AWG.
The stud size for this terminal is M2.5.
It features a contact material made of high conductivity copper with tin plating, and an insulation material of nylon.
The terminal includes a copper sleeve within the insulation that improves wire retention and prevents fraying during termination.
The maximum operating temperature for this insulated ring terminal is 105°C.
The overall length of this model is 17.07 mm.
The serrated wire barrel maximizes tensile strength and contact reliability after crimping, enhancing overall performance.
The nylon insulation is color-coded red for easy identification of wire size.
It is designed to meet or exceed MIL-T-7928, Type II, Class 1 and 2 standards.
This terminal is suitable for various applications including industrial, aerospace, automotive, and appliance wiring.
The inner ring diameter is 3.02 mm and the outer ring diameter is 5.54 mm.
No, the package does not include any additional tools or wire.
