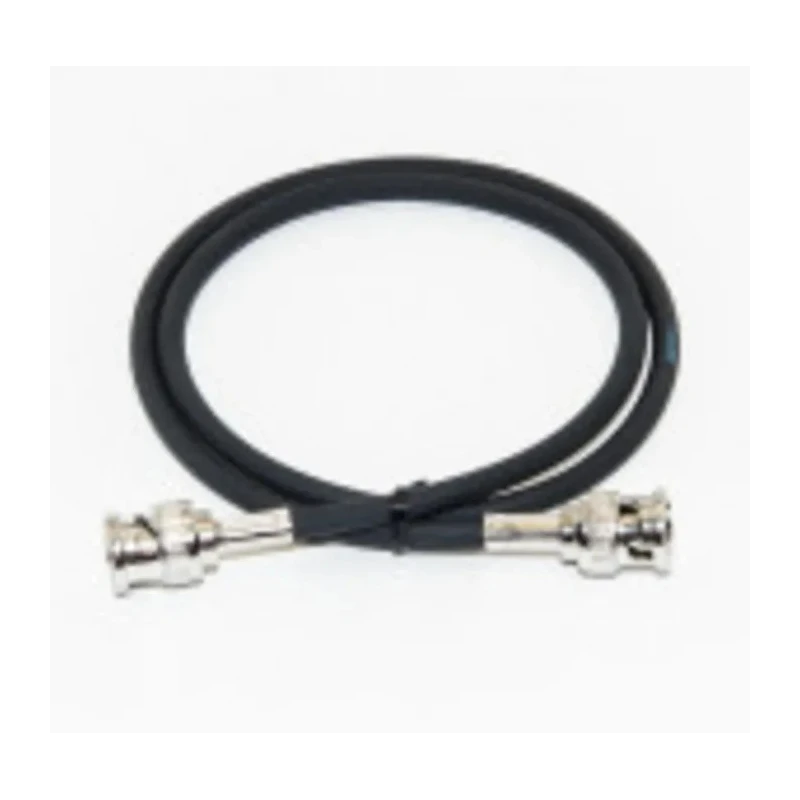

Mueller Electric BNC Test Lead 500V AC 0.9 m Lead Length BU-P5697-36
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V ac |
| Brand | Mueller Electric |
| Operating Temperature | -40⁰C to 85⁰C |
| Model | BU-P5697-36 |
| Cable | Cable is RG 58C/U |
| Maximum Operating Temperature | 85°C |
| Insulation Material | Polytetrafluoroethylene |
| Minimum Operating Temperature | -40°C |
| Lead Length | 0.9m |
| Ratings | Impedance: 50 Ohms |
| Standards/Approvals | RoHS, CE |
| Connector Gender A | Male |
| Connector Orientation A | Straight |
| Test Lead Type | BNC Test Lead |
| Male BNC | Body is tarnish resistant nickel plated brass |
| Capacitance per foot | 30.8 pf |
Key Features
- Constructed with RG 58C/U coaxial cable and non-contaminating PVC jacket.
- Features comprehensive operating temperature range from -40°C to 85°C.
- Male BNC connectors are tarnish resistant nickel plated brass with gold plated center contacts.
- Designed with 50 Ohm impedance and capacitance of 30.8 pF per foot.
- Suitable for hands-free testing up to 500 VRMS voltage.
- Complies with RoHS and CE standards ensuring electrical safety.
- Durable insulation made from polytetrafluoroethylene for enhanced reliability.
Product Description
Mueller Electric BU-P5697-36 BNC Test Lead is a premium quality test lead designed for reliable electrical testing in industrial and laboratory environments. Featuring a 0.9 meter length and rated for 500V AC, this test lead ensures safe and accurate measurements.
The cable is constructed using RG 58C/U coaxial design with a non-contaminating PVC jacket to provide excellent electrical insulation and durability. The center conductor is 20 AWG composed of tinned copper strands, delivering effective conductivity. The shield is a tinned copper braid offering 95% coverage for optimal EMI protection.
Both ends of the test lead are fitted with straight male BNC connectors constructed from tarnish resistant nickel plated brass, with gold plated center contacts and polytetrafluoroethylene insulators. This design provides longevity and stable signal transmission.
Operating temperature ranges from -40°C to 85°C, making it suitable for harsh industrial conditions. The impedance is matched at 50 Ohms and capacitance is 30.8 pF per foot, ensuring signal integrity during measurements. It supports hands-free testing to 500 VRMS voltage.
This test lead complies with RoHS and CE standards, confirming adherence to safety and environmental regulations. Constructed with RG 58C/U coaxial cable and PVC jacket for durability. Features male straight BNC connectors with gold plating for superior conductivity.
Supports operating temperatures from -40°C to 85°C. Matched impedance of 50 Ohms for reliable signal transmission. Capacitance of 30.8 pF per foot minimizes signal loss. Rated for hands-free testing up to 500 VRMS. Certified compliant with RoHS and CE standards.
This BNC test lead is essential for professionals in electrical testing, industrial maintenance, laboratory analysis, and HVAC diagnostics. Its robust construction and technical specifications make it ideal for ensuring accurate and safe electrical measurements in various sectors.
Explore more Test Leads and measuring instruments at EnvMart to complete your electrical testing toolkit.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Mueller Electric BNC Test Lead is rated for a maximum voltage of 500V AC, making it suitable for hands-free testing applications.
This test lead has a length of 0.9 meters, providing flexibility for various testing scenarios.
The cable is constructed using RG 58C/U coaxial design, which ensures excellent electrical insulation and durability.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
The impedance of this model is matched at 50 Ohms, which is crucial for reliable signal transmission during measurements.
The male BNC connectors are made from tarnish resistant nickel plated brass, with gold plated center contacts for improved conductivity.
The capacitance of this model is 30.8 pF per foot, which helps minimize signal loss during testing.
Yes, it complies with RoHS and CE standards, ensuring adherence to safety and environmental regulations.
The insulation material is polytetrafluoroethylene, which enhances the reliability of the test lead.
This test lead is suitable for electrical testing in industrial maintenance, laboratory analysis, and HVAC diagnostics.
The connector orientation is straight, which facilitates easy connection in various testing setups.
The country of origin for this product is China.
